$1,399.00/Each
Discounted shipping with PlusEarn up to $41.97 back (4,197 points)with a Webstaurant Rewards Visa® Credit Card
Size: 4" x 40'
Product Overview
- Contains enclosed, factory-tuned, cartridge-style spring motor with a stainless steel spring
- Steel construction is heavy-duty and professional grade
- Designed to extract exhaust fumes directly from their source to maintain safer air quality
- Ribbed discs and rolled edges provide safety and durability
- Multi-position lock ratchet mechanism allows you to secure the hose at preferred length
- Quantity
- 1/Each
- Shipping Weight
- 190 lb.
- Length
- 24 Inches
- Width
- 28 1/4 Inches
- Height
- 29 1/2 Inches
- Base Length
- 14 Inches
- Base Width
- 23 1/4 Inches
- Application
- Exhaust Removal
- Features
- Made in America Rust-Resistant
- Material
- Steel
- Mounting Style
- Deck Mounted Side Mounted
- Return Style
- Retractable
- Style
- Enclosed
- Type
- Reels

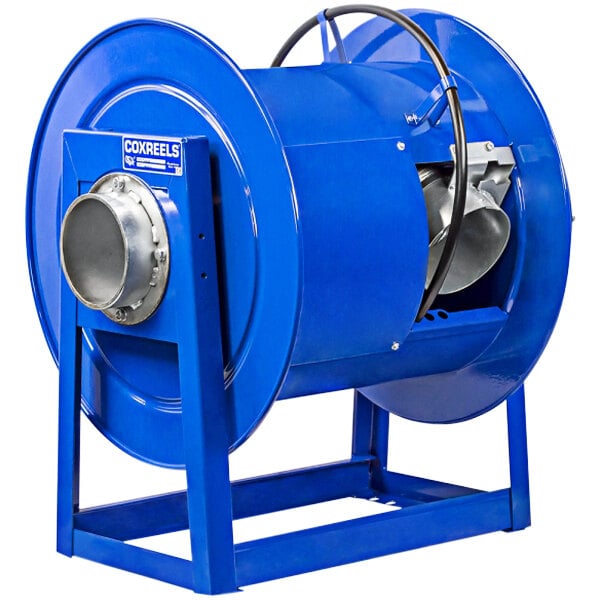

Coxreels 328-440 Details
Outfit your business with Coxreels 328-440 300 Series 4" x 40' exhaust extraction reel. Constructed with high quality, heavy-duty steel, this reel is extremely reliable. Its frame is made with all welded steel and no bolts, giving it superior strength and durability. It uses CNC robotically spun discs that allow greater durability. The ribbed discs and rolled edges provide convenient safety on top of its impressive strength. The CPC powder-coat finish is chip-resistant and long lasting, making it ideal for heavy use in industrial settings. This unit was designed to extract exhaust fumes directly from their source to maintain safer air quality. The drum provides an easy access panel for convenient maintenance. It features a hose guide that is drum mounted and a hose guide rail. It also includes internal ducting.
This reel is built with versatility in mind, as it contains an enclosed, factory-tuned, cartridge-style spring motor with a stainless steel spring. This makes the motor long-lasting, rust-resistant, and ensures that it is easily accessible. This cartridge-style motor is easily removable, making maintenance safe and simple. The reel also features a multi-position lock ratchet mechanism that allows you to secure the hose at your preferred length so you're able to service every area of your workstation without compromising on location. The lock ring is cast iron and has a non-sparking bronze pawl. This unit fits 4-6" exhaust ductwork, meaning ductwork does not need to be fitted per reel. This unit is for floor, wall, and overhead mounting applications.
Overall Dimensions:
Length: 24"
Width: 28 1/4"
Height: 29 1/2"
Base Dimensions:
Length: 14"
Width: 23 1/4"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Customer questions about this product
What do I need to know before mounting this hose reel to the ceiling?
Made in America
This item was made in the United States of America.
Resources and Downloads for
Coxreels 328-440
A PDF viewer is required to view this product's information. Download Adobe Acrobat software
Warranty Info
2 year warranty except any included hoses which are under warranty for 90 days.
