Quantity Discounts

$109.99/Each

Ships free with Plus
$105.02/Each

Usually Ships in 2-3 Business Days from manufacturer

Lead times vary based on manufacturer stock

Not eligible for expedited shipping

Product Overview

  • Single face design with bright, easy-to-read LED lettering
  • 4.8V long life, maintenance free, rechargeable NiCad battery backup for 90 minutes of illumination
  • Aluminum mounting canopy for top or end mount; universal knockout pattern for wall mount
  • Premium grade black powder coated housing; field selectable chevron directional indicators
  • 120/277V dual voltage
UPC Code:400013522689

CLS 02-XAGBB-B1 Specs

Quantity
1/Each
Shipping Weight
20 lb.
Width
12 5/8 Inches
Depth
2 Inches
Height
8 3/8 Inches
Voltage
120/277 Volts
Battery Life
90 Minutes
Battery Type
NiCad Battery  Rechargeable
Color
Black
DC Voltage
4.8 Volts
Face Plate Color
Black
Features
1 Number of Face  Battery Backup  Directional Chevron  LED Lighting
Housing Color
Black
Housing Type
Aluminum
Language
English
Lettering Color
Green
Plug Type
Hardwire
Ratings
NFPA Compliant  UL
Type
Exit Signs

CLS 02-XAGBB-B1 Details

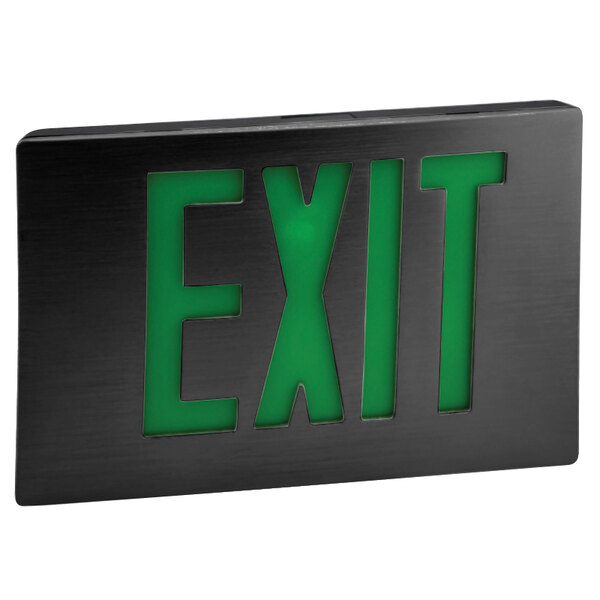

Be prepared with this CLS 02-XAGBB-B1 single face die cast black exit sign with green lettering and a battery backup! This unit uses bright, energy-efficient LEDs to illuminate the exit sign. Plus, it comes with a battery backup so that even if the power goes out your emergency exits will still be clearly visible.

Ultra-bright, energy efficient, long-life colored LED lights illuminate the word "EXIT" on the sign's face. There is an internal solid state transfer switch that automatically connects the internal battery to the LED lights for a minimum of 90 minutes of emergency illumination.

To make sure that the light keeps working even when the power is out, this unit comes with an 4.8V long-life, maintenance-free, rechargeable NiCad battery. Inside the unit is a fully automatic charger that keeps the battery charged and ready to use. After the battery is discharged, the charger will ensure that it is completely recharged in 24 hours. Plus, there is a charge rate and power on LED indicator light with a test button on the unit so that you can periodically check that it is functioning properly.

This exit sign features a premium black die-cast housing made of durable powder-coated aluminum with a quick-snap face plate closure. An aluminum canopy is included for use in cases where the sign needs to be top or end mounted while the universal knockout pattern on the back plate allows for wall mounting. Plus, the unit features in-the-field knockout chevron directional indicators so that you can choose which way you want the sign to point.

This unit requires a 120/277V electrical connection for operation and is approved for use in damp locations. This unit's overall input wattage is 3.8W for a 120V connection or 4.4W for a 277V connection.

Overall Dimensions:
Width: 12 5/8"
Depth: 2"
Depth (with canopy): 4 5/16"
Height: 8 3/8"
Height (with canopy): 9"

Due to US DOT shipping regulations, we are unable to ship this product to Alaska, Hawaii, and international destinations. It is also ineligible for next day or second day shipping and cannot be returned. Please contact Customer Solutions prior to placing your order if you have any questions or concerns.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Attention CA Residents

WARNING:This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.p65warnings.ca.gov.

  • Hardwired

    Hardwired

    This product must be hardwired by a professional; it does not plug into a standard wall outlet.

  • UL Listed, US

    UL Listed, US

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States.
