Product Overview

  • 5 1/4" rigid / swing gooseneck spout with 1.5 GPM aerator outlet
  • 4" wristblade handles with color-coded index
  • Deck mounting allows for quick and easy installation
  • High-quality, polished chrome finish
  • 1/2" NPSM supply inlets
UPC Code:611943578961

Chicago Faucet Company W8D-GN2AE35-317AB Specs

Quantity
1/Each
Shipping Weight
3.56 lb.
Spout Length
5 3/8 Inches
Faucet Width
16 Inches
Faucet Height
10 3/4 Inches
Cartridge Type
Ceramic
Faucet Centers
8 Inches
Finish
Chrome
Flow Rate
1.5 GPM
Handle Type
Wrist
Material
Brass
Mounting Style
Deck Mounted
Mounting Type
Workboard
Pressure Rating
20 - 125 PSI
Rough In
8 Inches
Spout Clearance
6 3/4 Inches
Spout Type
Gooseneck
Sprayer
Without Sprayer
Temperature Rating
40 - 140 Degrees F
Type
Faucets
Water Inlet Size
1/2 Inches

Chicago Faucet Company W8D-GN2AE35-317AB Details

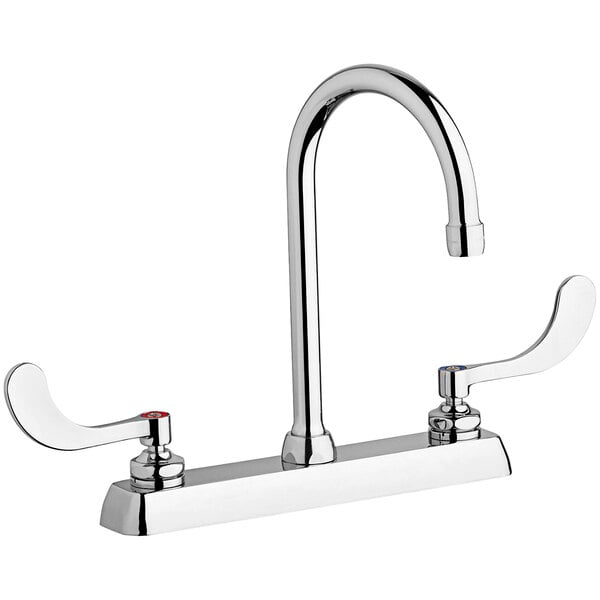

Ensure your facility has a dependable water fixture by outfitting your sink with this Chicago Faucets W8D-GN2AE35-317AB deck-mounted manual sink faucet. Featuring a 5 1/4" rigid / swing gooseneck spout, this item provides plenty of space for hand washing and other cleaning. It comes with a 1.5 GPM pressure compensating Softflo aerator that regulates water flow, making it an excellent choice when you need a reliable, affordable water fixture for your facility! The faucet includes 4" wristblade handles with a color-coded hot and cold index to make it easy to maintain a comfortable water temperature without any confusion.

Developed with the utmost convenience in mind, the deck-mounted design is easy to install and simple to maintain. The faucet installs directly on your sink deck or countertop with a pair of 8" centers to allow it to match your mounting surface with ease. It connects to the water lines with a set of 1/2" NPSM inlets. Able to withstand daily wear and tear, trust this eye-catching, polished chrome faucet to get the job done right!

Overall Dimensions:
Spout Length: 5 3/8"
Faucet Height: 10 3/4"
Faucet Width: 16"

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Customer questions about this product

What measurements do I need to install a faucet?

When installing a faucet, these are some of the most common measurements you’ll need:

Faucet Centers: If your faucet has a base with 2 inlets, measure the distance from the center of one inlet to the center of the other. This number must match the spacing of your building’s water lines (adjustable centers will help with the spacing). If mounting through the backsplash on a sink, the center measurement must also fit within the pre-drilled mounting holes.

Flex Hoses: If your faucet has flex hoses make sure that they will reach your building’s water lines.

Spout length: Make sure that the faucet spout will fit comfortably over your sink bowl and not extend too far / not far enough. If you plan to use a swing spout over a multi-bowl sink, make sure it will reach all of the bowls.
Ask your own question!
  • ICC-ES ASME A112.18.1/CSA B125.1

    ICC-ES ASME A112.18.1/CSA B125.1

    This item has been tested by the ICC-ES to meet ASME A112.18.1/CSA B125.1 standards for plumbing fittings and fixtures.

  • EPA WaterSense

    EPA WaterSense

    This item is certified by the EPA's WaterSense program to meet its standards for water use. WaterSense-labeled products are certified to use at least 20 percent less water, save energy, and perform as well as or better than regular models.

  • ICC-ES Drinking Water NSF/ANSI 61, Section 9

    ICC-ES Drinking Water NSF/ANSI 61, Section 9

    This item has been tested by the ICC-ES to meet NSF/ANSI 61, Section 9 standards for drinking water.

  • ICC-ES Low Lead NSF/ANSI 372

    ICC-ES Low Lead NSF/ANSI 372

    This item has been tested by the ICC-ES to meet NSF/ANSI 372 standards for drinking water lead content.

  • ADA Compliant

    ADA Compliant

    This item meets criteria established by the Americans with Disabilities Act (ADA).

  • CalGreen Compliant

    CalGreen Compliant

    This product is compliant with California's CalGreen Green Building Standards Code.

  • U.S. Green Building Council (USGBC)

    U.S. Green Building Council (USGBC)

    This company is a certified USGBC member. The USGBC is an organization that promotes sustainable building practices, including saving energy, using fewer resources, and reducing waste.

  • 1/2" Water Connection

    1/2" Water Connection

    This unit comes with a 1/2" water connection for water supply.
