Product Overview

  • Durable, cast brass construction and polished chrome finish
  • Stylish 6 1/4" rigid / swing gooseneck spout
  • Quixtop outlet with a single screen design that releases a full flow of water
  • Control water flow and prevent leaks with the ceramic 1/4-turn operating cartridge
  • Vandal-proof 4” wristblade handles are color coded for easy identification
UPC Code:611943546113

Chicago Faucet Company W8D-DB6AE1-317ABCP Specs

Quantity
1/Each
Shipping Weight
3.42 lb.
Spout Length
6 1/4 Inches
Faucet Width
16 Inches
Faucet Height
7 3/8 Inches
Cartridge Type
Ceramic
Faucet Centers
8 Inches
Finish
Chrome
Flow Rate
12 GPM
Handle Type
Wrist
Material
Brass
Mounting Style
Deck Mounted
Mounting Type
Workboard
Pressure Rating
20 - 125 PSI
Rough In
8 Inches
Spout Clearance
3 7/8 Inches
Spout Type
Swing
Sprayer
Without Sprayer
Temperature Rating
40 - 140 Degrees F
Type
Faucets
Water Inlet Size
1/2 Inches

Chicago Faucet Company W8D-DB6AE1-317ABCP Details

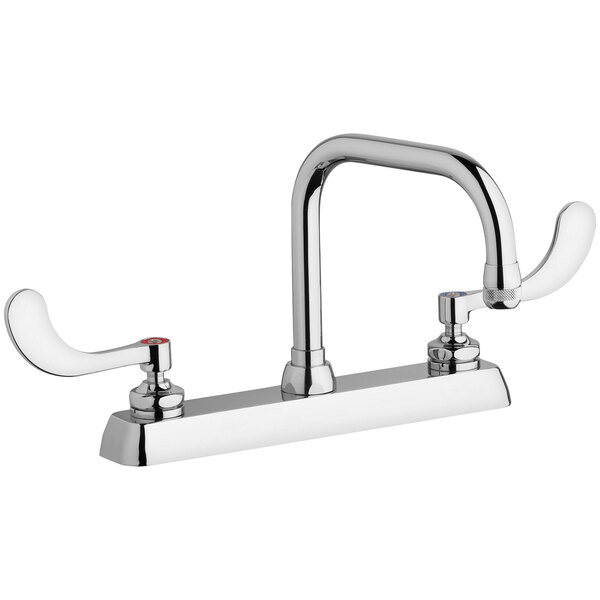

Optimize water efficiency and regulate usage by outfitting your sink with this Chicago Faucets deck-mounted faucet with 8" centers and 6 1/4" rigid / swing gooseneck spout. Designed with a 6 1/4" rigid / swing gooseneck spout, this faucet combines functionality with style. This unit is equipped with a Quixtop outlet with a single screen design that releases a full flow of water. With its durable, cast brass construction and polished chrome finish, this faucet has a total lead content of less than or equal to 0.25% for your safety.

It boasts 8" fixed centers that allow it to match the centers on your sink or mounting surface with ease. Control water flow and prevent leaks with the help of the ceramic 1/4-turn operating cartridge. The hot and cold, vandal-proof 4" wristblade handles are color coded for easy identification. Prevent water pollution with the help of the 1/2" NPSM supply inlets. The deck-mounted design makes this model easy to install.

Overall Dimensions:
Spout Length: 6 1/4"
Faucet Height: 7 3/8"
Faucet Width: 16"

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Customer questions about this product

What measurements do I need to install a faucet?

When installing a faucet, these are some of the most common measurements you’ll need:

Faucet Centers: If your faucet has a base with 2 inlets, measure the distance from the center of one inlet to the center of the other. This number must match the spacing of your building’s water lines (adjustable centers will help with the spacing). If mounting through the backsplash on a sink, the center measurement must also fit within the pre-drilled mounting holes.

Flex Hoses: If your faucet has flex hoses make sure that they will reach your building’s water lines.

Spout length: Make sure that the faucet spout will fit comfortably over your sink bowl and not extend too far / not far enough. If you plan to use a swing spout over a multi-bowl sink, make sure it will reach all of the bowls.
Ask your own question!
  • U.S. Green Building Council (USGBC)

    U.S. Green Building Council (USGBC)

    This company is a certified USGBC member. The USGBC is an organization that promotes sustainable building practices, including saving energy, using fewer resources, and reducing waste.

  • ICC-ES ASME A112.18.1/CSA B125.1

    ICC-ES ASME A112.18.1/CSA B125.1

    This item has been tested by the ICC-ES to meet ASME A112.18.1/CSA B125.1 standards for plumbing fittings and fixtures.

  • ICC-ES Low Lead NSF/ANSI 372

    ICC-ES Low Lead NSF/ANSI 372

    This item has been tested by the ICC-ES to meet NSF/ANSI 372 standards for drinking water lead content.

  • ICC-ES Drinking Water NSF/ANSI 61, Section 9

    ICC-ES Drinking Water NSF/ANSI 61, Section 9

    This item has been tested by the ICC-ES to meet NSF/ANSI 61, Section 9 standards for drinking water.

  • 1/2" Water Connection

    1/2" Water Connection

    This unit comes with a 1/2" water connection for water supply.
