Product Overview

  • Durable, cast brass construction and polished chrome finish
  • Stylish 3 5/8" gooseneck spout
  • Pressure compensating, Softflo aerator releases a soft, non-splashing flow of water at 1.5 GPM
  • Hot and cold, vandal-proof 4” wristblade handles are color-coded for easy identification
  • Control water flow and prevent leaks with the help of the ceramic 1/4-turn operating cartridges
UPC Code:611943578879
View all Chicago Faucet Company Wall Mount Faucets

Chicago Faucet Company W4W-GN1AE35-317AB Specs

Quantity
1/Each
Shipping Weight
3.24 lb.
Spout Length
3 5/8 Inches
Faucet Width
12 Inches
Faucet Height
9 Inches
Cartridge Type
Ceramic
Faucet Centers
4 Inches
Finish
Chrome
Flow Rate
1.5 GPM
Handle Type
Wrist
Material
Brass
Mounting Style
Wall Mounted
Mounting Type
Workboard
Pressure Rating
125 PSI
Spout Clearance
6 1/4 Inches
Spout Type
Gooseneck
Temperature Rating
140 Degrees Fahrenheit
Type
Faucets
Water Inlet Size
1/2 Inches

Customer questions about this product

What measurements do I need to install a faucet?

When installing a faucet, these are some of the most common measurements you’ll need:

Faucet Centers: If your faucet has a base with 2 inlets, measure the distance from the center of one inlet to the center of the other. This number must match the spacing of your building’s water lines (adjustable centers will help with the spacing). If mounting through the backsplash on a sink, the center measurement must also fit within the pre-drilled mounting holes.

Flex Hoses: If your faucet has flex hoses make sure that they will reach your building’s water lines.

Spout length: Make sure that the faucet spout will fit comfortably over your sink bowl and not extend too far / not far enough. If you plan to use a swing spout over a multi-bowl sink, make sure it will reach all of the bowls.

Ask your own question!

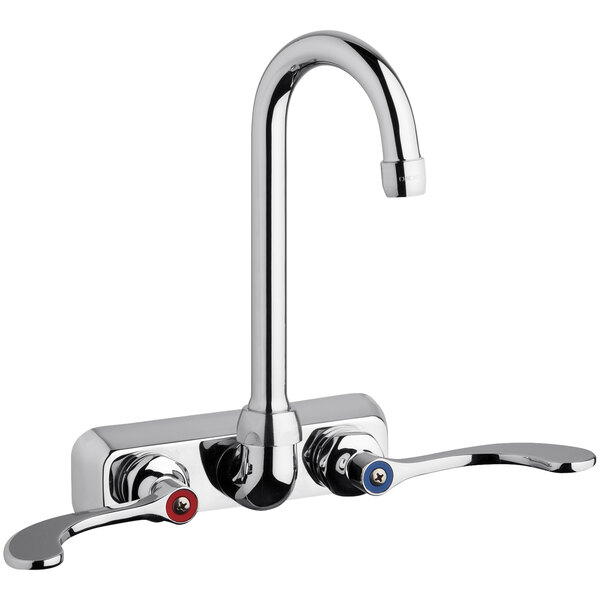

Chicago Faucet Company W4W-GN1AE35-317AB Details

Optimize water efficiency and regulate usage by outfitting your sink with this Chicago Faucets wall-mounted manual sink faucet with 4" centers and 3 5/8" gooseneck spout. Designed with a 3 5/8" gooseneck spout, this faucets combines functionality with style. This unit is equipped with a pressure compensating Softflo aerator that releases a soft, non-splashing flow of water at 1.5 GPM. This unit has a rated operating pressure of 20 to 125 PSI and a rated operating temperature of 40 to 140 degrees Fahrenheit for optimal performance. With its durable, cast brass construction and polished chrome finish, this faucet has a total lead content of less than or equal to 0.25% for your safety.

It boasts 4" fixed centers that allow it to match the centers on your sink or mounting surface with ease. The hot and cold, vandal-proof 4" wristblade handles are color coded for easy identification. Control water flow and prevent leaks with the help of the ceramic 1/4-turn operating cartridges. The wall-mounted design is easy to install, and it uses 1/2" NPSM supply inlets.

Overall Dimensions:
Spout Length: 3 5/8"
Faucet Height: 9"
Faucet Width: 12"

Attention CA Residents:

Attention CA Residents

WARNING:This product can expose you to chemicals including lead, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.p65warnings.ca.gov.

  • ADA Compliant

    ADA Compliant

    This item meets criteria established by the Americans with Disabilities Act (ADA).

  • U.S. Green Building Council (USGBC)

    U.S. Green Building Council (USGBC)

    This company is a certified USGBC member. The USGBC is an organization that promotes sustainable building practices, including saving energy, using fewer resources, and reducing waste.

  • EPA WaterSense

    EPA WaterSense

    This item is certified by the EPA's WaterSense program to meet its standards for water use. WaterSense-labeled products are certified to use at least 20 percent less water, save energy, and perform as well as or better than regular models.

  • ICC-ES ASME A112.18.1/CSA B125.1

    ICC-ES ASME A112.18.1/CSA B125.1

    This item has been tested by the ICC-ES to meet ASME A112.18.1/CSA B125.1 standards for plumbing fittings and fixtures.

  • ICC-ES Low Lead NSF/ANSI 372

    ICC-ES Low Lead NSF/ANSI 372

    This item has been tested by the ICC-ES to meet NSF/ANSI 372 standards for drinking water lead content.

  • ICC-ES Drinking Water NSF/ANSI 61, Section 9

    ICC-ES Drinking Water NSF/ANSI 61, Section 9

    This item has been tested by the ICC-ES to meet NSF/ANSI 61, Section 9 standards for drinking water.

  • CalGreen Compliant

    CalGreen Compliant

    This product is compliant with California's CalGreen Green Building Standards Code.

  • 1/2" Water Connection

    1/2" Water Connection

    This unit comes with a 1/2" water connection for water supply.
