$118.49/Each
This product is no longer available. We've left this page up for reference only.
Product Overview
- 6 1/4" rigid / swing double-bend spout
- 2 3/8" lever handle with color-coded index
- Deck mounting allows for quick and easy installation
- High-quality, polished chrome finish
- 1/2" NPSM supply inlets
- Quantity
- 1/Each
- Shipping Weight
- 2.83 lb.
- Spout Length
- 6 1/4 Inches
- Faucet Width
- 8 3/4 Inches
- Faucet Height
- 7 3/8 Inches
- Cartridge Type
- Ceramic
- Faucet Centers
- 4 Inches
- Finish
- Chrome
- Flow Rate
- 0.5 GPM
- Handle Type
- Lever
- Material
- Brass
- Mounting Style
- Deck Mounted
- Mounting Type
- Workboard
- Pressure Rating
- 20 - 125 PSI
- Rough In
- 4 Inches
- Spout Clearance
- 3 5/8 Inches
- Spout Type
- Swing
- Sprayer
- Without Sprayer
- Temperature Rating
- 40 - 140 Degrees F
- Type
- Faucets
- Water Inlet Size
- 1/2 Inches

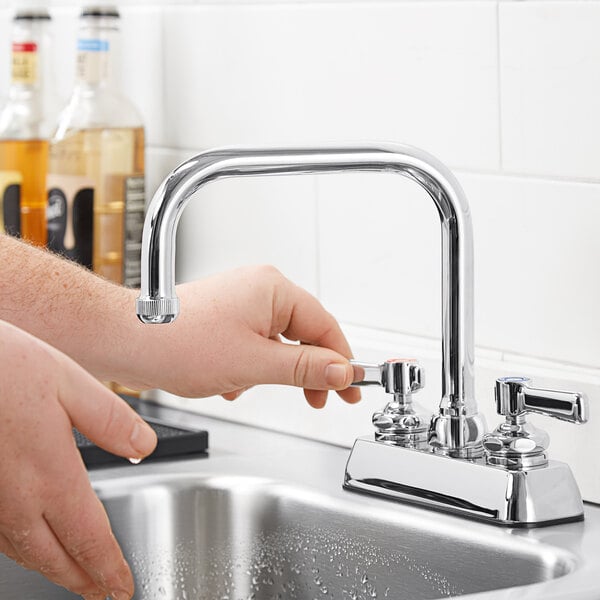

Chicago Faucet Company W4D-DB6AE1-369ABCP Details
Optimize water efficiency and regulate usage by outfitting your sink with this Chicago Faucet W4D-DB6AE1-369ABCP deck-mounted faucet. Coming with a 6 1/4" rigid / swing double-bend spout, this item provides plenty of space for hand washing and other cleaning, making it an excellent choice when you need a reliable, affordable water fixture for your facility! The faucet features a 2 3/8" lever handle with a color-coded hot and cold index to make it easy for guests to maintain a comfortable water temperature without any confusion.
This faucet utilizes a pressure compensating, Econo-Flo, non-aerating laminar spray 0.5 GPM, which works to create a consistent, gentle flow of water while minimizing splashing. The double lever handle design with its convenient color-coded hot and cold index also makes it easy for guests to maintain a comfortable water temperature without any confusion. Plus, the hot water limit stop prevents the water from getting too hot, minimizing the risk of accidental scalding. Developed with the utmost convenience in mind, the deck-mounted design is easy to install and simple to maintain. The faucet installs on your sink deck or countertop on a pair of 4" centers and connects to the water lines with a set of 1/2" NPS inlets. Able to withstand daily wear and tear, trust this Chicago Faucet product to get the job done right!
Overall Dimensions:
Spout Length: 6 1/4"
Faucet Height: 7 3/8"
Faucet Width: 8 3/4"
Customer questions about this product
What measurements do I need to install a faucet?
Faucet Centers: If your faucet has a base with 2 inlets, measure the distance from the center of one inlet to the center of the other. This number must match the spacing of your building’s water lines (adjustable centers will help with the spacing). If mounting through the backsplash on a sink, the center measurement must also fit within the pre-drilled mounting holes.
Flex Hoses: If your faucet has flex hoses make sure that they will reach your building’s water lines.
Spout length: Make sure that the faucet spout will fit comfortably over your sink bowl and not extend too far / not far enough. If you plan to use a swing spout over a multi-bowl sink, make sure it will reach all of the bowls.
NSF Listed
This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.
ADA Compliant
This item meets criteria established by the Americans with Disabilities Act (ADA).
CalGreen Compliant
This product is compliant with California's CalGreen Green Building Standards Code.
NSF/ANSI 61 & 372
This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.
1/2" Water Connection
This unit comes with a 1/2" water connection for water supply.
