Product Overview
- Durable, cast brass construction and polished chrome finish
- Water-conserving pre-rinse spray valve that emits water at 1.0 GPM for pre-rinse applications
- Hot and cold, vandal-proof 2 3/8” lever-style handles are color coded for easy identification
- Ceramic 1/4-turn cartridges control water flow and prevent leaks
- Wall-mounted design makes this model easy to install
- Quantity
- 1/Each
- Shipping Weight
- 14 lb.
- Hose Length
- 44 Inches
- Faucet Height
- 39 7/8 Inches
- Add-On Faucet
- None
- Cartridge Type
- Ceramic
- Faucet Centers
- 3 - 8 3/8 Inches
- Finish
- Chrome
- Handle Type
- Lever
- Material
- Brass
- Mounting Style
- Wall Mounted
- Mounting Type
- Adjustable
- Pre Rinse Unit Type
- Hose and Spring
- Pressure Rating
- 20 - 125 PSI
- Spray Valve Flow Rate
- 1 GPM
- Temperature Rating
- 40 - 140 Degrees F
- Type
- Faucets
- Water Inlet Size
- 1/2 Inches
Chicago Faucet Company 923-WSLXKCAB Details

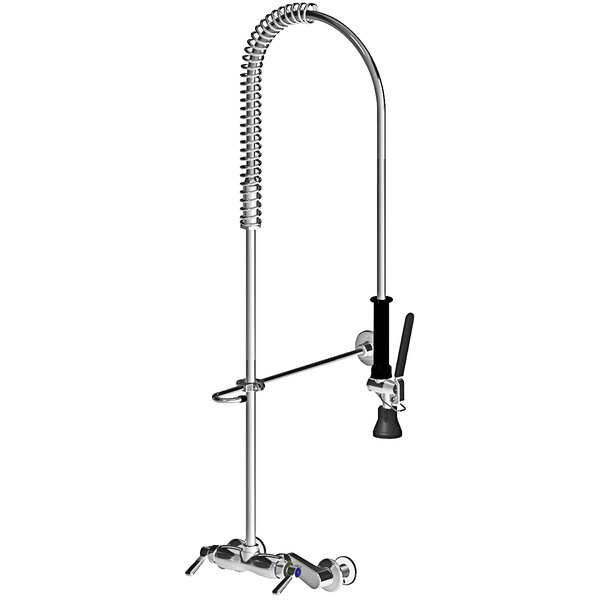

Optimize water efficiency and regulate usage by outfitting your sink with this Chicago Faucets wall-mounted pre-rinse faucet with adjustable centers and shank assembly. This unit has a rated operating pressure of 20 to 125 PSI and a rated operating temperature of 40 to 140 degrees Fahrenheit for optimal performance. With its durable, cast brass construction and polished chrome finish, this faucet has a total lead content of less than or equal to 0.25% for your safety. For pre-rinse applications, this unit includes a water-conserving pre-rinse spray valve that emits water at 1.0 GPM.
It boasts a 3 3/8" body, adjustable arms, and 3" to 8 3/8" adjustable centers that allow it to match the centers on your sink or mounting surface with ease. To deliver water from your main line to the faucet, this unit comes with a 44" stainless steel hose and handle assembly. The hot and cold, vandal-proof 2 3/8" lever handles are color coded for easy identification. Control water flow and prevent leaks with the help of the 1/4-turn operating cartridges with integrated check valves. Prevent water pollution with the help of the vacuum breaker and 2 1/2" offset inlet supply arm. The single-hole, wall-mounted design, shank assembly, and 2 5/16" diameter slip flange make this model easy to install. Plus, a 23" standard, pre-rinse riser is included to provide added height for your faucet.
Overall Dimensions:
Faucet Height: 39 7/8"
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Customer questions about this product
Can I get a spray valve with a higher flow rate (GPM)?
Product Class 1 (5 ozf or less) – Max Flow Rate: 1 GPM
Product Class 2 (5.01 - 8 ozf) – Max Flow Rate: 1.2 GPM
Product Class 3 (over 8 ozf) – Max Flow Rate: 1.28 GPM
These regulations do not impact spray valves made before January 28, 2019, and are implemented by the US Department of Energy in an effort to improve energy conservation.
Can I use this product to serve drinking water?
How do I use a wall bracket to stabilize a pre-rinse faucet?
What measurements do I need to install a faucet?
Faucet Centers: If your faucet has a base with 2 inlets, measure the distance from the center of one inlet to the center of the other. This number must match the spacing of your building’s water lines (adjustable centers will help with the spacing). If mounting through the backsplash on a sink, the center measurement must also fit within the pre-drilled mounting holes.
Flex Hoses: If your faucet has flex hoses make sure that they will reach your building’s water lines.
Spout length: Make sure that the faucet spout will fit comfortably over your sink bowl and not extend too far / not far enough. If you plan to use a swing spout over a multi-bowl sink, make sure it will reach all of the bowls.
U.S. Green Building Council (USGBC)
This company is a certified USGBC member. The USGBC is an organization that promotes sustainable building practices, including saving energy, using fewer resources, and reducing waste.
Buy American Act Compliant
This product complies with the provisions of the Buy American Act.
ICC-ES ASME A112.18.1/CSA B125.1
This item has been tested by the ICC-ES to meet ASME A112.18.1/CSA B125.1 standards for plumbing fittings and fixtures.
ICC-ES Low Lead NSF/ANSI 372
This item has been tested by the ICC-ES to meet NSF/ANSI 372 standards for drinking water lead content.
ICC-ES Drinking Water NSF/ANSI 61, Section 9
This item has been tested by the ICC-ES to meet NSF/ANSI 61, Section 9 standards for drinking water.
1/2" Water Connection
This unit comes with a 1/2" water connection for water supply.
