Name: Chicago Faucets 919-XKCAB Deck-Mounted Pre-Rinse Faucet with 3 1/2" Inlet Tee Connection
Brand: Chicago Faucet Company
SKU: 857919XKCB
Price: 399.99 USD
Availability: LimitedAvailability

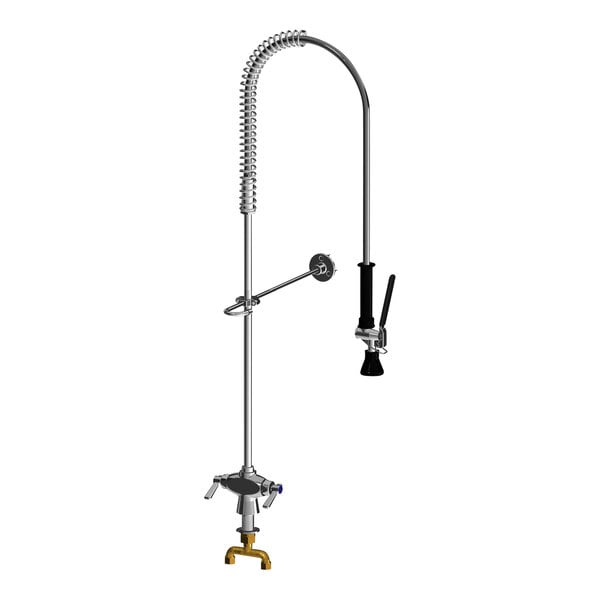

A Chicago Faucets deck-mounted pre-rinse faucet with a chrome pipe and yellow handle.

Only

$399.99/Each

Ships free with Plus

Earn up to $12.00 back (1,200 points)with a Webstaurant Rewards Visa® Credit Card

Special Order Shipping

An estimated delivery date will be provided after placing the order

Product Overview

Durable, cast brass construction and polished chrome finish
Water-conserving pre-rinse spray valve that emits water at 1.0 GPM for pre-rinse applications
Hot and cold, vandal-proof 2 3/8” lever-style handles are color coded for easy identification
Ceramic 1/4-turn cartridges control water flow and prevent leaks
Deck-mounted design makes this model easy to install

UPC Code:611943137052

View all Chicago Faucet Company Pre-Rinse Faucets

Quantity: 1/Each
Shipping Weight: 11.93 lb.
Hose Length: 44 Inches
Faucet Width: 6 3/8 Inches
Faucet Height: 42 5/8 Inches
Add-On Faucet: None
Cartridge Type: Ceramic
Faucet Centers: Single
Features: Vacuum Breaker
Finish: Chrome
Material: Brass
Mounting Style: Deck Mounted
Pre Rinse Unit Type: Hose and Spring
Pressure Rating: 20 - 125 PSI
Spray Valve Flow Rate: 1 GPM
Temperature Rating: 40 - 140 Degrees F

Chicago Faucet Company 919-XKCAB Details

Optimize water efficiency and regulate usage by outfitting your sink with this Chicago Faucets deck-mounted pre-rinse faucet with 3 1/2" inlet tee connection. This unit has a rated operating pressure of 20 to 125 PSI and a rated operating temperature of 40 to 140 degrees Fahrenheit for optimal performance. With its durable, cast brass construction and polished chrome finish, this faucet has a total lead content of less than or equal to 0.25% for your safety. For pre-rinse applications, this unit includes a water-conserving pre-rinse spray valve that emits water at 1.0 GPM.

To deliver water from your main line to the faucet, this unit comes with a 44" stainless steel hose and handle assembly. The hot and cold, vandal-proof 2 3/8" lever handles are color coded for easy identification. Control water flow and prevent leaks with the help of the 1/4-turn operating cartridges with integrated check valves. Prevent water pollution with the help of the inline vacuum breaker with dual checks. The single-hole, deck-mounted design, connection assembly, 3 1/2" inlet tee connection, and pipe strap and hook assembly make this model easy to install. Plus, a 23" standard, pre-rinse riser is included to provide added height for your faucet.

Overall Dimensions:
Faucet Width: 6 3/8"
Hose Length: 44"

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Buy American Act Compliant
This product complies with the provisions of the Buy American Act.
ICC-ES ASME A112.18.1/CSA B125.1
This item has been tested by the ICC-ES to meet ASME A112.18.1/CSA B125.1 standards for plumbing fittings and fixtures.
ICC-ES Low Lead NSF/ANSI 372
This item has been tested by the ICC-ES to meet NSF/ANSI 372 standards for drinking water lead content.
ICC-ES Drinking Water NSF/ANSI 61, Section 9
This item has been tested by the ICC-ES to meet NSF/ANSI 61, Section 9 standards for drinking water.

Questions & Answers

Looking For Specific Info?

Get quick answers to product questions with our AI-powered search.

Frequently Asked Questions From Customers

Can I get a spray valve with a higher flow rate (GPM)?

A: The maximum flow rate for all commercial pre-rinse spray valves produced after January 28, 2019 is 1.28 GPM – more specific regulations may apply based on the valve’s spray force in ounce-force (ozf).

Product Class 1 (5 ozf or less) – Max Flow Rate: 1 GPM
Product Class 2 (5.01 - 8 ozf) – Max Flow Rate: 1.2 GPM
Product Class 3 (over 8 ozf) – Max Flow Rate: 1.28 GPM

These regulations do not impact spray valves made before January 28, 2019, and are implemented by the US Department of Energy in an effort to improve energy conservation.

How do I use a wall bracket to stabilize a pre-rinse faucet?

Pre-rinse faucets with a riser may include a wall bracket to help use the wall for added stability. Pre-rinse faucets without a riser will generally not include or need a wall bracket.

If your unit comes with a bracket, or you plan on adding one, the bracket can be installed at whatever height you prefer, but to be effective it should be placed far enough above the base so as to inhibit movement to the riser – placing too close to the base may make it ineffective.

If you intend to use a wall bracket, consider potential concerns with the installation location, such as shelving or windows behind the faucet, that might limit where you can place the bracket.

What measurements do I need to install a faucet?

When installing a faucet, these are some of the most common measurements you’ll need:

Faucet Centers: If your faucet has a base with 2 inlets, measure the distance from the center of one inlet to the center of the other. This number must match the spacing of your building’s water lines (adjustable centers will help with the spacing). If mounting through the backsplash on a sink, the center measurement must also fit within the pre-drilled mounting holes.

Flex Hoses: If your faucet has flex hoses make sure that they will reach your building’s water lines.

Spout length: Make sure that the faucet spout will fit comfortably over your sink bowl and not extend too far / not far enough. If you plan to use a swing spout over a multi-bowl sink, make sure it will reach all of the bowls.
