Product Overview

  • Durable, cast brass construction and polished chrome finish
  • Designed to fit 1 1/16” to 1 1/18” UNEF female body outlets
  • 23” standard, pre-rinse riser provides added height for your faucet
  • Single hole for deck mounting
  • Water-conserving pre-rinse spray valve that emits water at 1.0 GPM for pre-rinse applications
UPC Code:611943574802

Chicago Faucet Company 919-SLABCP Specs

Quantity
1/Each
Shipping Weight
7.24 lb.
Hose Length
44 Inches
Faucet Height
40 1/8 Inches
Add-On Faucet
None
Faucet Centers
Single
Finish
Chrome
Material
Brass
Mounting Style
Deck Mounted
Pre Rinse Unit Type
Hose and Spring
Pressure Rating
20 - 125 PSI
Spray Valve Flow Rate
1 GPM
Temperature Rating
40 - 140 Degrees F
Type
Faucets

Chicago Faucet Company 919-SLABCP Details

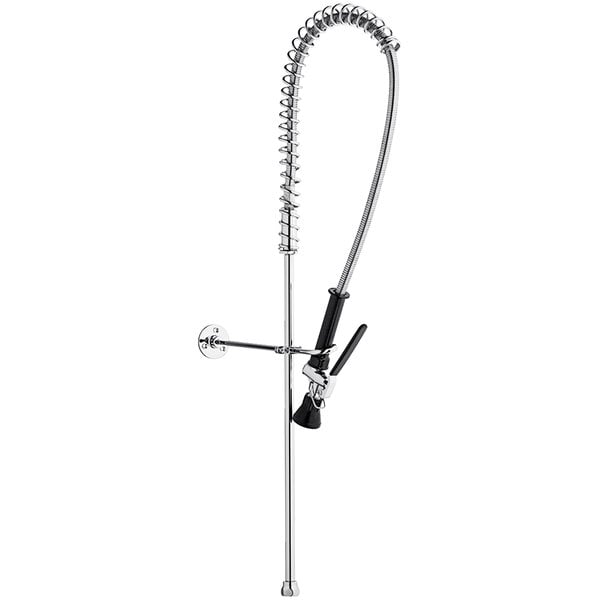

Optimize water efficiency and regulate usage by outfitting your sink with this Chicago Faucets deck-mounted single-hole pre-rinse faucet with pipe strap. This unit has a rated operating pressure of 20 to 125 PSI and a rated operating temperature of 40 to 140 degrees Fahrenheit for optimal performance. With its durable, cast brass construction and polished chrome finish, this faucet has a total lead content of less than or equal to 0.25% for your safety. For pre-rinse applications, this unit includes a water-conserving pre-rinse spray valve that emits water at 1.0 GPM. To deliver water from your main line to the faucet, this unit comes with a 44" stainless steel hose and handle assembly.

This model is designed to fit 1 1/16" to 1 1/18" UNEF female body outlets. A 23" standard, pre-rinse riser is included to provide added height for your faucet. This unit has a single hole for deck mounting. Plus, this model comes with a pipe strap and hook assembly for easy installation.

Overall Dimensions:
Faucet Height: 40 1/8"

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Customer questions about this product

Can I get a spray valve with a higher flow rate (GPM)?

A: The maximum flow rate for all commercial pre-rinse spray valves produced after January 28, 2019 is 1.28 GPM – more specific regulations may apply based on the valve’s spray force in ounce-force (ozf).

Product Class 1 (5 ozf or less) – Max Flow Rate: 1 GPM
Product Class 2 (5.01 - 8 ozf) – Max Flow Rate: 1.2 GPM
Product Class 3 (over 8 ozf) – Max Flow Rate: 1.28 GPM

These regulations do not impact spray valves made before January 28, 2019, and are implemented by the US Department of Energy in an effort to improve energy conservation.

Can I use this product to serve drinking water?

This product is not intended for use in applications where potable (drinking) water is dispensed for human consumption.

How do I use a wall bracket to stabilize a pre-rinse faucet?

Pre-rinse faucets with a riser may include a wall bracket to help use the wall for added stability. Pre-rinse faucets without a riser will generally not include or need a wall bracket.

If your unit comes with a bracket, or you plan on adding one, the bracket can be installed at whatever height you prefer, but to be effective it should be placed far enough above the base so as to inhibit movement to the riser – placing too close to the base may make it ineffective.

If you intend to use a wall bracket, consider potential concerns with the installation location, such as shelving or windows behind the faucet, that might limit where you can place the bracket.
Ask your own question!
  • Buy American Act Compliant

    Buy American Act Compliant

    This product complies with the provisions of the Buy American Act.

  • U.S. Green Building Council (USGBC)

    U.S. Green Building Council (USGBC)

    This company is a certified USGBC member. The USGBC is an organization that promotes sustainable building practices, including saving energy, using fewer resources, and reducing waste.

  • ICC-ES ASME A112.18.1/CSA B125.1

    ICC-ES ASME A112.18.1/CSA B125.1

    This item has been tested by the ICC-ES to meet ASME A112.18.1/CSA B125.1 standards for plumbing fittings and fixtures.

  • ICC-ES Low Lead NSF/ANSI 372

    ICC-ES Low Lead NSF/ANSI 372

    This item has been tested by the ICC-ES to meet NSF/ANSI 372 standards for drinking water lead content.

  • ICC-ES Drinking Water NSF/ANSI 61, Section 9

    ICC-ES Drinking Water NSF/ANSI 61, Section 9

    This item has been tested by the ICC-ES to meet NSF/ANSI 61, Section 9 standards for drinking water.
