$94.49/Each

This product is no longer available. We've left this page up for reference only.

Special Order Shipping

An estimated delivery date will be provided after placing the order

Product Overview

  • Reduces energy and water costs for restaurants, commercial kitchens, and institutions
  • 1.0 GPM at 60 PSI
  • 3/4"-14 UNS male thread inlet
  • High-quality stainless steel handle clip holds handle open
  • Quick, hassle-free installation
UPC Code:611943486341

Chicago Faucet Company 90-ANGABCP Specs

Quantity
1/Each
Shipping Weight
1.47 lb.
Length
9 7/8 Inches
Flow Rate
1 GPM
Inlet
3/4"-14 Male Inlet
Material
Rubber  Stainless Steel
Maximum Pressure
60 PSI
Type
Spray Valves

Chicago Faucet Company 90-ANGABCP Details

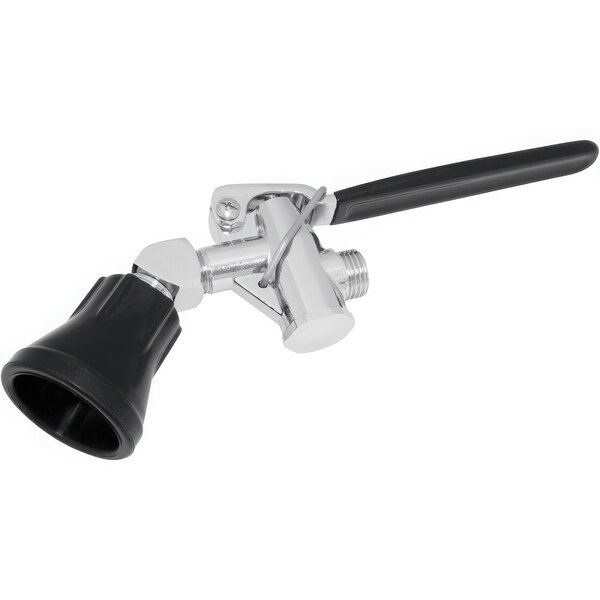

Optimize water efficiency and regulate usage by outfitting your sink with this Chicago Faucets water conserving 1.0 GPM pre-rinse spray valve! Designed for superior water conservation, high performance, and reliability, this brass spray valve features an easy-to-use, ergonomic squeeze handle with a durable, stainless steel hold-down ring that lets you lock the handle in place. This helps to provide a comfortable user experience, especially during high-volume, all-day use! Equipped with a 3/4"-14 UNS male thread inlet, this product is made for quick and easy installations. Plus, the convenient, rubber-coated, heat-resistant handle ensures an excellent grip to prevent accidents and improve work output. Elevate your cleaning capacity while saving time and money with this versatile low-flow spray valve!

Boasting a 60 PSI rating with a 1.0 GPM low-flow water rate, this sprayer is perfect for restaurants, commercial kitchens, institutions, and other high-volume facilities! Best of all, the interchangeable design allows it to be used in pre-rinse, filler, and hose reel applications. Built for the long haul, this product even makes it easy to service or replace the nozzle, bumper, and handle to ensure years of use! Reduce water and energy consumption at your facility with this convenient, money-saving product!

Overall Dimensions:
Length: 9 7/8"

Attention CA Residents:

Customer questions about this product

Can I get a spray valve with a higher flow rate (GPM)?

A: The maximum flow rate for all commercial pre-rinse spray valves produced after January 28, 2019 is 1.28 GPM – more specific regulations may apply based on the valve’s spray force in ounce-force (ozf).

Product Class 1 (5 ozf or less) – Max Flow Rate: 1 GPM
Product Class 2 (5.01 - 8 ozf) – Max Flow Rate: 1.2 GPM
Product Class 3 (over 8 ozf) – Max Flow Rate: 1.28 GPM

These regulations do not impact spray valves made before January 28, 2019, and are implemented by the US Department of Energy in an effort to improve energy conservation.
Ask your own question!
  • ICC-ES ASME A112.18.1/CSA B125.1

    ICC-ES ASME A112.18.1/CSA B125.1

    This item has been tested by the ICC-ES to meet ASME A112.18.1/CSA B125.1 standards for plumbing fittings and fixtures.

  • Buy American Act Compliant

    Buy American Act Compliant

    This product complies with the provisions of the Buy American Act.

  • ICC-ES Drinking Water NSF/ANSI 61, Section 9

    ICC-ES Drinking Water NSF/ANSI 61, Section 9

    This item has been tested by the ICC-ES to meet NSF/ANSI 61, Section 9 standards for drinking water.

  • U.S. Green Building Council (USGBC)

    U.S. Green Building Council (USGBC)

    This company is a certified USGBC member. The USGBC is an organization that promotes sustainable building practices, including saving energy, using fewer resources, and reducing waste.

  • CalGreen Compliant

    CalGreen Compliant

    This product is compliant with California's CalGreen Green Building Standards Code.
