Product Overview

  • Pressure compensating, Softflo aerator 2.2 GPM
  • 1 3/4" MVP metering push handle
  • Deck mounting allows for quick and easy installation
  • High-quality, polished chrome finish
  • 1/2" NPSM supply inlets and coupling nut for 3/8" or 1/2" flexible riser

Shipping Restrictions

This item cannot ship to CA
UPC Code:611943449575

Chicago Faucet Company 802-665ABCP Specs

Quantity
1/Each
Shipping Weight
3.78 lb.
Spout Length
4 Inches
Faucet Width
6 Inches
Faucet Height
2 7/8 Inches
Cartridge Type
Metering
Faucet Centers
4 Inches
Finish
Chrome
Flow Rate
2.2 GPM
Handle Type
Push
Material
Brass
Mounting Style
Deck Mounted
Pressure Rating
20 - 125 PSI
Spout Clearance
1 5/8 Inches
Spout Type
Cast
Temperature Rating
40 - 140 Degrees F
Type
Faucets
Water Inlet Size
1/2 Inches

Chicago Faucet Company 802-665ABCP Details

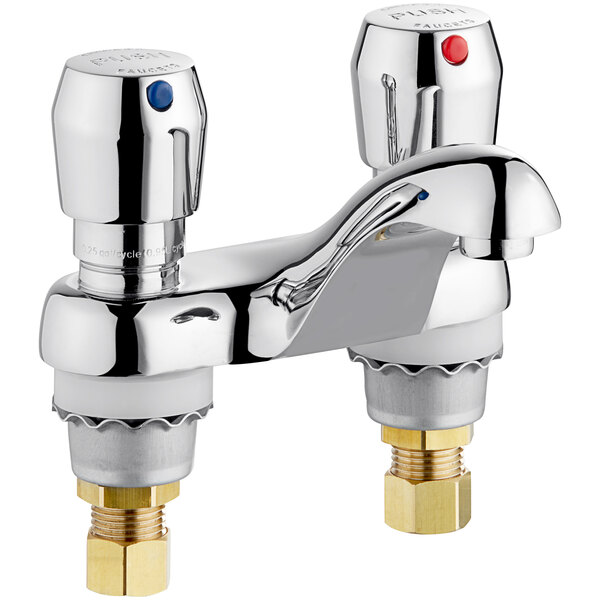

Optimize water efficiency and regulate usage by outfitting your sink with this Chicago Faucets deck-mounted metering faucet with 4" centers and 4" cast brass spout. Designed with a cast brass spout, this faucet combines functionality with style. This unit is equipped with a pressure compensating Softflo aerator that releases a soft, non-splashing flow of water at 2.2 GPM. This unit has a rated operating pressure of 20 to 125 PSI and a rated operating temperature of 40 to 140 degrees Fahrenheit for optimal performance. With its durable, cast brass construction and polished chrome finish, this faucet has a total lead content of less than or equal to 0.25% for your safety.

It boasts 4" fixed centers that allow it to match the centers on your sink or mounting surface with ease. Thanks to the MVP actuator and metering cartridge, this faucet releases a measured amount of water before shutting off - adjustable for any time between 2 to 25 seconds after turning on. This helps to prevent water waste in your facility by controlling how much water is released per use. The hot and cold, vandal-proof 1 3/4" MVP metering push handles are color coded for easy identification. Prevent water pollution with the help of the 1/2" NPSM supply inlets. The deck-mounted design is easy to install. A coupling nut for 3/8" or 1/2" flexible risers is included to provide added height for your faucet.

Overall Dimensions:
Spout Length: 4"
Faucet Height: 2 7/8"
Faucet Width: 6"

Attention CA Residents:

Customer questions about this product

Can I use this product to serve drinking water?

This product is not intended for use in applications where potable (drinking) water is dispensed for human consumption.

I live in California. Can I purchase this product?

This product cannot be shipped to California.

What measurements do I need to install a faucet?

When installing a faucet, these are some of the most common measurements you’ll need:

Faucet Centers: If your faucet has a base with 2 inlets, measure the distance from the center of one inlet to the center of the other. This number must match the spacing of your building’s water lines (adjustable centers will help with the spacing). If mounting through the backsplash on a sink, the center measurement must also fit within the pre-drilled mounting holes.

Flex Hoses: If your faucet has flex hoses make sure that they will reach your building’s water lines.

Spout length: Make sure that the faucet spout will fit comfortably over your sink bowl and not extend too far / not far enough. If you plan to use a swing spout over a multi-bowl sink, make sure it will reach all of the bowls.
Ask your own question!
  • ADA Compliant

    ADA Compliant

    This item meets criteria established by the Americans with Disabilities Act (ADA).

  • Buy American Act Compliant

    Buy American Act Compliant

    This product complies with the provisions of the Buy American Act.

  • CalGreen Compliant

    CalGreen Compliant

    This product is compliant with California's CalGreen Green Building Standards Code.

  • ICC-ES PMG, US & Canada

    ICC-ES PMG, US & Canada

    This plumbing, mechanical or fuel gas product has been evaluated by ICC-ES to meet requirements of the International Uniform codes and other applicable standards for use in the United States and Canada.

  • 1/2" Water Connection

    1/2" Water Connection

    This unit comes with a 1/2" water connection for water supply.
