$276.49/Each

Ships free with Plus

Earn up to $8.29 back (829 points)with a Webstaurant Rewards Visa® Credit Card

Special Order Shipping

An estimated delivery date will be provided after placing the order

Product Overview

  • Durable, chrome-plated construction and polished chrome finish
  • MVP actuator and metering cartridge releases a measured amount of water
  • Vandal-proof 1 3/4” MVP metering push handle easily dispenses water
  • Helps to prevent water waste in your facility
  • Quick, hassle-free installation
UPC Code:611943281205

Chicago Faucet Company 732-VB665PSHCP Specs

Quantity
1/Each
Shipping Weight
2.2 lb.
Finish
Chrome
Flow Rate
0.25 GPF
Material
Brass
Pressure Rating
20 - 125 PSI
Rough In
10 1/4 Inches
Style
Manual
Temperature Range
40 - 140 Degrees F
Type
Flush Valves  Urinal Valves

Chicago Faucet Company 732-VB665PSHCP Details

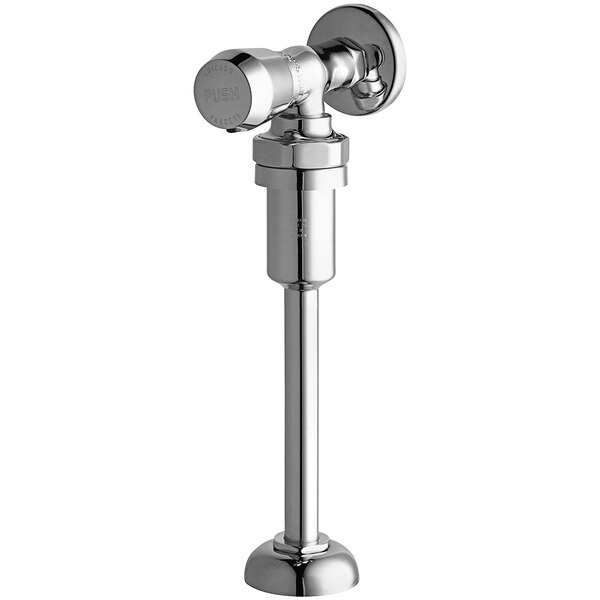

Equip your facility with this Chicago Faucets angled urinal valve with metering push handle. Equipped with a 3/4" slip outlet, this valve is made for quick and easy installations. With its durable, chrome-plated construction and polished chrome finish, this urinal valve is suitable for long-term use. This unit has a rated operating pressure of 20 to 125 PSI and a rated operating temperature of 40 to 140 degrees Fahrenheit for optimal performance.

Thanks to the MVP actuator and metering cartridge, this valve releases a measured amount of water before shutting off - adjustable for any time between 2 to 25 seconds after turning on. This helps to prevent water waste in your facility by controlling how much water is released per use. Designed with the utmost convenience in mind, the vandal-proof 1 3/4" MVP metering push handle easily dispenses water. Control water flow and prevent leaks with the help of the compression valve and left-hand slow compression cartridge. Prevent the backflow of potentially harmful water into your water system with the urinal vacuum breaker kit. Plus, the angled, wall-mounted design makes this valve easy to install.

Overall Dimensions:
Length: 4 7/8"
Height: 10 1/4"

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:
  • U.S. Green Building Council (USGBC)

    U.S. Green Building Council (USGBC)

    This company is a certified USGBC member. The USGBC is an organization that promotes sustainable building practices, including saving energy, using fewer resources, and reducing waste.

  • Buy American Act Compliant

    Buy American Act Compliant

    This product complies with the provisions of the Buy American Act.

  • ICC-ES ASME A112.18.1/CSA B125.1

    ICC-ES ASME A112.18.1/CSA B125.1

    This item has been tested by the ICC-ES to meet ASME A112.18.1/CSA B125.1 standards for plumbing fittings and fixtures.
