$122.49/Each
This product is no longer available. We've left this page up for reference only.
Product Overview
- Durable, cast brass construction and polished chrome finish
- Dual-screen outlet releases a steady flow of water at 1.55 GPM
- Coated metal handle with locking clip
- Single-hole, deck-mounted design
- 1/2" NPT male inlet with deck flange
- Quantity
- 1/Each
- Shipping Weight
- 2.63 lb.
- Length
- 3 5/8 Inches
- Height
- 7 1/2 Inches
- Finish
- Chrome
- Flow Rate
- 1.55 GPM
- Installation Type
- Deck Mounted
- Material
- Brass
- PSI
- 20 - 125 PSI
- Temperature Range
- 40 - 140 Degrees F
- Type
- Glass Fillers
- Water Inlet Size
- 1/2 Inches
Chicago Faucet Company 714-ABCP Details

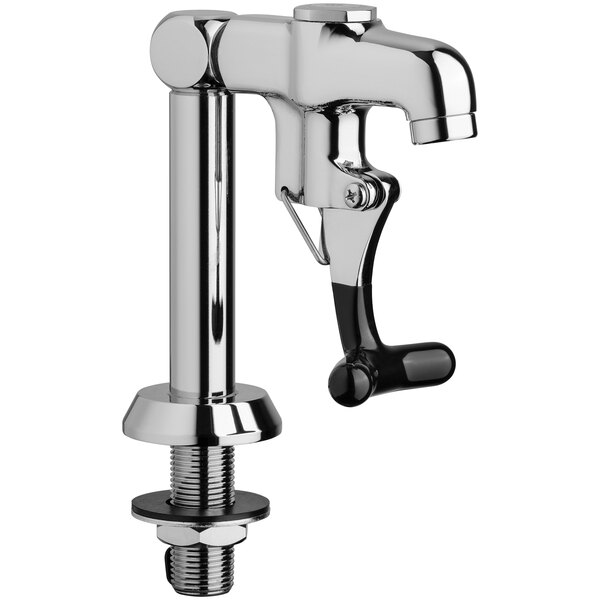

Optimize water efficiency and regulate usage by outfitting your sink with this Chicago Faucets deck-mounted glass filler. It is equipped with a dual-screen outlet that releases a steady flow of water at 1.55 GPM. This unit has a rated operating pressure of 20 to 125 PSI and a rated operating temperature of 40 to 140 degrees Fahrenheit for optimal performance.
With its durable, cast brass construction and polished chrome finish, this faucet has a total lead content of less than or equal to 0.25% for your safety. The coated metal handle with locking clip makes it easy to fill your glasses. This single-hole, deck-mounted design and 1/2" NPT male inlet with deck flange make this model easy to install.
Overall Dimensions:
Length: 3 5/8"
Height: 7 1/2"
Customer questions about this product
What measurements do I need to install a faucet?
Faucet Centers: If your faucet has a base with 2 inlets, measure the distance from the center of one inlet to the center of the other. This number must match the spacing of your building’s water lines (adjustable centers will help with the spacing). If mounting through the backsplash on a sink, the center measurement must also fit within the pre-drilled mounting holes.
Flex Hoses: If your faucet has flex hoses make sure that they will reach your building’s water lines.
Spout length: Make sure that the faucet spout will fit comfortably over your sink bowl and not extend too far / not far enough. If you plan to use a swing spout over a multi-bowl sink, make sure it will reach all of the bowls.
ICC-ES ASME A112.18.1/CSA B125.1
This item has been tested by the ICC-ES to meet ASME A112.18.1/CSA B125.1 standards for plumbing fittings and fixtures.
U.S. Green Building Council (USGBC)
This company is a certified USGBC member. The USGBC is an organization that promotes sustainable building practices, including saving energy, using fewer resources, and reducing waste.
ICC-ES Low Lead NSF/ANSI 372
This item has been tested by the ICC-ES to meet NSF/ANSI 372 standards for drinking water lead content.
ICC-ES Drinking Water NSF/ANSI 61, Section 9
This item has been tested by the ICC-ES to meet NSF/ANSI 61, Section 9 standards for drinking water.
1/2" Water Connection
This unit comes with a 1/2" water connection for water supply.
