Product Overview
- Durable, cast brass construction and polished chrome finish

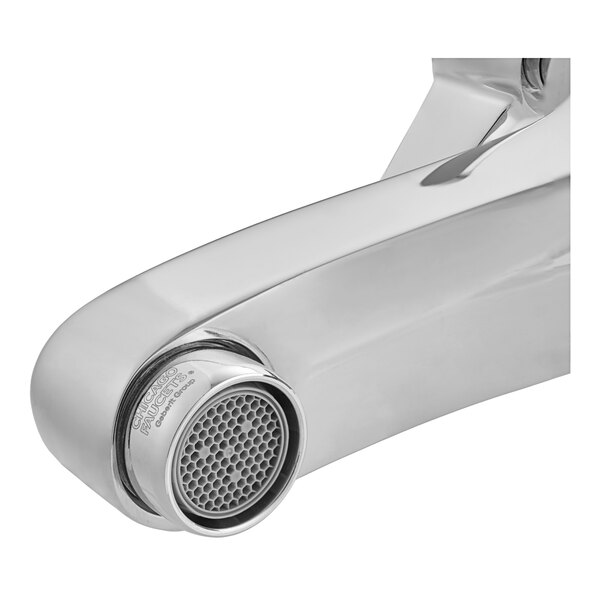

- Pressure compensating non-aerating laminar releases water at 0.5 GPM
- Vandal-proof 3" cross handles are color coded for easy identification
- Quaturn compression operating cartridges control water flow and prevent leaks
- Deck-mounted design is easy to install
- Quantity
- 2/Pack
- Shipping Weight
- 3.5 lb.
- Handle Length
- 3 Inches
- Spout Length
- 3 1/2 Inches
- Faucet Width
- 3 Inches
- Faucet Height
- 3 3/8 Inches
- Cartridge Type
- Compression
- Faucet Centers
- Single
- Finish
- Chrome
- Flow Rate
- 0.5 GPM
- Handle Type
- 4 Arm
- Installation Type
- Deck Mounted
- Material
- Brass
- Mounting Style
- Deck Mounted
- Mounting Type
- Adjustable
- Pressure Rating
- 20 - 125 PSI
- Rough In
- Single
- Spout Clearance
- 1 1/2 Inches
- Spout Type
- Cast
- Sprayer
- Without Sprayer
- Temperature Rating
- 40 - 140 Degrees F
- Water Inlet Size
- 1/2 Inches

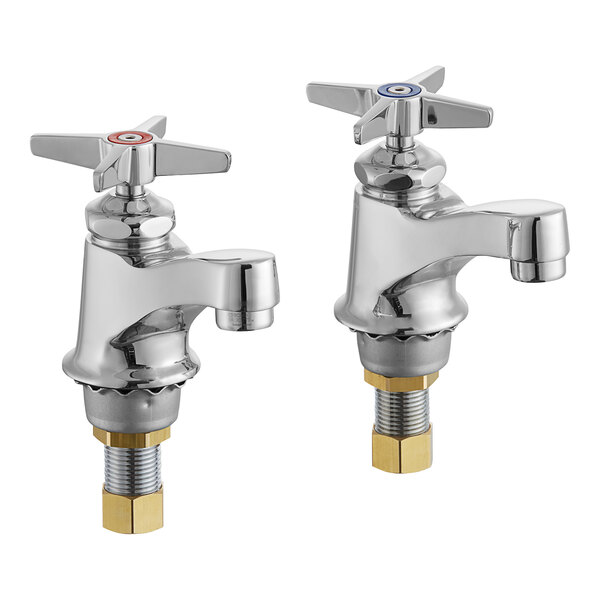

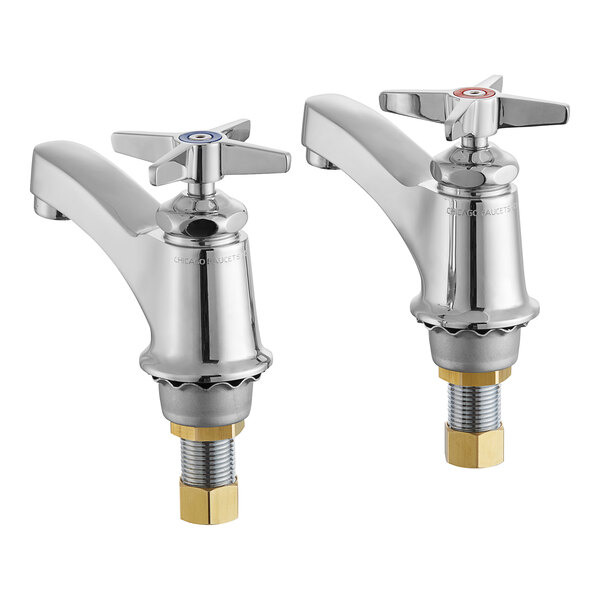

Chicago Faucet Company 700-E70PRABCP Details
Optimize water efficiency and regulate usage by outfitting your sink with these Chicago Faucets deck-mounted single-supply faucets with 3" cross handles. Designed with cast brass spouts, these faucets combine functionality with style. They are equipped with a pressure compensating non-aerating laminar that releases water at 0.5 GPM. They have a rated operating pressure of 20 to 125 PSI and a rated operating temperature of 40 to 140 degrees Fahrenheit for optimal performance. With their durable, cast brass construction and polished chrome finish, these faucets have a total lead content of less than or equal to 0.25% for your safety.
The hot and cold, vandal-proof 3" cross handles are color coded for easy identification. Control water flow and prevent leaks with the help of the Quaturn compression operating cartridges. The single-hole, deck-mounted design is easy to install, and the faucets use 1/2" NPSM supply inlets and a coupling nut suitable for 3/8" or 1/2" risers.
Overall Dimensions:
Spout Length: 3 1/2"
Faucet Height: 3 3/8"
Faucet Width: 3"
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Customer questions about this product
What measurements do I need to install a faucet?
Faucet Centers: If your faucet has a base with 2 inlets, measure the distance from the center of one inlet to the center of the other. This number must match the spacing of your building’s water lines (adjustable centers will help with the spacing). If mounting through the backsplash on a sink, the center measurement must also fit within the pre-drilled mounting holes.
Flex Hoses: If your faucet has flex hoses make sure that they will reach your building’s water lines.
Spout length: Make sure that the faucet spout will fit comfortably over your sink bowl and not extend too far / not far enough. If you plan to use a swing spout over a multi-bowl sink, make sure it will reach all of the bowls.
U.S. Green Building Council (USGBC)
This company is a certified USGBC member. The USGBC is an organization that promotes sustainable building practices, including saving energy, using fewer resources, and reducing waste.
Buy American Act Compliant
This product complies with the provisions of the Buy American Act.
ICC-ES ASME A112.18.1/CSA B125.1
This item has been tested by the ICC-ES to meet ASME A112.18.1/CSA B125.1 standards for plumbing fittings and fixtures.
ICC-ES Drinking Water NSF/ANSI 61, Section 9
This item has been tested by the ICC-ES to meet NSF/ANSI 61, Section 9 standards for drinking water.
1/2" Water Connection
This unit comes with a 1/2" water connection for water supply.
