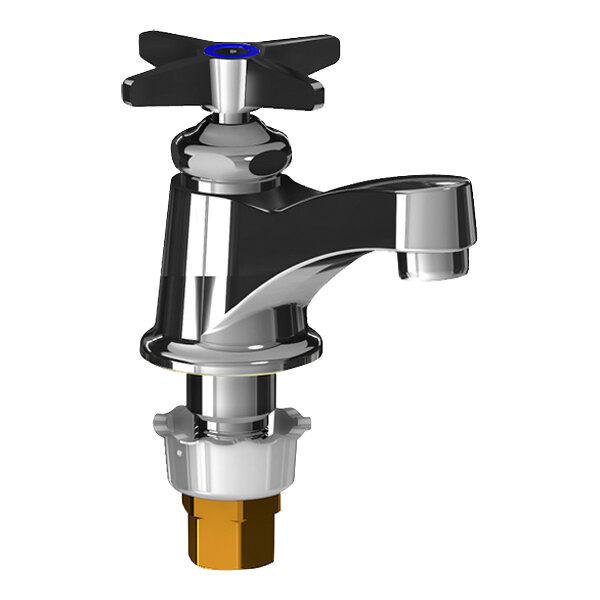

Chicago Faucets 700-E74COLDABCP 1.0 GPM Deck-Mounted Single-Hole Single-Supply Faucet with 3" Cross Handle
Item number 857700e74coldabcpMFR number 700-E74COLDABCP
$168.49/Each
Ships free with
Earn up to $5.05 back (505 points)with a Webstaurant Rewards Visa® Credit Card
Usually Ships in 5-7 Business Days from manufacturer
Lead times vary based on manufacturer stock
Product Overview
- Durable, cast brass construction and polished chrome finish
- Pressure compensating non-aerating laminar spray outlet produces a water flow of 1.0 GPM
- Vandal-proof 3" cross handle includes cold water index
- Includes 3 1/2" cast brass spout
- Deck-mounted single-hole design is easy to install
- Quantity
- 1/Each
- Shipping Weight
- 5.67 lb.
- Spout Length
- 3 1/2 Inches
- Faucet Width
- 3 Inches
- Faucet Height
- 3 3/8 Inches
- Cartridge Type
- Compression
- Faucet Centers
- Single
- Finish
- Chrome
- Flow Rate
- 1 GPM
- Handle Type
- 4 Arm
- Material
- Brass
- Mounting Style
- Deck Mounted
- Mounting Type
- Adjustable
- Pressure Rating
- 20 - 125 PSI
- Rough In
- Single
- Spout Clearance
- 1 1/2 Inches
- Spout Type
- Cast
- Sprayer
- Without Sprayer
- Temperature Rating
- 40 - 140 Degrees F
- Type
- Faucets
- Water Inlet Size
- 1/2 Inches
Chicago Faucet Company 700-E74COLDABCP Details
Optimize water efficiency and regulate usage by outfitting your sink with this Chicago Faucets 1.0 GPM deck-mounted single-hole single-supply faucet with 3" cross handle. Designed with a cast brass spout, this faucet combines functionality with style. This unit is equipped with a pressure compensating non-aerating laminar outlet which releases a flow of water at 1.0 GPM. This unit has a rated operating pressure of 20 to 125 PSI and a rated operating temperature of 40 to 140 degrees Fahrenheit for optimal performance. With its durable, cast brass construction and polished chrome finish, this faucet has a total lead content of less than or equal to 0.25% for your safety.
The deck-mounted single-hole design is easy to install. Control water flow and prevent leaks with the help of the left hand Quaturn compression operating cartridge. The 3" cross handle design also makes it easy for guests to maintain a comfortable water flow, and includes red, blue, and white index buttons for easy identification. Plus, to deliver water from your main line to the faucet, it uses 1/2" NPSM supply inlets and a coupling nut suitable for 3/8" or 1/2" risers.
Overall Dimensions:
Spout Length: 3 1/2"
Faucet Height: 3 3/8"
Faucet Width: 3"
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Attention CA Residents:
ICC-ES ASME A112.18.1/CSA B125.1
This item has been tested by the ICC-ES to meet ASME A112.18.1/CSA B125.1 standards for plumbing fittings and fixtures.
EPA WaterSense
This item is certified by the EPA's WaterSense program to meet its standards for water use. WaterSense-labeled products are certified to use at least 20 percent less water, save energy, and perform as well as or better than regular models.
ICC-ES Low Lead NSF/ANSI 372
This item has been tested by the ICC-ES to meet NSF/ANSI 372 standards for drinking water lead content.
ICC-ES Drinking Water NSF/ANSI 61, Section 9
This item has been tested by the ICC-ES to meet NSF/ANSI 61, Section 9 standards for drinking water.
U.S. Green Building Council (USGBC)
This company is a certified USGBC member. The USGBC is an organization that promotes sustainable building practices, including saving energy, using fewer resources, and reducing waste.
Buy American Act Compliant
This product complies with the provisions of the Buy American Act.
1/2" Water Connection
This unit comes with a 1/2" water connection for water supply.
Questions & Answers
Looking For Specific Info? Get quick answers to product questions with our AI-powered search.
Frequently Asked Questions From Customers
Faucet Centers: If your faucet has a base with 2 inlets, measure the distance from the center of one inlet to the center of the other. This number must match the spacing of your building’s water lines (adjustable centers will help with the spacing). If mounting through the backsplash on a sink, the center measurement must also fit within the pre-drilled mounting holes.
Flex Hoses: If your faucet has flex hoses make sure that they will reach your building’s water lines.
Spout length: Make sure that the faucet spout will fit comfortably over your sink bowl and not extend too far / not far enough. If you plan to use a swing spout over a multi-bowl sink, make sure it will reach all of the bowls.
