$84.99/Each
This product is no longer available. We've left this page up for reference only.
Product Overview
- Durable, cast brass construction and polished chrome finish
- Stylish 3 1/2" rigid / swing gooseneck spout
- Pressure compensating Softflo aerator releases a soft, non-splashing flow of water at 1.5 GPM
- 1/2" NPT female thread inlet
- Wall-mounted design is easy to install
- Quantity
- 1/Each
- Shipping Weight
- 2 lb.
- Spout Length
- 3 5/8 Inches
- Spout Height
- 9 Inches
- Features
- Made in America
- Finish
- Chrome
- Flow Rate
- 1.5 GPM
- Material
- Brass
- Spout Clearance
- 6 1/8 Inches
- Spout Type
- Gooseneck
- Type
- Nozzles

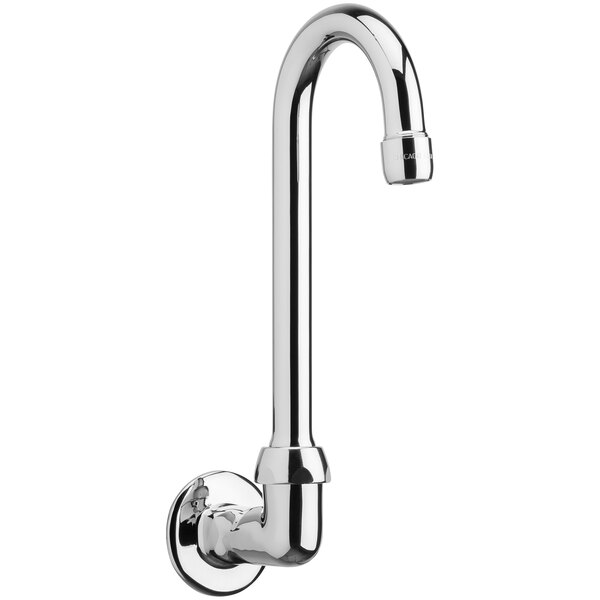

Chicago Faucet Company 629-E35ABCP Details
Optimize water efficiency and regulate usage by outfitting your sink with this Chicago Faucets wall-mounted 3 1/2" rigid / swing gooseneck remote spout. Designed with a 3 1/2" rigid / swing gooseneck spout, this model combines functionality with style. This unit is equipped with a pressure compensating Softflo aerator that releases a soft, non-splashing flow of water at 1.5 GPM.
With its durable, cast brass construction and polished chrome finish, this faucet has a total lead content of less than or equal to 0.25% for your safety. This unit has a rated operating pressure of 20 to 125 PSI and a rated operating temperature of 40 to 140 degrees Fahrenheit for optimal performance. This model's wall-mounted design and 1/2" NPT female tread inlet make it easy to install.
Overall Dimensions:
Spout Length: 3 5/8"
Spout Height: 9"
Spout Clearance: 6 1/8"
Customer questions about this product
What measurements do I need to install a faucet?
Faucet Centers: If your faucet has a base with 2 inlets, measure the distance from the center of one inlet to the center of the other. This number must match the spacing of your building’s water lines (adjustable centers will help with the spacing). If mounting through the backsplash on a sink, the center measurement must also fit within the pre-drilled mounting holes.
Flex Hoses: If your faucet has flex hoses make sure that they will reach your building’s water lines.
Spout length: Make sure that the faucet spout will fit comfortably over your sink bowl and not extend too far / not far enough. If you plan to use a swing spout over a multi-bowl sink, make sure it will reach all of the bowls.
Why are the dimensions in the title different from the actual dimensions in the description?
ICC-ES ASME A112.18.1/CSA B125.1
This item has been tested by the ICC-ES to meet ASME A112.18.1/CSA B125.1 standards for plumbing fittings and fixtures.
EPA WaterSense
This item is certified by the EPA's WaterSense program to meet its standards for water use. WaterSense-labeled products are certified to use at least 20 percent less water, save energy, and perform as well as or better than regular models.
ICC-ES Low Lead NSF/ANSI 372
This item has been tested by the ICC-ES to meet NSF/ANSI 372 standards for drinking water lead content.
U.S. Green Building Council (USGBC)
This company is a certified USGBC member. The USGBC is an organization that promotes sustainable building practices, including saving energy, using fewer resources, and reducing waste.
ICC-ES Drinking Water NSF/ANSI 61, Section 9
This item has been tested by the ICC-ES to meet NSF/ANSI 61, Section 9 standards for drinking water.
Buy American Act Compliant
This product complies with the provisions of the Buy American Act.
CalGreen Compliant
This product is compliant with California's CalGreen Green Building Standards Code.
Made in America
This item was made in the United States of America.
