Product Overview

  • Durable, cast brass construction and polished chrome finish
  • Foot-operated valve
  • Short pedal; perfect for use in cramped spaces
  • NAIAD metering fast cycle time closure cartridge with immediate shutoff
  • 1/2" NPT female thread inlet and 1/2" NPT female thread outlet
UPC Code:611943475321

Chicago Faucet Company 628-ABCP Specs

Quantity
1/Each
Shipping Weight
3.27 lb.
Finish
Chrome
Material
Brass
Pressure Rating
20 - 125 PSI
Temperature Rating
40 - 140 Degrees F
Type
No Spout
Valve Type
Single Foot Pedal
Water Inlet Size
1/2 Inches

Chicago Faucet Company 628-ABCP Details

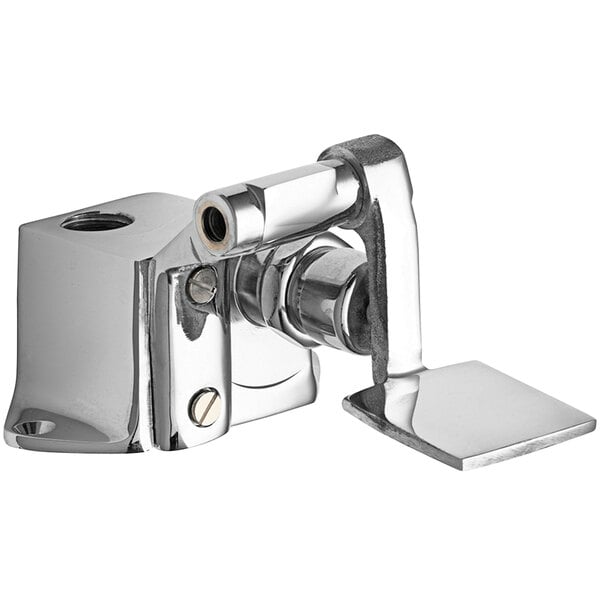

Use this Chicago Faucets foot-operated remote valve with short pedal for a hands-free faucet experience. Designed with a foot-operated valve, this unit conveniently allows you to turn the sink water on and off without using your hands. This unit has a rated operating pressure of 20 to 125 PSI and a rated operating temperature of 40 to 140 degrees Fahrenheit for optimal performance. With its durable, cast brass construction and polished chrome finish, this faucet has a total lead content of less than or equal to 0.25% for your safety.

Its short pedal makes this unit perfect for use in cramped spaces. This model includes a NAIAD metering cartridge with fast cycle time closure and immediate shutoff. The included 1/2" NPT female thread inlet and 1/2" NPT female thread outlet make this unit easy to install.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:
  • ICC-ES ASME A112.18.1/CSA B125.1

    ICC-ES ASME A112.18.1/CSA B125.1

    This item has been tested by the ICC-ES to meet ASME A112.18.1/CSA B125.1 standards for plumbing fittings and fixtures.

  • U.S. Green Building Council (USGBC)

    U.S. Green Building Council (USGBC)

    This company is a certified USGBC member. The USGBC is an organization that promotes sustainable building practices, including saving energy, using fewer resources, and reducing waste.

  • ICC-ES Low Lead NSF/ANSI 372

    ICC-ES Low Lead NSF/ANSI 372

    This item has been tested by the ICC-ES to meet NSF/ANSI 372 standards for drinking water lead content.

  • ICC-ES Drinking Water NSF/ANSI 61, Section 9

    ICC-ES Drinking Water NSF/ANSI 61, Section 9

    This item has been tested by the ICC-ES to meet NSF/ANSI 61, Section 9 standards for drinking water.

  • Buy American Act Compliant

    Buy American Act Compliant

    This product complies with the provisions of the Buy American Act.

  • 1/2" Water Connection

    1/2" Water Connection

    This unit comes with a 1/2" water connection for water supply.
