Product Overview

  • Durable, cast brass construction and polished chrome finish
  • Stylish 6 1/4" rigid / swing double-bend spout
  • Quixtop outlet with a single screen design that releases a full flow of water
  • Vandal-proof 2 3/8” lever handles are color-coded for easy identification
  • Control water flow and prevent leaks with the help of the Quaturn compression operating cartridges
UPC Code:611943475260

Chicago Faucet Company 526-ABCP Specs

Quantity
1/Each
Shipping Weight
4.5 lb.
Spout Length
6 1/4 Inches
Faucet Width
8 3/4 Inches
Faucet Height
7 3/4 Inches
Cartridge Type
Compression
Faucet Centers
4 Inches
Finish
Chrome
Flow Rate
12 GPM
Handle Type
Lever
Material
Brass
Mounting Style
Deck Mounted
Mounting Type
Workboard
Pressure Rating
20 - 125 PSI
Rough In
4 Inches
Spout Clearance
4 1/4 Inches
Spout Type
Gooseneck
Sprayer
Without Sprayer
Temperature Rating
40 - 140 Degrees F
Type
Faucets
Water Inlet Size
1/2 Inches

Chicago Faucet Company 526-ABCP Details

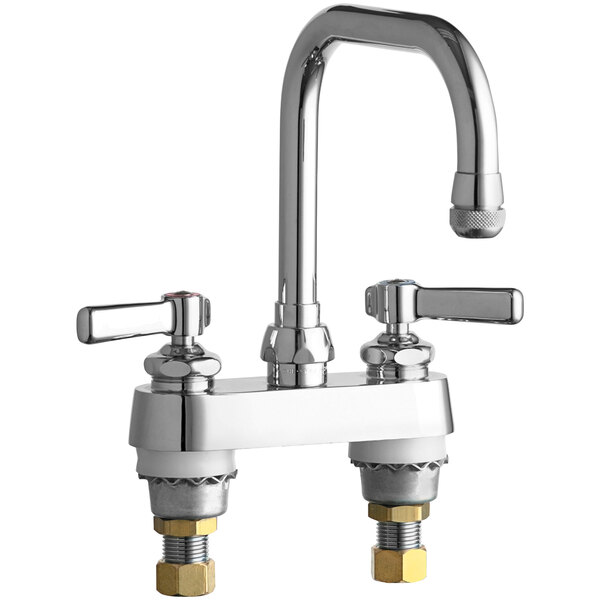

Optimize water efficiency and regulate usage by outfitting your sink with this Chicago Faucets deck-mounted faucet with 4" fixed centers, 6 1/4" rigid / swing double-bend spout, and Quixtop outlet. Designed with a 6 1/4" rigid / swing double-bend spout, this faucet combines functionality with style. This unit is equipped with a Quixtop outlet with a single screen design that releases a full flow of water. With its durable, cast brass construction and polished chrome finish, this faucet has a total lead content of less than or equal to 0.25% for your safety. This unit has a rated operating pressure of 20 to 125 PSI and a rated operating temperature of 40 to 140 degrees Fahrenheit for optimal performance.

It boasts 4" fixed centers that allow it to match the centers on your sink or mounting surface with ease. Control water flow and prevent leaks with the help of the Quaturn compression operating cartridges. The hot and cold, vandal-proof 2 3/8" lever handles are color coded for easy identification. It has 1/2" NPSM supply inlets and a coupling nut suitable for 3/8" or 1/2" risers. The deck-mounted design makes this model easy to install.

Overall Dimensions:
Spout Length: 6 1/4"
Faucet Height: 7 3/4"
Faucet Width: 8 3/4"

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Customer questions about this product

What measurements do I need to install a faucet?

When installing a faucet, these are some of the most common measurements you’ll need:

Faucet Centers: If your faucet has a base with 2 inlets, measure the distance from the center of one inlet to the center of the other. This number must match the spacing of your building’s water lines (adjustable centers will help with the spacing). If mounting through the backsplash on a sink, the center measurement must also fit within the pre-drilled mounting holes.

Flex Hoses: If your faucet has flex hoses make sure that they will reach your building’s water lines.

Spout length: Make sure that the faucet spout will fit comfortably over your sink bowl and not extend too far / not far enough. If you plan to use a swing spout over a multi-bowl sink, make sure it will reach all of the bowls.
Ask your own question!
  • ADA Compliant

    ADA Compliant

    This item meets criteria established by the Americans with Disabilities Act (ADA).

  • ICC-ES ASME A112.18.1/CSA B125.1

    ICC-ES ASME A112.18.1/CSA B125.1

    This item has been tested by the ICC-ES to meet ASME A112.18.1/CSA B125.1 standards for plumbing fittings and fixtures.

  • U.S. Green Building Council (USGBC)

    U.S. Green Building Council (USGBC)

    This company is a certified USGBC member. The USGBC is an organization that promotes sustainable building practices, including saving energy, using fewer resources, and reducing waste.

  • ICC-ES Low Lead NSF/ANSI 372

    ICC-ES Low Lead NSF/ANSI 372

    This item has been tested by the ICC-ES to meet NSF/ANSI 372 standards for drinking water lead content.

  • NSF Listed

    NSF Listed

    This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.

  • ICC-ES Drinking Water NSF/ANSI 61, Section 9

    ICC-ES Drinking Water NSF/ANSI 61, Section 9

    This item has been tested by the ICC-ES to meet NSF/ANSI 61, Section 9 standards for drinking water.

  • Buy American Act Compliant

    Buy American Act Compliant

    This product complies with the provisions of the Buy American Act.

  • 1/2" Water Connection

    1/2" Water Connection

    This unit comes with a 1/2" water connection for water supply.
