Product Overview

  • Durable, cast brass construction and polished chrome finish
  • Stylish 9 1/2” L-type swing spout
  • Quixtop outlet with a single screen design that releases a full flow of water
  • Vandal-proof 2 3/8" lever handles are color coded for easy identification
  • Water-conserving pre-rinse spray valve that emits water at 1.0 GPM for pre-rinse applications
UPC Code:611943163501

Chicago Faucet Company 523-613-369ABCP Specs

Quantity
1/Each
Shipping Weight
14 lb.
Hose Length
23 Inches
Faucet Width
12 3/4 Inches
Faucet Height
22 3/4 Inches
Add-On Faucet
9 1/2 Inches
Add-On Type
Swing
Cartridge Type
Ceramic
Faucet Centers
8 Inches
Finish
Chrome
Handle Type
Lever
Material
Brass
Mounting Style
Wall Mounted
Mounting Type
Adjustable
Pre Rinse Unit Type
Mini Pre-Rinse Faucets
Pressure Rating
20 - 125 PSI
Spray Valve Flow Rate
1 GPM
Temperature Rating
40 - 140 Degrees F
Type
Faucets
Water Inlet Size
1/2 Inches

Chicago Faucet Company 523-613-369ABCP Details

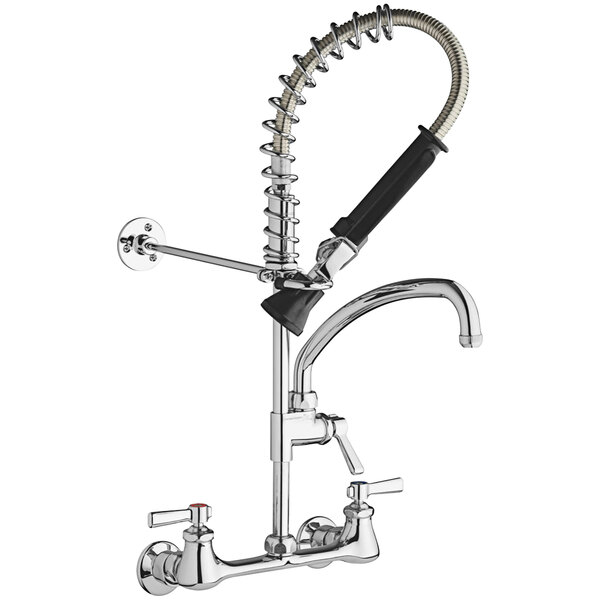

Optimize water efficiency and regulate usage by outfitting your sink with this Chicago Faucets wall-mounted mini pre-rinse faucet with 8" adjustable centers, 9 1/2" L-type swing spout, and 2 3/8" lever handles. Designed with a 9 1/2" L-type swing spout, this faucet combines functionality with style. This unit is equipped with a Quixtop outlet with a single screen design that releases a full flow of water. This unit has a rated operating pressure of 20 to 125 PSI and a rated operating temperature of 40 to 140 degrees Fahrenheit for optimal performance. With its durable, cast brass construction and polished chrome finish, this faucet has a total lead content of less than or equal to 0.25% for your safety. To deliver water from your main line to the faucet, this unit comes with a 23" stainless steel hose and handle assembly.

This model boasts an 8" body, adjustable arms, and 7 1/4" to 8 3/4" adjustable centers. The hot and cold, vandal-proof 2 3/8" lever handles are color coded for easy identification. Control water volume and prevent scalding with the help of the ceramic 1/4-turn operating cartridges with integrated check valves and Quaturn compression operating cartridge. For pre-rinse applications, this unit includes a water-conserving pre-rinse spray valve that emits water at 1.0 gallons per minute and an Adapta-Faucet integrated faucet. Plus, a 6 7/8" mini, pre-rinse riser is included to provide added height for your faucet. The wall-mounted design, 3/8" offset inlet supply arm, and 2 5/16" diameter slip flange make this unit easy to install. This unit also comes with a pipe strap and hook assembly for your convenience.

Overall Dimensions:
Faucet Height: 22 3/4"
Faucet Width: 12 3/4"
Add-On Faucet: 9 1/2"

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Customer questions about this product

Can I get a spray valve with a higher flow rate (GPM)?

A: The maximum flow rate for all commercial pre-rinse spray valves produced after January 28, 2019 is 1.28 GPM – more specific regulations may apply based on the valve’s spray force in ounce-force (ozf).

Product Class 1 (5 ozf or less) – Max Flow Rate: 1 GPM
Product Class 2 (5.01 - 8 ozf) – Max Flow Rate: 1.2 GPM
Product Class 3 (over 8 ozf) – Max Flow Rate: 1.28 GPM

These regulations do not impact spray valves made before January 28, 2019, and are implemented by the US Department of Energy in an effort to improve energy conservation.

How do I use a wall bracket to stabilize a pre-rinse faucet?

Pre-rinse faucets with a riser may include a wall bracket to help use the wall for added stability. Pre-rinse faucets without a riser will generally not include or need a wall bracket.

If your unit comes with a bracket, or you plan on adding one, the bracket can be installed at whatever height you prefer, but to be effective it should be placed far enough above the base so as to inhibit movement to the riser – placing too close to the base may make it ineffective.

If you intend to use a wall bracket, consider potential concerns with the installation location, such as shelving or windows behind the faucet, that might limit where you can place the bracket.

What measurements do I need to install a faucet?

When installing a faucet, these are some of the most common measurements you’ll need:

Faucet Centers: If your faucet has a base with 2 inlets, measure the distance from the center of one inlet to the center of the other. This number must match the spacing of your building’s water lines (adjustable centers will help with the spacing). If mounting through the backsplash on a sink, the center measurement must also fit within the pre-drilled mounting holes.

Flex Hoses: If your faucet has flex hoses make sure that they will reach your building’s water lines.

Spout length: Make sure that the faucet spout will fit comfortably over your sink bowl and not extend too far / not far enough. If you plan to use a swing spout over a multi-bowl sink, make sure it will reach all of the bowls.
Ask your own question!
  • U.S. Green Building Council (USGBC)

    U.S. Green Building Council (USGBC)

    This company is a certified USGBC member. The USGBC is an organization that promotes sustainable building practices, including saving energy, using fewer resources, and reducing waste.

  • Buy American Act Compliant

    Buy American Act Compliant

    This product complies with the provisions of the Buy American Act.

  • ICC-ES ASME A112.18.1/CSA B125.1

    ICC-ES ASME A112.18.1/CSA B125.1

    This item has been tested by the ICC-ES to meet ASME A112.18.1/CSA B125.1 standards for plumbing fittings and fixtures.

  • ICC-ES Low Lead NSF/ANSI 372

    ICC-ES Low Lead NSF/ANSI 372

    This item has been tested by the ICC-ES to meet NSF/ANSI 372 standards for drinking water lead content.

  • ICC-ES Drinking Water NSF/ANSI 61, Section 9

    ICC-ES Drinking Water NSF/ANSI 61, Section 9

    This item has been tested by the ICC-ES to meet NSF/ANSI 61, Section 9 standards for drinking water.

  • 1/2" Water Connection

    1/2" Water Connection

    This unit comes with a 1/2" water connection for water supply.
