Product Overview

  • Durable, cast brass construction and polished chrome finish
  • Vandal-proof 2 3/8" lever-style handle is color coded for easy identification
  • Control water flow and prevent leaks with the Quaturn compression operating cartridges
  • Stylish 21 1/4" double-jointed swing spout
  • Quixtop outlet with a single screen design that releases a full flow of water
UPC Code:611943548957

Chicago Faucet Company 516-ABCP Specs

Quantity
1/Each
Shipping Weight
6.86 lb.
Spout Length
21 1/4 Inches
Faucet Width
2 1/2 Inches
Faucet Height
35 Inches
Cartridge Type
Compression
Faucet Centers
Single
Finish
Chrome
Handle Type
Lever
Material
Brass
Mounting Style
Deck Mounted
Pressure Rating
125 PSI
Spout Clearance
32 3/4 Inches
Spout Type
Double Jointed
Temperature Rating
40 - 140 Degrees F
Type
Pot / Kettle Fillers
Water Inlet Size
1/2 Inches

Chicago Faucet Company 516-ABCP Details

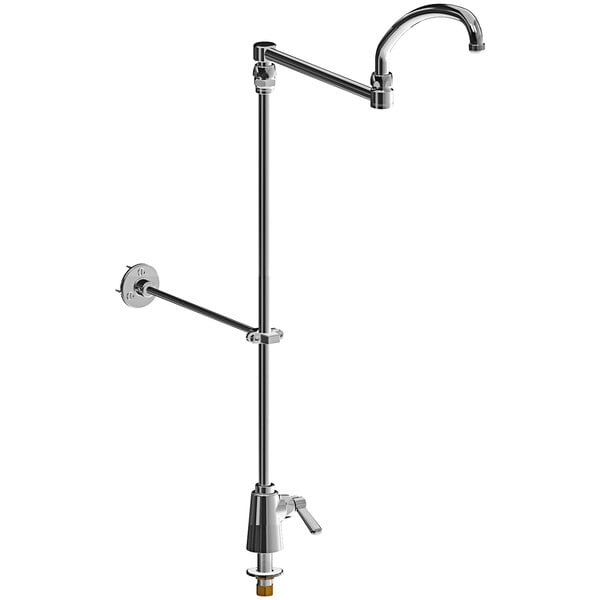

Optimize water efficiency and regulate usage by outfitting your sink with this Chicago Faucets deck-mounted pot and kettle filler with 21 1/4" double-jointed swing spout. Designed with a 21 1/4" double-jointed swing spout, this faucet combines functionality with style. This unit is equipped with a Quixtop outlet with a single screen design that releases a full flow of water. This unit has a rated operating pressure of 20 to 125 PSI and a rated operating temperature of 40 to 140 degrees Fahrenheit for optimal performance.

With its durable, cast brass construction and polished chrome finish, this faucet has a total lead content of less than or equal to 0.25% for your safety. The hot and cold, vandal-proof 2 3/8" lever handle is color coded for easy identification. Control water flow and prevent leaks with the help of the Quaturn compression operating cartridge. The single-hole, deck-mounted design and included pipe strap make this model easy to install.

Overall Dimensions:
Spout Length: 21 1/4"
Faucet Height: 35"
Faucet Width: 2 1/2"

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Customer questions about this product

What measurements do I need to install a faucet?

When installing a faucet, these are some of the most common measurements you’ll need:

Faucet Centers: If your faucet has a base with 2 inlets, measure the distance from the center of one inlet to the center of the other. This number must match the spacing of your building’s water lines (adjustable centers will help with the spacing). If mounting through the backsplash on a sink, the center measurement must also fit within the pre-drilled mounting holes.

Flex Hoses: If your faucet has flex hoses make sure that they will reach your building’s water lines.

Spout length: Make sure that the faucet spout will fit comfortably over your sink bowl and not extend too far / not far enough. If you plan to use a swing spout over a multi-bowl sink, make sure it will reach all of the bowls.
Ask your own question!
  • U.S. Green Building Council (USGBC)

    U.S. Green Building Council (USGBC)

    This company is a certified USGBC member. The USGBC is an organization that promotes sustainable building practices, including saving energy, using fewer resources, and reducing waste.

  • ICC-ES ASME A112.18.1/CSA B125.1

    ICC-ES ASME A112.18.1/CSA B125.1

    This item has been tested by the ICC-ES to meet ASME A112.18.1/CSA B125.1 standards for plumbing fittings and fixtures.

  • Buy American Act Compliant

    Buy American Act Compliant

    This product complies with the provisions of the Buy American Act.

  • ICC-ES Low Lead NSF/ANSI 372

    ICC-ES Low Lead NSF/ANSI 372

    This item has been tested by the ICC-ES to meet NSF/ANSI 372 standards for drinking water lead content.

  • ICC-ES Drinking Water NSF/ANSI 61, Section 9

    ICC-ES Drinking Water NSF/ANSI 61, Section 9

    This item has been tested by the ICC-ES to meet NSF/ANSI 61, Section 9 standards for drinking water.

  • 1/2" Water Connection

    1/2" Water Connection

    This unit comes with a 1/2" water connection for water supply.
