$468.99/Each

Ships free with Plus

Earn up to $14.07 back (1,407 points)with a Webstaurant Rewards Visa® Credit Card

Special Order Shipping

An estimated delivery date will be provided after placing the order

Product Overview

  • Durable, cast brass construction and polished chrome finish
  • Vandal-proof 2 3/8" lever-style handles are color coded for easy identification
  • Control water flow and prevent leaks with the ceramic 1/4-turn operating cartridge
  • Kettle filler valve emits full flow of water
  • Vacuum breaker assembly prevents water pollution
UPC Code:611943136482

Chicago Faucet Company 512-GXKCABCP Specs

Quantity
1/Each
Shipping Weight
8.28 lb.
Hose Length
58 Inches
Faucet Width
12 3/4 Inches
Faucet Height
3 5/8 Inches
Cartridge Type
Ceramic
Faucet Centers
8 Inches
Features
Vacuum Breaker
Finish
Chrome
Handle Type
Lever
Material
Brass
Mounting Style
Wall Mounted
Mounting Type
Adjustable
Pressure Rating
125 PSI
Spout Type
Hose and Fill Valve
Temperature Rating
40 - 140 Degrees F
Type
Pot / Kettle Fillers
Water Inlet Size
1/2 Inches

Chicago Faucet Company 512-GXKCABCP Details

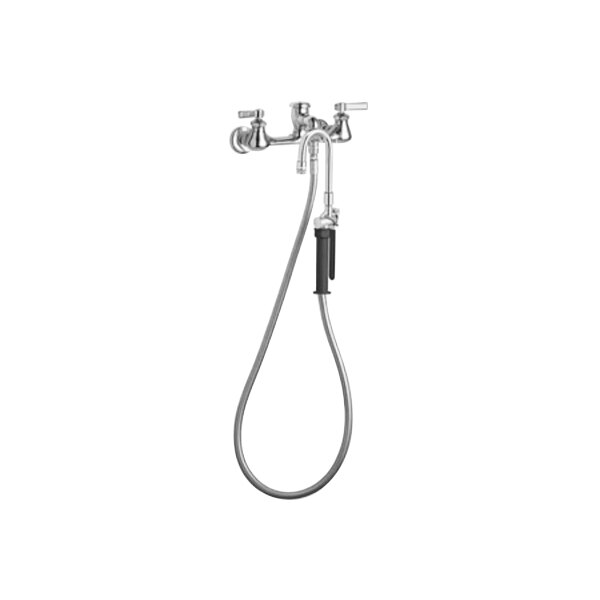

Optimize water efficiency and regulate usage by outfitting your sink with this Chicago Faucets wall-mounted pot and kettle filler with adjustable centers. This model is equipped with a kettle filler valve that emits a full flow of water. This unit has a rated operating pressure of 20 to 125 PSI and a rated operating temperature of 40 to 140 degrees Fahrenheit for optimal performance. With its durable, cast brass construction and polished chrome finish, this model has a total lead content of less than or equal to 0.25% for your safety. Prevent water pollution with the help of the vacuum breaker assembly and 1/2" NPT female thread inlet.

This model boasts an 8" body, adjustable arms, and 7 1/4" to 8 3/4" adjustable centers. The hot and cold, vandal-proof 2 3/8" lever handles are color coded for easy identification. Control water volume and prevent scalding with the help of the ceramic 1/4-turn operating cartridge with integrated check valve. The wall-mounted design, 3/8" offset inlet supply arm, and 2 5/16" diameter slip flange make this unit easy to install.

Overall Dimensions:
Faucet Height: 3 5/8"
Faucet Width: 12 3/4"

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Customer questions about this product

What measurements do I need to install a faucet?

When installing a faucet, these are some of the most common measurements you’ll need:

Faucet Centers: If your faucet has a base with 2 inlets, measure the distance from the center of one inlet to the center of the other. This number must match the spacing of your building’s water lines (adjustable centers will help with the spacing). If mounting through the backsplash on a sink, the center measurement must also fit within the pre-drilled mounting holes.

Flex Hoses: If your faucet has flex hoses make sure that they will reach your building’s water lines.

Spout length: Make sure that the faucet spout will fit comfortably over your sink bowl and not extend too far / not far enough. If you plan to use a swing spout over a multi-bowl sink, make sure it will reach all of the bowls.
Ask your own question!
  • ICC-ES ASME A112.18.1/CSA B125.1

    ICC-ES ASME A112.18.1/CSA B125.1

    This item has been tested by the ICC-ES to meet ASME A112.18.1/CSA B125.1 standards for plumbing fittings and fixtures.

  • Buy American Act Compliant

    Buy American Act Compliant

    This product complies with the provisions of the Buy American Act.

  • ICC-ES Low Lead NSF/ANSI 372

    ICC-ES Low Lead NSF/ANSI 372

    This item has been tested by the ICC-ES to meet NSF/ANSI 372 standards for drinking water lead content.

  • ICC-ES Drinking Water NSF/ANSI 61, Section 9

    ICC-ES Drinking Water NSF/ANSI 61, Section 9

    This item has been tested by the ICC-ES to meet NSF/ANSI 61, Section 9 standards for drinking water.

  • U.S. Green Building Council (USGBC)

    U.S. Green Building Council (USGBC)

    This company is a certified USGBC member. The USGBC is an organization that promotes sustainable building practices, including saving energy, using fewer resources, and reducing waste.

  • 1/2" Water Connection

    1/2" Water Connection

    This unit comes with a 1/2" water connection for water supply.
