Name: Chicago Faucets 509-GVBL12XKCAB Wall-Mounted Pre-Rinse Faucet with Adjustable Centers and 12" L-Type Swing Spout
Brand: Chicago Faucet Company
SKU: 857509GVBL12KB
Price: 439.99 USD
Availability: InStock

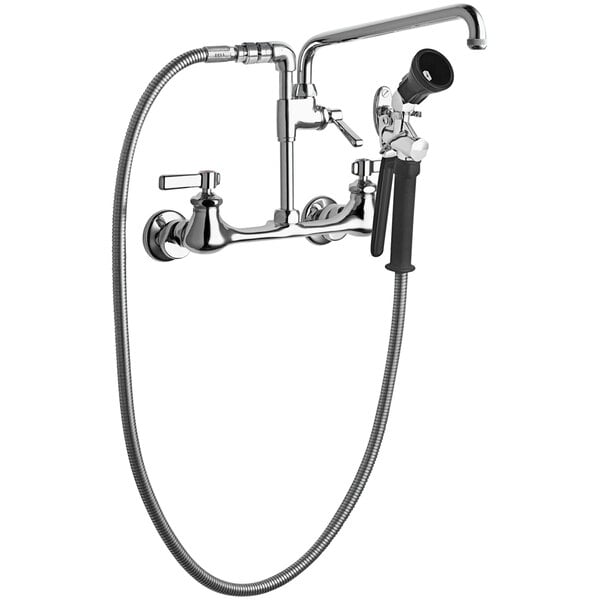

A Chicago Faucets wall-mounted pre-rinse faucet with a hose attachment.

Only

$439.99/Each

Ships free with Plus

Earn up to $13.20 back (1,320 points)with a Webstaurant Rewards Visa® Credit Card

Quick Shipping

Usually ships in 1 business day

Product Overview

Durable, cast brass construction and polished chrome finish
Stylish 12” L-type swing spout
Quixtop outlet with a single screen design that releases a full flow of water
Hot and cold, vandal-proof 2 3/8” lever-style handles are color-coded for easy identification
60” stainless steel hose and handle assembly delivers water from main line to faucet

UPC Code:611943136802

View all Chicago Faucet Company Pre-Rinse Faucets

Quantity: 1/Each
Shipping Weight: 9.91 lb.
Hose Length: 60 Inches
Faucet Width: 12 3/4 Inches
Faucet Height: 10 7/8 Inches
Add-On Faucet: 12 Inches
Add-On Type: Swing
Cartridge Type: Ceramic
Faucet Centers: 8 Inches
Finish: Chrome
Handle Type: Lever
Material: Brass
Mounting Style: Wall Mounted
Mounting Type: Adjustable
Pre Rinse Unit Type: No Riser
Pressure Rating: 20 - 125 PSI
Spout Type: Swing
Spray Valve Flow Rate: 1 GPM
Type: Faucets
Water Inlet Size: 1/2 Inches

Customer questions about this product

Can I get a spray valve with a higher flow rate (GPM)?

A: The maximum flow rate for all commercial pre-rinse spray valves produced after January 28, 2019 is 1.28 GPM – more specific regulations may apply based on the valve’s spray force in ounce-force (ozf).

Product Class 1 (5 ozf or less) – Max Flow Rate: 1 GPM
Product Class 2 (5.01 - 8 ozf) – Max Flow Rate: 1.2 GPM
Product Class 3 (over 8 ozf) – Max Flow Rate: 1.28 GPM

These regulations do not impact spray valves made before January 28, 2019, and are implemented by the US Department of Energy in an effort to improve energy conservation.

What measurements do I need to install a faucet?

When installing a faucet, these are some of the most common measurements you’ll need:

Faucet Centers: If your faucet has a base with 2 inlets, measure the distance from the center of one inlet to the center of the other. This number must match the spacing of your building’s water lines (adjustable centers will help with the spacing). If mounting through the backsplash on a sink, the center measurement must also fit within the pre-drilled mounting holes.

Flex Hoses: If your faucet has flex hoses make sure that they will reach your building’s water lines.

Spout length: Make sure that the faucet spout will fit comfortably over your sink bowl and not extend too far / not far enough. If you plan to use a swing spout over a multi-bowl sink, make sure it will reach all of the bowls.

Ask your own question!

Chicago Faucet Company 509-GVBL12XKCAB Details

Optimize water efficiency and regulate usage by outfitting your sink with this Chicago Faucets wall-mounted pre-rinse faucet with adjustable centers and 12" L-type swing spout. Designed with a 12" L-type swing spout, this faucet combines functionality with style. This unit is equipped with a Quixtop outlet with a single screen design that releases a full flow of water. This unit has a rated operating pressure of 20 to 125 PSI and a rated operating temperature of 40 to 140 degrees Fahrenheit for optimal performance. With its durable, cast brass construction and polished chrome finish, this faucet has a total lead content of less than or equal to 0.25% for your safety. For pre-rinse applications, this unit includes a water-conserving pre-rinse spray valve that emits water at 1.0 GPM.

It boasts an 8" body, adjustable arms, and 7 1/4" to 8 3/4" adjustable centers with 1/2" NPT female connections for fast and easy installation. To deliver water from your main line to the faucet, this unit comes with a 60" stainless steel hose and handle assembly. The hot and cold, vandal-proof 2 3/8" lever-style handles are color coded for easy identification. Control water flow and prevent leaks with the help of the ceramic 1/4-turn operating cartridges and Quaturn compression operating cartridge. Prevent water pollution with the help of the inline vacuum breaker with dual checks and the 3/8" offset inlet supply arm. Plus, the wall-mounted design and the 2 5/16" diameter slip flange make this model easy to install.

Overall Dimensions:
Faucet Width: 12 3/4"
Faucet Height: 10 7/8"
Add-On Faucet: 12"

Attention CA Residents:

U.S. Green Building Council (USGBC)
This company is a certified USGBC member. The USGBC is an organization that promotes sustainable building practices, including saving energy, using fewer resources, and reducing waste.
Buy American Act Compliant
This product complies with the provisions of the Buy American Act.
ICC-ES ASME A112.18.1/CSA B125.1
This item has been tested by the ICC-ES to meet ASME A112.18.1/CSA B125.1 standards for plumbing fittings and fixtures.
ICC-ES Low Lead NSF/ANSI 372
This item has been tested by the ICC-ES to meet NSF/ANSI 372 standards for drinking water lead content.
ICC-ES Drinking Water NSF/ANSI 61, Section 9
This item has been tested by the ICC-ES to meet NSF/ANSI 61, Section 9 standards for drinking water.
1/2" Water Connection
This unit comes with a 1/2" water connection for water supply.
