$84.99/Each

This product is no longer available. We've left this page up for reference only.

Special Order Shipping

An estimated delivery date will be provided after placing the order

Product Overview

  • 6" height swing spout
  • Pressure compensating, laminar flow non-aerating outlet releases water at 1.5 GPM
  • Vandal-proof lever handle for 430 series kitchen faucets
  • Easy-to-install pop-up waste assembly
  • User-adjustable temperature control mixer
UPC Code:611943473303

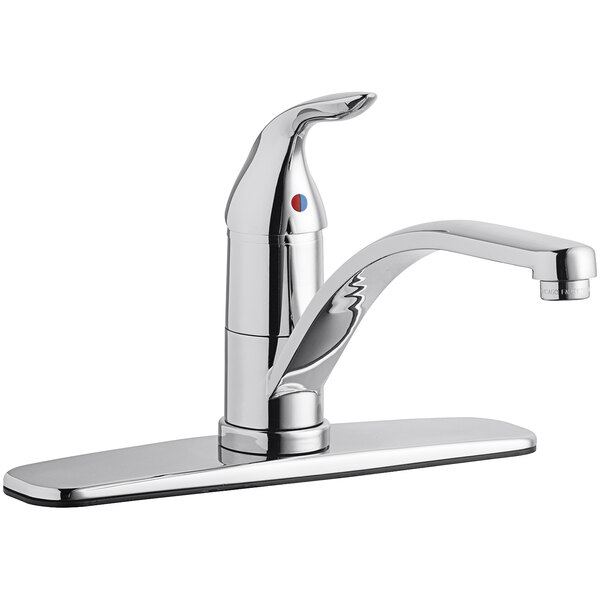

Chicago Faucet Company 431-ABCP Specs

Quantity
1/Each
Shipping Weight
3.54 lb.
Spout Length
8 Inches
Faucet Width
10 1/4 Inches
Faucet Height
6 7/8 Inches
Spout Height
6 Inches
Cartridge Type
Ceramic
Faucet Centers
8 Inches
Finish
Chrome
Flow Rate
1.5 GPM
Handle Type
Lever
Installation Type
Deck Mounted
Material
Brass
Mounting Style
Deck Mounted
Mounting Type
Adjustable
Pressure Rating
20 - 125 PSI
Spout Clearance
5 1/8 Inches
Spout Type
Swing
Temperature Rating
40 - 140 Degrees F
Type
Faucets
Water Inlet Size
1/2 Inches

Chicago Faucet Company 431-ABCP Details

Optimize water efficiency and regulate usage by outfitting your sink with this Chicago Faucets 1.5 GPM deck-mounted faucet with 8" centers and 6" swing spout. The faucet features a 6" height swing spout with a pressure compensating, laminar flow non-aerating outlet that releases a gentle flow of water at 1.5 GPM. The hot and cold, vandal-proof lever handle for 430 series kitchen faucets is color coded for easy identification. The single-lever handle design also makes it easy for guests to maintain a comfortable water temperature without having to adjust multiple handles. This model includes a pop-up waste assembly that is easy to use and quick to install on your faucet. This unit has a rated operating pressure of 20 to 125 PSI and a rated operating temperature of 40 to 140 degrees Fahrenheit for optimal performance. With its durable, cast brass construction and polished chrome finish, this faucet has a total lead content of less than or equal to 0.25% for your safety.

Control water flow and prevent leaks with the help of the ceramic operating cartridge with volume control and hot water limit stop. The hot water limit stop prevents the hot water from being turned on too far, minimizing the risk of accidental scalding. This model is equipped with a user-adjustable temperature control mixer that combines hot and cold water right at the spout for instant water patrons will be thankful for! Developed with the utmost convenience in mind, the deck-mounted design is easy to install and simple to maintain. The faucet installs on your sink deck or countertop on a pair of 8" fixed centers and connects to the water lines with a set of 1/2" NPSM inlets for a 3/8" or 1/2" flexible riser. Able to withstand daily wear and tear, trust this Chicago Faucet product to get the job done right!

Overall Dimensions:
Spout Length: 8"
Faucet Height: 6 7/8"
Faucet Width: 10 1/4"

Attention CA Residents:

Customer questions about this product

Can I use this product to serve drinking water?

This product is not intended for use in applications where potable (drinking) water is dispensed for human consumption.

What measurements do I need to install a faucet?

When installing a faucet, these are some of the most common measurements you’ll need:

Faucet Centers: If your faucet has a base with 2 inlets, measure the distance from the center of one inlet to the center of the other. This number must match the spacing of your building’s water lines (adjustable centers will help with the spacing). If mounting through the backsplash on a sink, the center measurement must also fit within the pre-drilled mounting holes.

Flex Hoses: If your faucet has flex hoses make sure that they will reach your building’s water lines.

Spout length: Make sure that the faucet spout will fit comfortably over your sink bowl and not extend too far / not far enough. If you plan to use a swing spout over a multi-bowl sink, make sure it will reach all of the bowls.
Ask your own question!
  • U.S. Green Building Council (USGBC)

    U.S. Green Building Council (USGBC)

    This company is a certified USGBC member. The USGBC is an organization that promotes sustainable building practices, including saving energy, using fewer resources, and reducing waste.

  • CalGreen Compliant

    CalGreen Compliant

    This product is compliant with California's CalGreen Green Building Standards Code.

  • EPA WaterSense

    EPA WaterSense

    This item is certified by the EPA's WaterSense program to meet its standards for water use. WaterSense-labeled products are certified to use at least 20 percent less water, save energy, and perform as well as or better than regular models.

  • 1/2" Water Connection

    1/2" Water Connection

    This unit comes with a 1/2" water connection for water supply.
