$342.49/Each

Ships free with Plus

Earn up to $10.27 back (1,027 points)with a Webstaurant Rewards Visa® Credit Card

Special Order Shipping

An estimated delivery date will be provided after placing the order

Product Overview

  • Durable, cast brass construction and polished chrome finish
  • Pressure compensating Econo-Flo laminar spray; releases water at 0.5 GPM
  • External, thermostatic mixing valve maintains a moderate water temperature
  • Vandal-proof 4 1/4” lever handle is color coded for easy identification
  • Single hole for deck mounting
UPC Code:611943136024

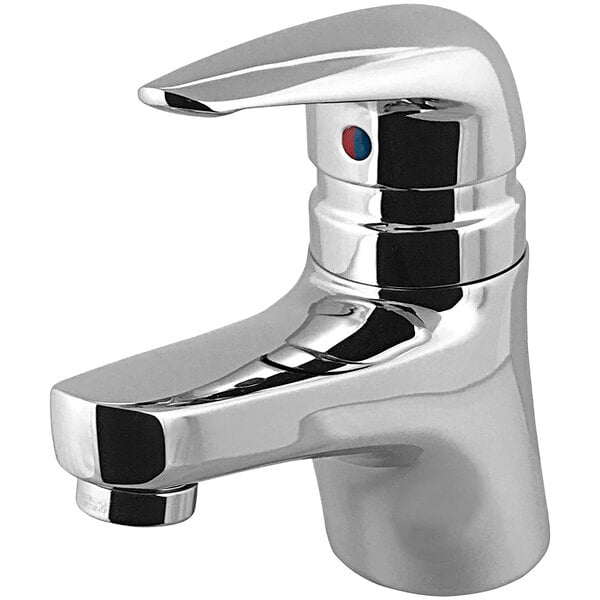

Chicago Faucet Company 410-T41E2805ABCP Specs

Quantity
1/Each
Shipping Weight
4.17 lb.
Spout Length
4 1/2 Inches
Faucet Width
2 3/8 Inches
Faucet Height
6 Inches
Faucet Centers
Single
Features
ADA Compliant  Flex Inlets Included
Finish
Chrome
Flow Rate
0.5 GPM
Handle Type
Lever
Material
Brass
Mounting Style
Deck Mounted
Pressure Rating
20 - 125 PSI
Spout Clearance
2 3/4 Inches
Spout Type
Cast
Temperature Rating
180 Degrees F
Type
Faucets
Water Inlet Size
3/8 Inches

Chicago Faucet Company 410-T41E2805ABCP Details

Optimize water efficiency and regulate usage by outfitting your sink with this Chicago Faucets deck-mounted single-hole manual sink faucet. This unit is equipped with a pressure compensating, Econo-Flo non-aerating laminar spray that releases a clear, non-splashing flow of water at 0.5 GPM. This unit has a rated operating pressure of 20 to 125 PSI. It has a hot inlet temperature of 100 to 180 degrees Fahrenheit, a maximum output temperature of 107 degrees Fahrenheit, and a minimum approved flow rate for temperature limiting of 0.35 GPM.

This faucet includes an external, thermostatic mixing valve to maintain a moderate water temperature. The hot and cold, vandal-proof 4 1/4" lever handle is color coded for easy identification. This model has a single hole for deck mounting, and it uses 1/2" NPSM supply inlets and a coupling nut suitable for 3/8" or 1/2" risers. To cover unused mounting holes, 4" and 8" accessory plates are available for purchase.

Overall Dimensions:
Spout Length: 4 1/2"
Faucet Height: 6"
Faucet Width: 2 3/8"

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Customer questions about this product

Can I use this product to serve drinking water?

This product is not intended for use in applications where potable (drinking) water is dispensed for human consumption.

What measurements do I need to install a faucet?

When installing a faucet, these are some of the most common measurements you’ll need:

Faucet Centers: If your faucet has a base with 2 inlets, measure the distance from the center of one inlet to the center of the other. This number must match the spacing of your building’s water lines (adjustable centers will help with the spacing). If mounting through the backsplash on a sink, the center measurement must also fit within the pre-drilled mounting holes.

Flex Hoses: If your faucet has flex hoses make sure that they will reach your building’s water lines.

Spout length: Make sure that the faucet spout will fit comfortably over your sink bowl and not extend too far / not far enough. If you plan to use a swing spout over a multi-bowl sink, make sure it will reach all of the bowls.
Ask your own question!
  • ADA Compliant

    ADA Compliant

    This item meets criteria established by the Americans with Disabilities Act (ADA).

  • U.S. Green Building Council (USGBC)

    U.S. Green Building Council (USGBC)

    This company is a certified USGBC member. The USGBC is an organization that promotes sustainable building practices, including saving energy, using fewer resources, and reducing waste.

  • ICC-ES ASME A112.18.1/CSA B125.1

    ICC-ES ASME A112.18.1/CSA B125.1

    This item has been tested by the ICC-ES to meet ASME A112.18.1/CSA B125.1 standards for plumbing fittings and fixtures.

  • ICC-ES Low Lead NSF/ANSI 372

    ICC-ES Low Lead NSF/ANSI 372

    This item has been tested by the ICC-ES to meet NSF/ANSI 372 standards for drinking water lead content.

  • ICC-ES Drinking Water NSF/ANSI 61, Section 9

    ICC-ES Drinking Water NSF/ANSI 61, Section 9

    This item has been tested by the ICC-ES to meet NSF/ANSI 61, Section 9 standards for drinking water.

  • 3/8" Water Connection

    3/8" Water Connection

    This unit comes with a 3/8" water connection for water supply.
