$204.99/Each

Ships free with Plus

Earn up to $6.15 back (615 points)with a Webstaurant Rewards Visa® Credit Card

Size: 24"

Special Order Shipping

An estimated delivery date will be provided after placing the order

Product Overview

  • 23 3/4" double-jointed swing spout with full flow outlet
  • Wall-mounted, single hole with 1/2" NPSM inlet
  • Quaturn compression operating cartridge with 90-degee turn
  • High-quality, polished chrome finish
  • 2 3/8" lever handle with color-coded index
UPC Code:611943549268

Chicago Faucet Company 334-DJ24ABCP Specs

Quantity
1/Each
Shipping Weight
3.88 lb.
Spout Length
23 3/4 Inches
Faucet Height
7 1/2 Inches
Cartridge Type
Compression
Faucet Centers
Single
Finish
Chrome
Handle Type
Lever
Material
Brass
Mounting Style
Wall Mounted
Pressure Rating
125 PSI
Spout Clearance
5 5/8 Inches
Spout Type
Double Jointed
Temperature Rating
40 - 140 Degrees F
Type
Wok Fillers
Water Inlet Size
1/2 Inches

Chicago Faucet Company 334-DJ24ABCP Details

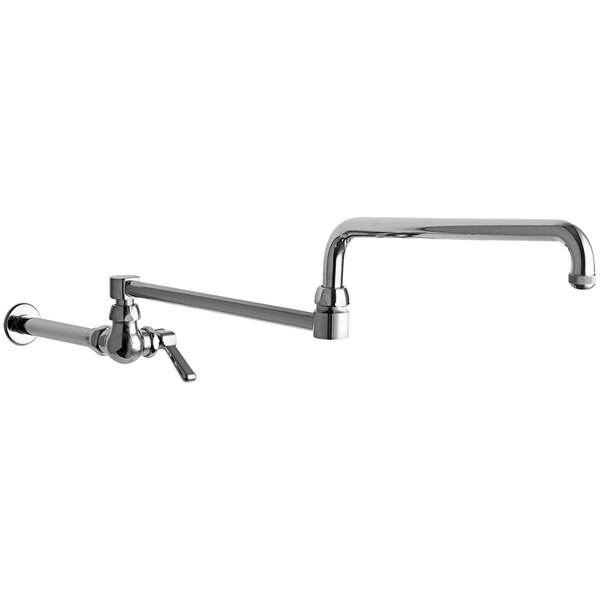

Easily fill woks and bulky pots with water using this Chicago Faucets 334-DJ24ABCP wall-mounted wok filler faucet. The faucet features a 23 3/4" double-jointed swing spout with a Quixtop outlet that releases a full flow of water. This double-jointed design provides a greater range of motion, with the added benefit of allowing you to fold it out of the way. Thanks to the wall-mounted design, this unit can be installed directly above the cooking area with a 1/2" NPSM male inlet. For further convenience, the 2 3/8" lever handle features a color-coded index to avoid confusion and ensure a safe water temperature. The assembly comes complete with a heavy-duty Quaturn compression operating cartridge designed for commercial use.

Overall Dimensions:
Spout Length: 23 3/4"
Faucet Height: 7 1/2"

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Customer questions about this product

What measurements do I need to install a faucet?

When installing a faucet, these are some of the most common measurements you’ll need:

Faucet Centers: If your faucet has a base with 2 inlets, measure the distance from the center of one inlet to the center of the other. This number must match the spacing of your building’s water lines (adjustable centers will help with the spacing). If mounting through the backsplash on a sink, the center measurement must also fit within the pre-drilled mounting holes.

Flex Hoses: If your faucet has flex hoses make sure that they will reach your building’s water lines.

Spout length: Make sure that the faucet spout will fit comfortably over your sink bowl and not extend too far / not far enough. If you plan to use a swing spout over a multi-bowl sink, make sure it will reach all of the bowls.
Ask your own question!
  • U.S. Green Building Council (USGBC)

    U.S. Green Building Council (USGBC)

    This company is a certified USGBC member. The USGBC is an organization that promotes sustainable building practices, including saving energy, using fewer resources, and reducing waste.

  • Buy American Act Compliant

    Buy American Act Compliant

    This product complies with the provisions of the Buy American Act.

  • ICC-ES ASME A112.18.1/CSA B125.1

    ICC-ES ASME A112.18.1/CSA B125.1

    This item has been tested by the ICC-ES to meet ASME A112.18.1/CSA B125.1 standards for plumbing fittings and fixtures.

  • ICC-ES Drinking Water NSF/ANSI 61, Section 9

    ICC-ES Drinking Water NSF/ANSI 61, Section 9

    This item has been tested by the ICC-ES to meet NSF/ANSI 61, Section 9 standards for drinking water.

  • ICC-ES Low Lead NSF/ANSI 372

    ICC-ES Low Lead NSF/ANSI 372

    This item has been tested by the ICC-ES to meet NSF/ANSI 372 standards for drinking water lead content.

  • ADA Compliant

    ADA Compliant

    This item meets criteria established by the Americans with Disabilities Act (ADA).

  • 1/2" Water Connection

    1/2" Water Connection

    This unit comes with a 1/2" water connection for water supply.
