$312.49/Each

Ships free with Plus

Earn up to $9.37 back (937 points)with a Webstaurant Rewards Visa® Credit Card

Special Order Shipping

An estimated delivery date will be provided after placing the order

Product Overview

  • Durable, cast brass construction and rough chrome finish
  • Vandal-proof 2 3/8" lever-style handles are color coded for easy identification
  • Quaturn compression operating cartridges control water flow and prevent leaks
  • 3 3/8" body, adjustable arms, and 3" to 8 3/8" adjustable centers
  • Wall-mounted design is easy to install
UPC Code:611943120139

Chicago Faucet Company 305-VBRRCF Specs

Quantity
1/Each
Shipping Weight
5.75 lb.
Spout Length
2 3/8 Inches
Faucet Height
3 3/4 Inches
Cartridge Type
Compression
Faucet Centers
3 - 8 3/8 Inches
Features
Vacuum Breaker
Finish
Chrome
Handle Type
Lever
Material
Brass
Mounting Style
Wall Mounted
Mounting Type
Adjustable
Pressure Rating
20 - 125 PSI
Spout Clearance
1 Inch
Temperature Rating
40 - 140 Degrees F
Type
Faucets
Water Inlet Size
1/2 Inches

Chicago Faucet Company 305-VBRRCF Details

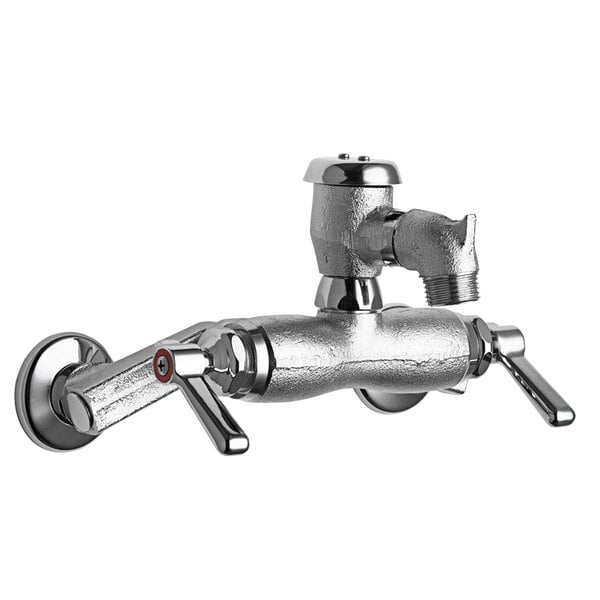

Optimize water efficiency and regulate usage by outfitting your sink with this Chicago Faucets wall-mounted service sink faucet with adjustable centers and 1/2" NPT female thread inlet. This unit has a rated operating pressure of 20 to 125 PSI and a rated operating temperature of 40 to 140 degrees Fahrenheit for optimal performance. With its rough chrome finish, this faucet is durable enough for long-term use. The 2 3/8" rigid atmospheric vacuum breaker spout with 3/4" male hose thread and 2 1/2" offset inlet supply arm with integral shutoff stop help prevent contamination of your water supply. Equipped with a 1/2" NPT female thread inlet, this product is made for quick and easy installations.

It boasts a 3 3/8" body, adjustable arms, and 3" to 8 3/8" adjustable centers that allow it to match the centers on your sink or mounting surface with ease. The hot and cold, vandal-proof 2 3/8" lever-style handles are color coded for easy identification. Control water flow and prevent leaks with the help of the Quaturn compression operating cartridges. Plus, the wall-mounted design makes this model easy to install.

Overall Dimensions:
Spout Length: 2 3/8"
Faucet Height: 3 3/4"

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Customer questions about this product

Can I use this product to serve drinking water?

This product is not intended for use in applications where potable (drinking) water is dispensed for human consumption.

What measurements do I need to install a faucet?

When installing a faucet, these are some of the most common measurements you’ll need:

Faucet Centers: If your faucet has a base with 2 inlets, measure the distance from the center of one inlet to the center of the other. This number must match the spacing of your building’s water lines (adjustable centers will help with the spacing). If mounting through the backsplash on a sink, the center measurement must also fit within the pre-drilled mounting holes.

Flex Hoses: If your faucet has flex hoses make sure that they will reach your building’s water lines.

Spout length: Make sure that the faucet spout will fit comfortably over your sink bowl and not extend too far / not far enough. If you plan to use a swing spout over a multi-bowl sink, make sure it will reach all of the bowls.
Ask your own question!
  • U.S. Green Building Council (USGBC)

    U.S. Green Building Council (USGBC)

    This company is a certified USGBC member. The USGBC is an organization that promotes sustainable building practices, including saving energy, using fewer resources, and reducing waste.

  • Buy American Act Compliant

    Buy American Act Compliant

    This product complies with the provisions of the Buy American Act.

  • ICC-ES ASME A112.18.1/CSA B125.1

    ICC-ES ASME A112.18.1/CSA B125.1

    This item has been tested by the ICC-ES to meet ASME A112.18.1/CSA B125.1 standards for plumbing fittings and fixtures.

  • 1/2" Water Connection

    1/2" Water Connection

    This unit comes with a 1/2" water connection for water supply.
