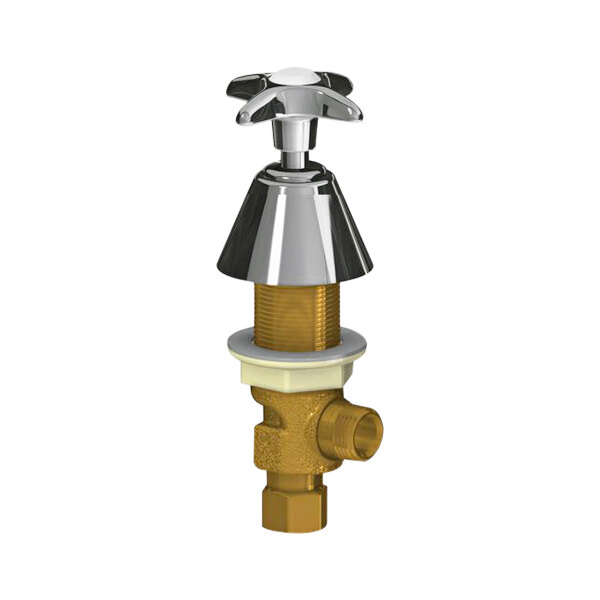

Chicago Faucets 1305-PLCP Remote Water Valve

Item number  8571305plcpMFR number  1305-PLCP

This Product is no longer available

Browse our full selection
See more products

$138.49/Each

This product is no longer available. We've left this page up for reference only.

Product Overview

  • Durable, cast brass construction and polished chrome finish
  • 1/2" NPT female thread inlet and a 1/2" NPT female thread outlet
  • Slow compression Control-A-Flo operating cartridge controls water flow and prevent leaks
  • Vandal-proof 2 1/2" cross handle easily dispenses water.
  • Quick, hassle-free installation

UPC Code:611943226909

View All Products From Chicago Faucet CompanyView all Chicago Faucet Company Laboratory Faucet Parts and Accessories

Chicago Faucet Company 1305-PLCP Specs

Quantity
1/Each
Shipping Weight
2.5 lb.
Length
2 1/4 Inches
Height
2 7/8 Inches
Maximum PSI
125 PSI
Type
Mechanical Parts Valve Parts
Water Inlet Size
1/2 Inches

Chicago Faucet Company 1305-PLCP Details

Outfit your faucet with this Chicago Faucets remote water valve. Equipped with a 1/2" NPT female thread inlet and a 1/2" NPT female thread outlet, this valve is made for quick and easy installation. With its durable chrome-plated construction and polished chrome finish, this valve is suitable for long-term use.

This unit has a rated operating pressure of 20 to 125 PSI and a rated operating temperature of 40 to 140 degrees Fahrenheit for optimal performance. It includes a 1/2" copper sweat and a 13/16"-14 UNS-2A male thread for diverse connectivity options. Control water flow and prevent leaks with the help of the slow compression Control-A-Flo operating cartridge. The vandal-proof 2 1/2" cross handle easily dispenses water. This valve uses 1/2" NPSM supply inlets and a coupling nut suitable for 3/8" or 1/2" risers.

Overall Dimensions:
Height: 2 7/8"
Width: 2 1/4"

Attention CA Residents:
  • U.S. Green Building Council (USGBC)

    U.S. Green Building Council (USGBC)

    This company is a certified USGBC member. The USGBC is an organization that promotes sustainable building practices, including saving energy, using fewer resources, and reducing waste.

  • Buy American Act Compliant

    Buy American Act Compliant

    This product complies with the provisions of the Buy American Act.

  • ICC-ES ASME A112.18.1/CSA B125.1

    ICC-ES ASME A112.18.1/CSA B125.1

    This item has been tested by the ICC-ES to meet ASME A112.18.1/CSA B125.1 standards for plumbing fittings and fixtures.

  • ICC-ES Drinking Water NSF/ANSI 61, Section 9

    ICC-ES Drinking Water NSF/ANSI 61, Section 9

    This item has been tested by the ICC-ES to meet NSF/ANSI 61, Section 9 standards for drinking water.

  • 1/2" Water Connection

    1/2" Water Connection

    This unit comes with a 1/2" water connection for water supply.
