$236.99/Each

Ships free with Plus

Earn up to $7.11 back (711 points)with a Webstaurant Rewards Visa® Credit Card

Special Order Shipping

An estimated delivery date will be provided after placing the order

Product Overview

  • Durable, cast brass construction and polished chrome finish
  • Pressure compensating Softflo aerator that releases a soft, non-splashing flow of water at 1.5 GPM
  • 8” fixed centers that allow it to match the centers on your sink or mounting surface with ease
  • Stylish 8” rigid / swing gooseneck spout
  • Vandal-proof 4” wristblade handles are color coded for easy identification
UPC Code:611943579463

Chicago Faucet Company 1100-GN8AE35-317AB Specs

Quantity
1/Each
Shipping Weight
5.39 lb.
Spout Length
8 Inches
Faucet Width
16 Inches
Faucet Height
13 1/2 Inches
Cartridge Type
Compression
Faucet Centers
8 Inches
Finish
Chrome
Flow Rate
1.5 GPM
Handle Type
Wrist
Material
Brass
Mounting Style
Deck Mounted
Mounting Type
Workboard
Pressure Rating
20 - 125 PSI
Rough In
8 Inches
Spout Clearance
8 Inches
Spout Type
Gooseneck
Sprayer
Without Sprayer
Temperature Rating
40 - 140 Degrees F
Type
Faucets
Water Inlet Size
1/2 Inches

Chicago Faucet Company 1100-GN8AE35-317AB Details

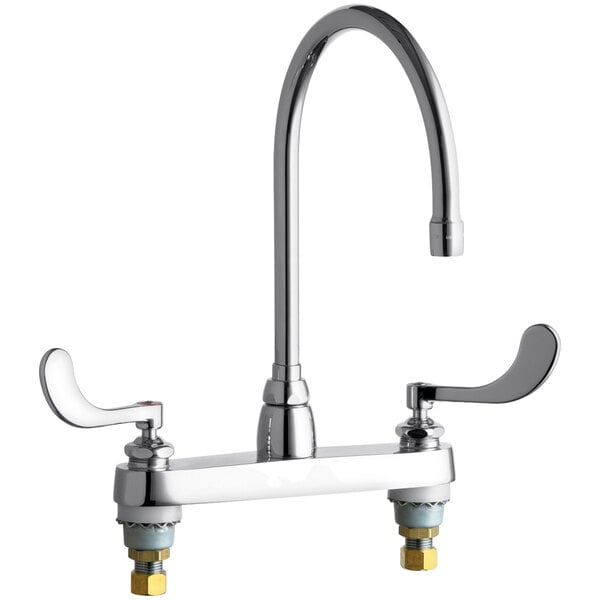

Optimize water efficiency and regulate usage by outfitting your sink with this Chicago Faucets deck-mounted manual sink faucet with 8" centers and 8" rigid / swing gooseneck spout. Designed with a 8" rigid / swing gooseneck spout, this faucet combines functionality with style. This unit is equipped with a pressure compensating, Softflo aerator that releases a soft, non-splashing flow of water at 1.5 GPM. This unit has a rated operating pressure of 20 to 125 PSI and a rated operating temperature of 40 to 140 degrees Fahrenheit for optimal performance. With its durable, cast brass construction and polished chrome finish, this faucet has a total lead content of less than or equal to 0.25% for your safety.

It boasts 8" fixed centers that allow it to match the centers on your sink or mounting surface with ease. The hot and cold, vandal-proof 4" wristblade handles are color coded for easy identification. Control water flow and prevent leaks with the help of the Quaturn compression operating cartridges. The deck-mounted design is easy to install, and it uses 1/2" NPSM supply inlets and a coupling nut suitable for 3/8" or 1/2" risers.

Overall Dimensions:
Spout Length: 8"
Faucet Height: 13 1/2"
Faucet Width: 16"

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Customer questions about this product

I live in California. Can I purchase this product?

This product cannot be shipped to California.

What measurements do I need to install a faucet?

When installing a faucet, these are some of the most common measurements you’ll need:

Faucet Centers: If your faucet has a base with 2 inlets, measure the distance from the center of one inlet to the center of the other. This number must match the spacing of your building’s water lines (adjustable centers will help with the spacing). If mounting through the backsplash on a sink, the center measurement must also fit within the pre-drilled mounting holes.

Flex Hoses: If your faucet has flex hoses make sure that they will reach your building’s water lines.

Spout length: Make sure that the faucet spout will fit comfortably over your sink bowl and not extend too far / not far enough. If you plan to use a swing spout over a multi-bowl sink, make sure it will reach all of the bowls.
Ask your own question!
  • NSF Listed

    NSF Listed

    This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.

  • U.S. Green Building Council (USGBC)

    U.S. Green Building Council (USGBC)

    This company is a certified USGBC member. The USGBC is an organization that promotes sustainable building practices, including saving energy, using fewer resources, and reducing waste.

  • EPA WaterSense

    EPA WaterSense

    This item is certified by the EPA's WaterSense program to meet its standards for water use. WaterSense-labeled products are certified to use at least 20 percent less water, save energy, and perform as well as or better than regular models.

  • ICC-ES ASME A112.18.1/CSA B125.1

    ICC-ES ASME A112.18.1/CSA B125.1

    This item has been tested by the ICC-ES to meet ASME A112.18.1/CSA B125.1 standards for plumbing fittings and fixtures.

  • ICC-ES Low Lead NSF/ANSI 372

    ICC-ES Low Lead NSF/ANSI 372

    This item has been tested by the ICC-ES to meet NSF/ANSI 372 standards for drinking water lead content.

  • ICC-ES Drinking Water NSF/ANSI 61, Section 9

    ICC-ES Drinking Water NSF/ANSI 61, Section 9

    This item has been tested by the ICC-ES to meet NSF/ANSI 61, Section 9 standards for drinking water.

  • CalGreen Compliant

    CalGreen Compliant

    This product is compliant with California's CalGreen Green Building Standards Code.

  • ADA Compliant

    ADA Compliant

    This item meets criteria established by the Americans with Disabilities Act (ADA).

  • Buy American Act Compliant

    Buy American Act Compliant

    This product complies with the provisions of the Buy American Act.

  • 1/2" Water Connection

    1/2" Water Connection

    This unit comes with a 1/2" water connection for water supply.

Resources and Downloads for
Chicago Faucet Company 1100-GN8AE35-317AB

A PDF viewer is required to view this product's information. Download Adobe Acrobat software
