Broan QT DC Series Bathroom Ventilation Fan QTXE110150DC - 110-150 CFM
Item number 93aqtxe110150dcMFR number QTXE110150DC
$220.00/Each
Ships free with
Earn up to $6.60 back (660 points)with a Webstaurant Rewards Visa® Credit Card
Usually Ships in 1-3 Business Days from manufacturer
Lead times vary based on manufacturer stock
Not eligible for expedited shipping
Product Overview
- Quiet yet powerful ventilation quickly reduces humidity and moisture
- Permanently lubricated, brushless DC motor delivers up to 150 CFM

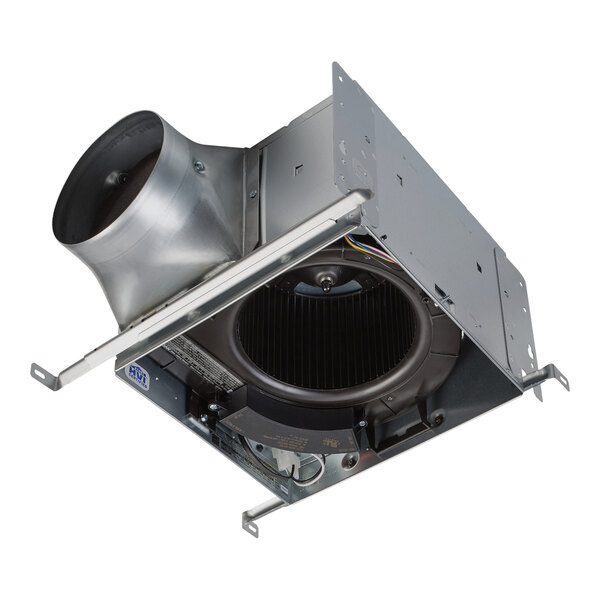

- Rugged, galvanized steel housing resists corrosion
- Built-in damper prevents warm and cold air backdrafts
- Unique, patented spacers for easy mounting
UPC Code:400016992250
Works With
- Quantity
- 1/Each
- Shipping Weight
- 12.4 lb.
- Length
- 11 3/8 Inches
- Width
- 10 1/2 Inches
- Height
- 7 7/8 Inches
- Grille Length
- 13 3/4 Inches
- Grille Width
- 13 Inches
- Amps
- 0.5 Amp
- Hertz
- 60 Hz
- Phase
- 1 Phase
- Voltage
- 120 Volts
- Wattage
- 8.3 - 21.1 Watts
- Color
- Silver White
- Features
- Energy Star Qualified
- Material
- Polymer Steel
- Max CFM
- 150 CFM
- Min CFM
- 110 CFM
- Motor Type
- Direct Current Direct Drive
- Noise Level
- 0.3 - 0.7 Sone
- Plug Type
- Hardwire
- Power Type
- Electric
- Speeds
- 3 Speed
- Type
- Bathroom Fans
Broan-NuTone QTXE110150DC Details

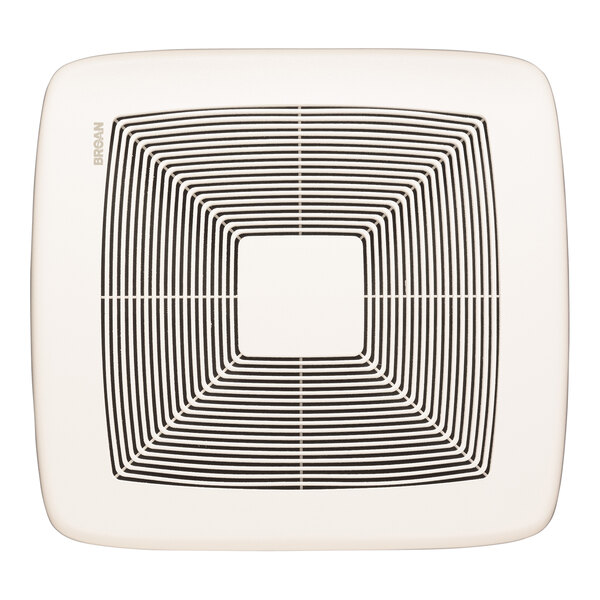

Quickly reduce humidity and moisture in your bathroom with this Broan QT DC series bathroom fan. This fan provides powerful, energy-efficient performance at low noise levels of just 0.3, 0.4, or 0.7 sones depending on the speed setting, helping to maintain a quiet environment in your facility. This unit's rugged, galvanized steel construction resists corrosion and stands up to moisture, while the bright white polymer grille cover promotes a neat, professional look that's sure to blend into any environment.
Engineered for continuous operation, this unit's brushless, direct drive DC motor is permanently lubricated and achieves 90% efficiency for smooth, long-lasting use. The motor is smaller and lighter weight than a standard fan motor, ensuring easier overhead installation and quieter operation. For added versatility, you can select between 110, 130, or 150 CFM. The unit also boasts a dynamically balanced centrifugal blower wheel for quiet, efficient performance. It uses just 0.5 amps of power and features a 6" metal duct fitting with a TrueSeal damper that's specially designed to provide a tight seal, helping to prevent cold and warm air backdrafts and reducing air leakage by up to 50% compared to other models.
This fan is designed for ducting to a roof or wall cap and enables quick and easy 4-point mounting directly to the joist. Plus, the unique, patented spacers allow for mounting to "I" joists, while the hanger bars allow the housing to be positioned anywhere between 16"-24" on-center joists. It even fits in a 2" x 8" ceiling construction and can fit in sloped ceilings for enhanced versatility. It offers seamless installation with its flangeless design and 30% tighter housing than other models. This fan requires a 120V connection and must be hardwired; a cord and plug are not included. For a versatile and economical addition to your facility, look no further than this fan!
Housing Dimensions:
Length: 11 3/8"
Width: 10 1/2"
Height: 7 5/8"
Grille Dimensions:
Length: 13 3/4"
Width: 13"
Please check the Compatibility resource for information on items that work with this product.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Attention CA Residents:
Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
Energy Star Qualified
This item has been Energy Star Qualified by the US Environmental Protection Agency and the US Department of Energy, making it an energy-efficient product.
UL Certified
This product is certified to applicable standards and requirements by UL Solutions.
