Product Overview

  • Quickly removes odors, humidity, and airborne particulates
  • Open-ventilated AC motor delivers up to 310 CFM
  • 20 gauge galvanized steel housing resists corrosion
  • Automatic damper reduces warm and cold air backdrafts
  • 8-way adjustable brackets for easy mounting
UPC Code:026715269730

Broan-NuTone L300E Specs

Quantity
1/Each
Shipping Weight
21 lb.
Length
12 1/4 Inches
Width
12 1/4 Inches
Height
11 3/4 Inches
Grille Length
14 Inches
Grille Width
14 Inches
Amps
0.7 Amp
Hertz
60 Hz
Phase
1 Phase
Voltage
120 Volts
Color
Silver  White
Features
Energy Star Qualified  Made in America
Gauge
20 Gauge
Material
Polymer  Steel
Max CFM
310 CFM
Motor Type
Direct Drive
Noise Level
2.5 Sones
Plug Type
Hardwire
Power Type
Electric
Speeds
1 Speed
Type
Ventilator Fans

Broan-NuTone L300E Details

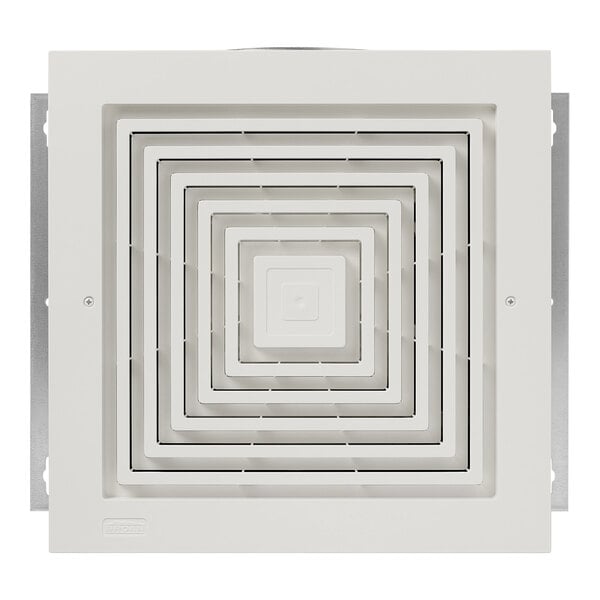

Quickly reduce odors, humidity, and airborne particulates in your establishment with this Broan ventilation fan. This high-capacity fan is ideal for use in dining areas, restrooms, and other high-traffic areas. It operates at low noise levels of just 2.5 sones, helping to maintain a quiet environment in your facility. This unit's 20 gauge galvanized steel construction resists corrosion and is built to last, while the bright white polymer grille cover and low-profile design add a neat, professional look that's sure to blend into any environment.

Engineered for continuous use, this unit's open-ventilated, direct drive AC motor is thermally protected, permanently lubricated, and delivers up to 310 CFM. The blower features anti-vibration mounts and a dynamically balanced, centrifugal blower wheel to ensure quiet, efficient operation. This model uses just 0.7 amps of power and features an 8" metal duct fitting with a built-in damper to prevent cold and warm air backdrafts. Inside the housing, there is 1/2" acoustic insulation to further minimize noise.

This ceiling-mount fan includes 8-position mounting brackets for flexible installation. Plus, the blower, duct fitting, and wiring plate are all adjustable, allowing the unit to be ducted horizontally or vertically. This fan requires a 120V connection and must be hardwired; a cord and plug are not included. For a versatile and economical addition to your facility, look no further than this fan!

Housing Dimensions:
Length: 12 1/4"
Width: 12 1/4"
Height: 11 3/4"

Grille Dimensions:
Length: 14"
Width: 14"

Attention CA Residents:
  • Made in America

    Made in America

    This item was made in the United States of America.

  • UL Listed, US & Canada

    UL Listed, US & Canada

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States and Canada.

  • Hardwired

    Hardwired

    This product must be hardwired by a professional; it does not plug into a standard wall outlet.

  • Energy Star Qualified

    Energy Star Qualified

    This item has been Energy Star Qualified by the US Environmental Protection Agency and the US Department of Energy, making it an energy-efficient product.
