Product Overview

  • Safely and precisely dilutes chemical concentrates to a pre-determined ratio
  • Dilutes up to 5 chemicals at once with 13 selectable dilution ratios per chemical
  • Designed for both high flow and low flow applications
  • Allows for safe, easy ratio adjustment without coming into contact with chemicals
  • Can draw chemical concentrates from the side or from the bottom

Shipping Restrictions

This item cannot ship to AK, ID, LA, NE, OR or UT
UPC Code:400017065908

Brightwell, Inc. DXC4L1H-CG/U9 Specs

Quantity
1/Each
Shipping Weight
6.32 lb.
Width
8 5/16 Inches
Depth
5 1/4 Inches
Height
10 5/8 Inches
Backflow Prevention Type
Elastic Gap
Chemical Form
Liquid
Color
Black  Gray
Features
Manual Pump
Flow Rate
1 - 4 GPM
Incoming Water Temperature
39 1/5 - 149 Degrees F
Material
Plastic
Number of Pumps / Chemicals
5 Pumps / Chemicals
Pump Application
Chemical Dilution
Type
Dispensers
Water Inlet Size
3/4 Inches

Brightwell, Inc. DXC4L1H-CG/U9 Details

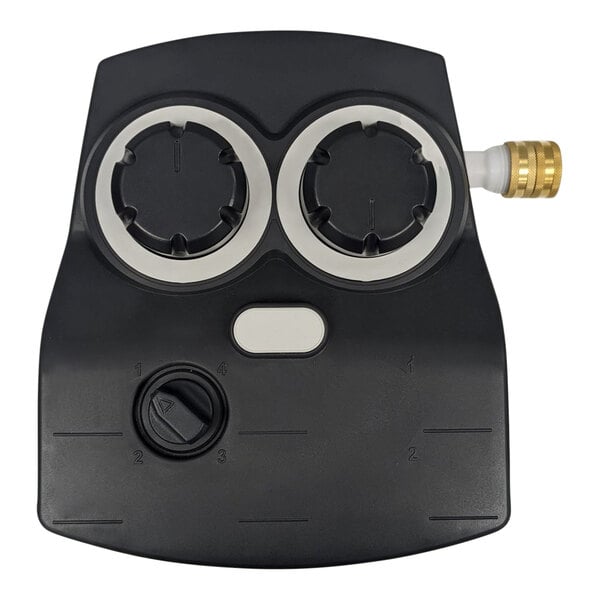

Dispense consistent, ready-to-use chemical solutions with this Brightwell EcoMulti Compact chemical dispenser. This venturi-based system connects to your water main to safely and precisely dilute chemical concentrates to a pre-determined ratio. It can dilute up to 5 chemicals at once, and it is great for filling spray bottles, buckets, or scrubber dryers. This unit offers 13 selectable dilution ratios per chemical, and it can be used for both high flow and low flow applications. It has integrated backflow prevention and a dilution ring for safe use, and it allows for easy ratio adjustment without coming into contact with chemicals. The compact design fits into areas with limited space, making it easy to fit into janitorial cupboards or commercial kitchens.

This unit is easy to use with simple push-and-hold operation to dispense your chemical solution. It allows chemicals to be delivered from side chemical cabinets or from chemical containers installed at the bottom of the unit. This dispenser has a working temperature range of 39.2 to 149 degrees Fahrenheit, and it requires a minimum high flow water rate of 2.2 GPM and a low flow water rate of 0.9 GPM. It is easy to install with the built-in level and drilling template (mounting hardware included).

Overall Dimensions:
Width: 8 5/16"
Depth: 5 1/4"
Height: 10 5/8"

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Customer questions about this product

Can this product ship to all 50 states?

This product cannot ship to Utah, Louisiana, Alaska, Nebraska, Idaho, or Oregon.
Ask your own question!
  • ASSE Certified

    ASSE Certified

    This product has been certified by ASSE International to meet safety and performance standards for plumbing and mechanical systems

  • 3/4" Water Connection

    3/4" Water Connection

    This unit comes with a 3/4" water connection for water supply.
