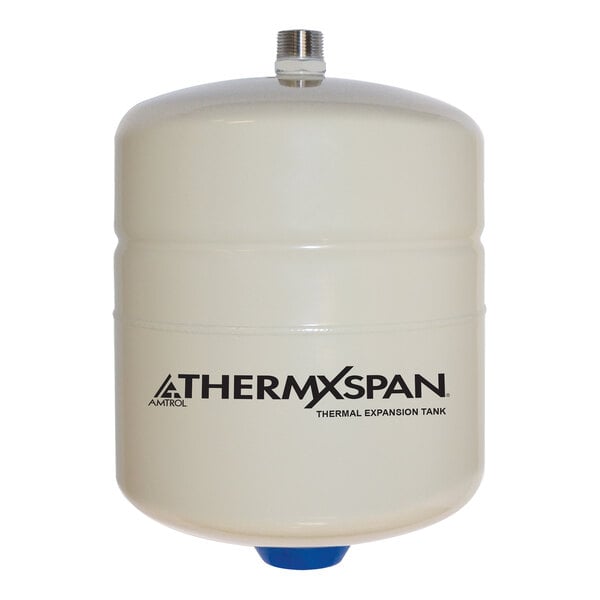

Amtrol Therm-X-Span T-5A 2 Gallon Vertical Thermal Expansion Tank

Amtrol 447602 Details

Prevent dangerous thermal expansion with this Amtrol Therm-X-Span thermal expansion tank. This tank is designed for use in closed, potable hot water systems. It accepts expanded water as the system temperature increases, which activates the diaphragm to keep pressure below the valve setting. The diaphragm is made of heavy-duty butyl, and it also helps separate the system water from the tank's air charge. This handy tank saves energy, eliminates potential safety hazards, and reduces system maintenance.

This tank features a 2 gallon capacity. It is made with a durable steel outer shell and a polypropylene liner to keep the interior clean and protected. It has a maximum operating temperature of 200 degrees Fahrenheit and a maximum working pressure of 150 PSIG. This unit comes pre-charged with a 40 PSIG air charge and has a stainless steel connection.

Overall Dimensions:
Diameter: 8"
Height: 12"
Capacity: 2 gallons
