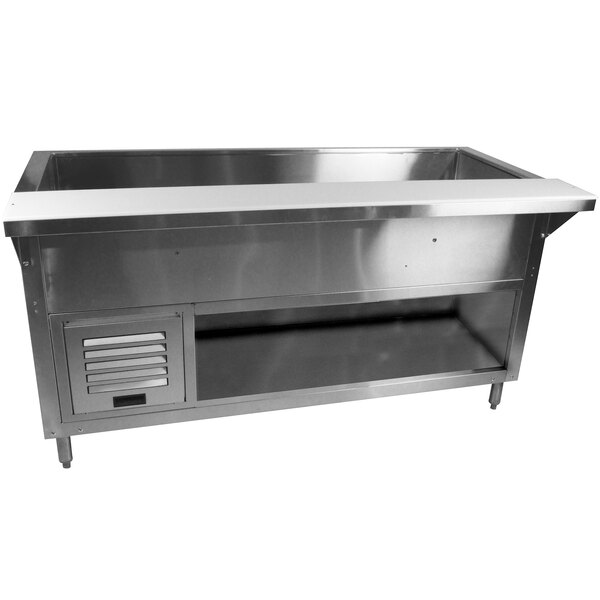

Advance Tabco MACP-5-BS Stainless Steel Mechanically Assisted Refrigerated Cold Pan Table with Enclosed Base
- Can accommodate up to five 12'' x 20'' pans
- High nominal cooling capacity for guaranteed temperature control
- All welded stainless steel construction
- Integrated poly cutting board
- Digital and programmable thermostat
- 1'' IPS drain
- Includes adapter bars
You May Also Need
Advance Tabco TA-255P 5" Enclosed Base Table Swivel Stem Casters - 4/Set
plus $286.20 / Set
Advance Tabco Sleek Shield NSG-15-5WELL 5 Well Single Tier Self Service Food Shield with Stainless Steel Shelf - 78 1/2" x 19 3/4" x 18 1/2"
$1,971.00 / Each
Advance Tabco HC-5 Hinged Stainless Steel Cover - 74 1/2" x 21 1/2"
plus $322.65 / Each
Advance Tabco SU-P-345 77 3/4" x 8" Cutting Board
$108.00 / Each
Advance Tabco TES-1 22 1/2" x 10" Stationary End Shelf
plus $310.50 / Each
Advance Tabco Equivalent 5" Enclosed Base Table Swivel Stem Caster with Brake
$53.49 / Each
Advance Tabco Equivalent 5" Enclosed Base Table Swivel Stem Caster
$46.99 / Each
Advance Tabco Equivalent 5" Enclosed Base Table Swivel Stem Casters - 4/Set
$179.99 / Set
|Advance Tabco MACP-5-BS Specs|
|Width||77 3/4 Inches|
|Depth||22 3/4 Inches|
|Height||34 1/8 Inches|
|Interior Width||73 1/4 Inches|
|Interior Depth||20 Inches|
|Interior Height||8 1/4 Inches|
|Compressor Location||Side Mounted|
|Number of Pans||5|
Advance Tabco MACP-5-BS Details
Keep your cold menu items chilled at safe and delicious temperatures with the Advance Tabco MACP-5-BS stainless steel mechanically assisted cold pan table. This unit includes adapter bars for accommodating up to five 12'' x 20'' food pans. A high nominal cooling capacity of 1500 BTUs per hour offers guaranteed product temperature control. Aluminum encased copper tube evaporator panels improve heat transfer by increasing contact area, while the integrated expansion valve offers efficient operation at various temperature conditions.
This table is designed for long lasting use thanks to all welded stainless steel construction that includes:
- 18 gauge, 304 series stainless steel open frame top
- 18 gauge, 304 series stainless steel one-piece liner that is ground and polished to a uniform finish
- 20 gauge, 304 series stainless steel cabinet base
- 16 gauge, 302 series stainless steel cutting board brackets
- 16 gauge, 302 series stainless steel legs with fully adjustable non-marking tip plastic bullet feet
A 1'' IPS drain is fitted to the bottom of the basin for easy removal of melted ice and water. Other features include a built-in poly cutting board, liquid receiver for improved refrigerant charge control, sight glass, and refrigerant filter drier that ensures the overall cleanliness of the sealed refrigeration circuit. Additionally, the fully self contained condensing unit is provided with a hermetically sealed compressor alongside a digital and programmable thermostat.
The Advance Tabco MACP-5-BS refrigerated cold pan table requires a 120V electrical connection.
Left to Right: 77 3/4''
Front to Back: 22 3/4''
Height: 34 1/8''
Left to Right: 73 1/4''
Front to Back: 20''
Depth: 8 1/4''
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date,
please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Made in America
This item was made in the United States of America.
This item meets the electrical product safety standards imposed by the ETL, a division of the Intertek Group, for use in the United States.
This unit comes with a NEMA 5-15P plug.
