Accessories & Options

  • Can hold up to five 12'' x 20'' food pans
  • High nominal cooling capacity of 1500 BTUs/hr
  • All-welded stainless steel construction
  • Digital and programmable thermostat
  • Removable access door to compressor
  • Four 4'' casters, 2 with brakes
  • 1'' IPS drain

UPC Code:

747545195142

Condition:

New
Shipping:

Usually Ships in 2-4 Weeks

White Glove Delivery - Available -

What is White Glove service?

Standard common carrier delivery options cover the cost of getting an item to your shipping address but our White Glove delivery service does that and more!

The White Glove agent will call to schedule a Call Before Delivery within a four hour window, which gives you the flexibility to work around your busy schedule and to prepare the space where your item will be placed. Upon delivery, trained professionals will unload your large item from the truck, bring it into the room of choice, unpack the item and remove all packaging debris from the premises.

Please note that White Glove delivery will typically add 5 - 7 business days to your order's transit, and only includes 30 minutes of on-site time. If on-site time beyond 30 minutes is required, you may be responsible for additional fees. While the agents will bring the items into the location of your choice, this service does not include set-up of the items being delivered, such as installation of casters, shelves, or other accessories. Small items will not be unpackaged individually; they will be set in place and debris and packaging material will not be removed.

You May Also Need

"You May Also Need" items are guaranteed to work with the item you are viewing, such as lids that will fit a cup or casters that will fit a piece of equipment. If an item is not listed in this section, we do not guarantee that it will work with the product you are viewing and do not recommend that you purchase them for use together.

View All Items
Advance Tabco BMACP5-B-SB Specs
Width 77 3/4 Inches
Depth 22 5/8 Inches
Height 56 1/8 Inches
Amps 8 Amps
Hertz 60 Hertz
Phase 1
Voltage 115 Volts
Wattage 920 Watts
Base Style Enclosed
Casters Yes
Color Black
Compressor Location Bottom Mounted
Horsepower 1/3 HP
Made in America Yes
Material Stainless Steel
Number of Pans 5
Refrigerant Type R-404A
Size Full Size
Sneeze Guard Yes
Style Refrigerated
Top Material Stainless Steel
Type Food Tables

Advance Tabco BMACP5-B-SB Details

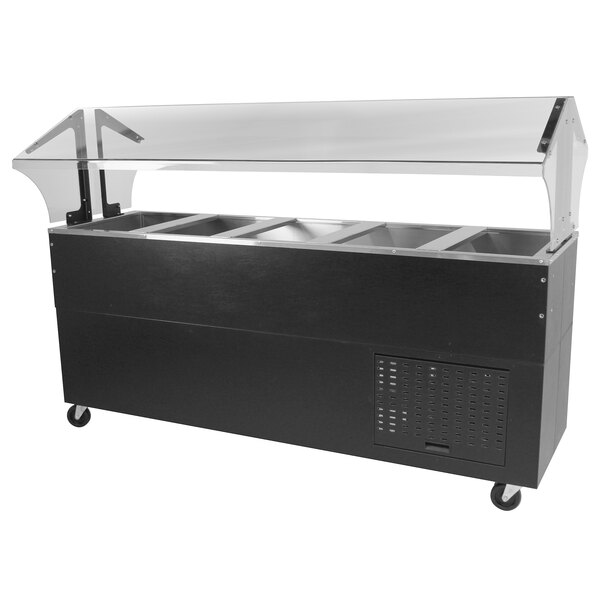

Keep your cold menu items chilled at safe and delicious temperatures with the Advance Tabco BMACP5-B-SB stainless steel mechanically assisted three well everyday cold pan table. This unit can hold up to five 12'' x 20'' food pans and boasts a high nominal cooling capacity of 1500 BTUs per hour in order to provide guaranteed product temperature control. Aluminum encased copper tube evaporator panels improve heat transfer by increasing contact area, while the integrated expansion valve offers efficient operation at various temperature conditions. Additionally, an enclosed base allows for a solid, sturdy structure.

This table is designed for long lasting use thanks to all-welded stainless steel construction that includes:
- 18 gauge, 304 series stainless steel open frame top
- 20 gauge, stainless steel body in matte black vinyl finish
- 18 gauge, 304 series one-piece stainless steel liner ground and polished to a uniform finish
- 16 gauge galvanized understructure

A total of four 4'' swivel casters, including two with brakes, allow for effortless transportation from one destination to the next, while a double sided thermoplastic polymer sneeze guard is paired with side panels for outstanding protection against airborne bacteria. Other features include a 1'' IPS drain, removable access door, liquid receiver for improved refrigerant charge control, sight glass, low running current, easy-access on/off switch, and refrigerant filter drier that ensures the overall cleanliness of the sealed refrigeration circuit. The fully self-contained condensing unit is provided with a hermetically sealed compressor alongside a digital and programmable thermostat.

The Advance Tabco BMACP5-B-SB five well cold pan table requires a 115V electrical connection.

Overall Dimensions:
Left to Right: 77 3/4''
Front to Back: 22 5/8''
Height: 56 1/8''

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

  • ETL US

    ETL US

    This item meets the electrical product safety standards imposed by the ETL, a division of the Intertek Group, for use in the United States.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • 5-15P

    5-15P

    This unit comes with a NEMA 5-15P plug.
