Product Overview
- Round, nickel bronze strainer with a load rating of 1,000 lb.
- Head adapter adjusts up to 3/4" above flange for adjustment after concrete pour
- Durable PVC drain base with a 3" x 4" Schedule 40 hub connection
- Heel-proof grate holes prevent tripping and injuries
- Easily installs in cored concrete floors and corrugated decks
Other Products from this Line
- Quantity
- 1/Each
- Shipping Weight
- 2.5 lb.
- Height
- 4 3/8 - 4 7/8 Inches
- Diameter
- 5 3/8 Inches
- Outlet Diameter
- 3 Inches
- Color
- Bronze Gray
- Features
- Adjustable
- Material
- Nickel Bronze PVC
- Style
- Nickel Bronze Grate
- Type
- Floor Drains
Sioux Chief 822-3PNR Details
Remove standing water with this Sioux Chief 822 Series Halo floor drain! This floor drain is ideal for areas with light-duty pedestrian traffic. The round strainer is constructed of nickel bronze for superior durability and offers a load rating of 1,000 lb. The height is adjustable for up to 3/4" above the deck flange, allowing for flush mounting in a variety of floor types. This unit easily installs in cored concrete floors and corrugated decks, making it great for second-floor utility rooms, laundry rooms, and other similar spaces.

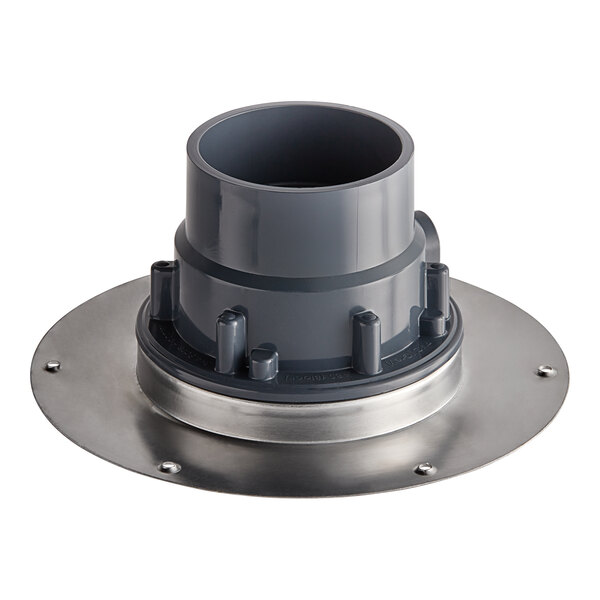

This floor drain includes an 18 gauge stainless steel deck / mounting flange for secure installation. The drain base is made from durable PVC for long-lasting strength, and it welds over 3" and inside 4" pipes using a 3" x 4" Schedule 40 hub connection. A tight, integral O-ring seal between the flange and the base adapter prevents leaks. For additional convenience, the grate holes are heel-proof to prevent tripping and injuries, and the trap primer port is 1/2" FIP threaded for an easy connection.
Overall Dimensions:
Diameter: 5 3/8"
Height: 4 3/8"-4 7/8"
Adjustable Height: 0"-1/2"
