This product is no longer available. We've left this page up for reference only.
Product Overview
- 14 gauge type 304 stainless steel construction resists corrosion
- Low profile bowls with concealed 1 1/4" brass traps
- Boasts vandal-resistant, chrome-plated brass bubbler head that outputs 0.45 GPM
- Stainless steel valves are activated by push buttons and operate at 30 to 90 PSI
- Equipped with integral basin shanks and welded-in 1/4" thick stainless back plates
UPC Code:400016857498
- Quantity
- 1/Each
- Shipping Weight
- 66 lb.
- Width
- 32 Inches
- Depth
- 19 3/16 Inches
- Height
- 16 1/4 Inches
- Color
- Silver
- Dispenser Style
- Push Button
- Features
- ADA Compliant
- Finish
- Satin
- Material
- Stainless Steel
- Mounting Style
- Wall Mounted
- Output
- 0.45 Gallons per Minute
- PSI
- 30 - 90 PSI
- Spout Type
- Bubbler
- Type
- Drinking Fountains
- Usage
- Indoor Outdoor
- Water Inlet Size
- 3/8 Inches
- Water Type
- Non-Refrigerated Water
Haws Corporation 1117LN Details

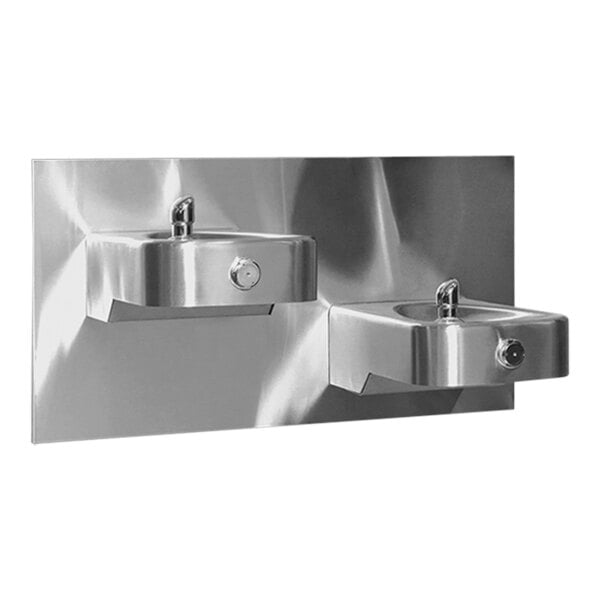

For reliable water service, use this Haws 1117LN dual wall-mount drinking fountain. Boasting a "Hi-Lo" design, this easily accessible dual fountain permits twice as many users as a regular fountain. This unit features two low-profile bowls with concealed 1 1/4" cast brass traps. It has a 14 gauge type 304 stainless steel construction. It includes welded-in 1/4" thick stainless back plates. This drinking fountain uses two chrome-plated brass bubbler heads that output 0.45 GPM flows. The two stainless steel valves are activated by a push button and operate at 30 to 90 PSI.
This drinking fountain is perfect for indoor and outdoor use. The vandal-resistant design boasts immobile bubbler heads, push buttons, bowls, drain strainers, and bottom plates. It also has an integral 11/16" round basin shank and a stainless anti-rotation rolling pin that prevents unauthorized individuals from accessing the unit's inner workings. This unit is equipped with lead-free waterways. Its shielded, angled stream of water promotes cleanliness, keeping your guests safe and healthy. This drinking fountain is an excellent choice for parks, universities, and schools.
Overall Dimensions:
Width: 32"
Depth: 19 3/16"
Height: 16 1/4"

CSA, US and Canada
This product is certified by CSA to applicable U.S. and Canadian standards.

3/8" Water Connection
This unit comes with a 3/8" water connection for water supply.

ADA Compliant
This item meets criteria established by the Americans with Disabilities Act (ADA).
