Product Overview
- Prevents backsiphonage of contaminated water into a potable water supply
- 1" inlet and outlet size
- Cast copper silicon alloy body with stainless steel springs
- 33 to 140 degrees Fahrenheit maximum temperature range
- Maximum working pressure of 150 PSI
- Quantity
- 1/Each
- Shipping Weight
- 9.1 lb.
- Length
- 7 1/2 Inches
- Height
- 7 1/2 Inches
- Features
- Made in America NSF Listed
- Material
- Copper Silicon Alloy
- Pressure Rating
- 150 PSI
- Temperature Range
- 33 - 140 Degrees F
- Type
- Backflow Preventers Mechanical Parts Vacuum Breakers
- Water Inlet Size
- 1 Inch
- Water Outlet Size
- 1 Inch
Watts T792012 Details

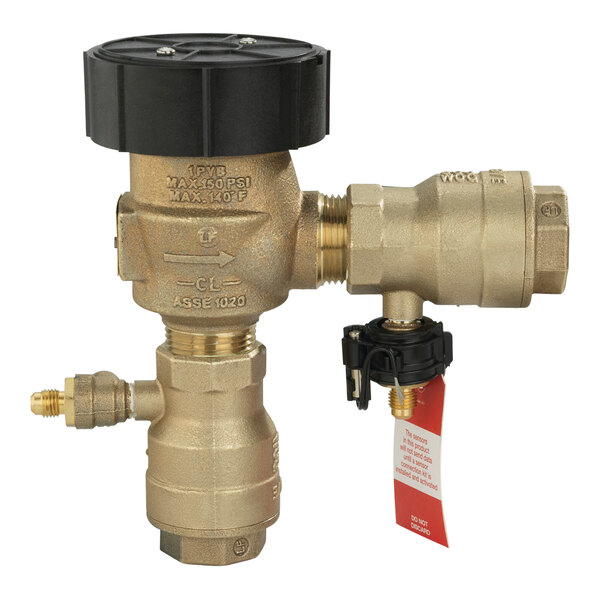

This Watts 1" anti-siphon pressure vacuum breaker is designed to prevent backsiphonage of contaminated water into a potable water supply. It's ideal for irrigation systems, industrial process water systems, and other continuous pressure piping system applications where water enters the equipment at or below the flood rim. This vacuum breaker has a 1" inlet and outlet size, and it features a cast copper silicon alloy body, stainless steel springs, and silicone rubber discs. It also allows for easy maintenance of internal parts.
This vacuum breaker's disc float and check valve are suitable for temperatures up to 140 degrees Fahrenheit with a range of 33 to 140 degrees Fahrenheit and a maximum working pressure of 150 PSI. It features an O-ring bonnet seal for less possibility of fouling, and an acetal bonnet acts as a freeze plug, preventing body damage. Plus, this vacuum breaker can be used with SentryPlus Alert (sold separately) to activate the freeze sensor, which indicates when temperatures near the freezing point, helping to reduce or eliminate equipment replacement or repair. Additionally, this vacuum breaker has a compact and space-saving design and is equipped with a tee handle quarter turn ball valve. No special tools are required for servicing.
Overall Dimensions:
Length: 7 1/2"
Height: 7 1/2"
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Made in America
This item was made in the United States of America.
ASSE Certified
This product has been certified by ASSE International to meet safety and performance standards for plumbing and mechanical systems
CSA, US and Canada
This product has been certified by the Canadian Standards Association (CSA) to meet select standards for electrical, plumbing, and/or mechanical products in the United States and Canada.
IAPMO R&T, UPC Certified - USA
This product is certified by the International Association of Plumbing and Mechanical Officials (IAPMO) to meet Uniform Plumbing Code (UPC) standards for the USA
NSF Listed
This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.
1" Water Connection
This unit comes with a 1" water connection for water supply.
