Product Overview
- Single deck design with an interior light
- Solid state controls with temperature range of 150-500 degrees Fahrenheit
- 5 nickel plated oven Grab-n-Go racks with 11 rack positions
- Independently operated doors with double pane windows
- Porcelain enamel interior with stainless steel exterior; 23 3/4" legs
- Oven cool switch for rapid cool down
- 1/2 hp two speed blower motor
- 480V, 12 kW, ships 3 phase; field convertible to 1 phase
Works With"Works With" items are guaranteed to work with the item you are viewing, such as lids that will fit a cup or casters that will fit a piece of equipment. If an item is not listed in this section, we do not guarantee that it will work with the product you are viewing and do not recommend that you purchase them for use together.

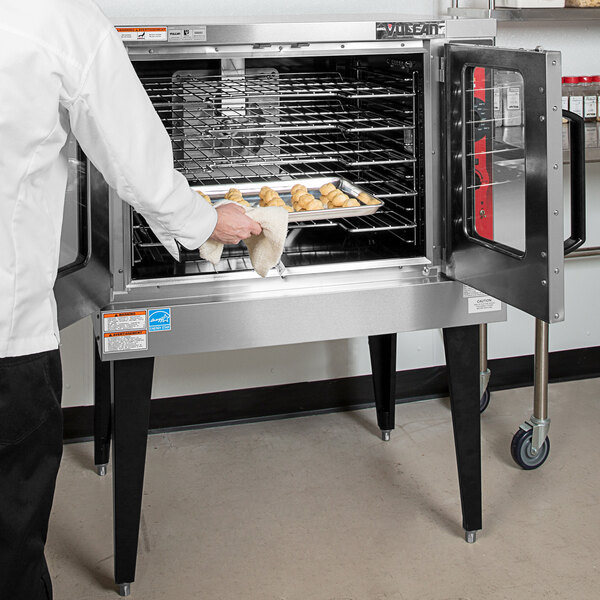

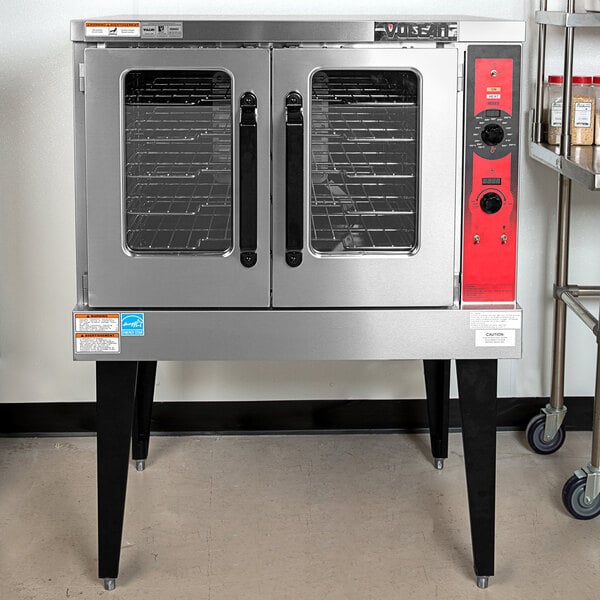

Cooking in your school kitchen or restaurant will be easier than ever with this VC5ED single deck full size electric convection oven.
This 480V, 3 phase unit offers a solid state thermostat with a 5 hour timer for simple, precise control of your cooking operations, and a wide temperature range from 150-500 degrees Fahrenheit to accommodate cooking a variety of different foods. A 480V electrical connection is required for operation. The unit ships 3 phase, but is field convertible to 1 phase.
NSF Listed
This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.
Made in America
This item was made in the United States of America.
Energy Star Qualified
This item has been Energy Star Qualified by the US Environmental Protection Agency and the US Department of Energy, making it an energy-efficient product.
UL Listed, US
This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States.
Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
Field Convertible (Electrical)
This equipment’s electrical specifications can be modified in the field during installation by a qualified service technician. Be sure to read item content and literature for the specific details of what voltage and phase configurations are possible.
Increased Energy Conservation
Two dual pane thermal glass windows encased by stainless steel door frames help reduce energy consumption and keep the outside glass from getting too hot. The doors are independently operated, so you can conserve energy by only opening one at a time to load and unload products.
Porcelain and Stainless Steel Design
A porcelain enamel interior is both attractive and easy to clean at the end of a busy day. The stainless steel front, top, and sides ensure your unit is corrosion-resistant and built for long-lasting performance. To boost your oven to the perfect working height, 23 3/4" legs come included.
Efficient, Even Cooking
Five nickel plated Grab-n-Go racks fit into 11 different positions for ultimate interior customization. The 1/2 hp two speed fan motor recirculates heated air for fast, even cooking, and the unit features an "oven cool" switch, which is used for rapid cool down to increase efficiency and productivity at your establishment.
Customer Q&AAsk a Question
Compare to Other Products
Price
Voltage
Control Type
Number of Chambers
Number of Racks
Power Type
Temperature Range
- Width:
- 40 1/8 Inches
- Depth:
- 40 Inches
- Height:
- 54 Inches
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Attention CA Residents:Need Parts & Accessories?
Show replacement parts and accessories for Vulcan VC5ED-13D1 480/3 today!
Resources and Downloads for
Vulcan VC5ED-13D1 480/3
A PDF viewer is required to view this product's information. Download Adobe Acrobat software
Warranty Info
RESIDENTIAL USERS: Vulcan assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. Your warranty will be voided if installed in non-commercial or residential applications.
