Usually Ships in 3-4 Weeks from manufacturer

Lead times vary based on manufacturer stock

Product Overview

  • 3 door design for straight or corner applications
  • Extended height for larger items
  • Uses only 1.09 gallons of water per cycle
  • Cleans up to 40 racks per hour
  • 115V
UPC Code:400011120382

CMA Dishmachines MODEL EST-3-D-EXT Specs

Quantity
1/Each
Shipping Weight
273 lb.
Width
25 3/4 Inches
Depth
25 3/4 Inches
Height
56 - 57 Inches
Dishwasher Height
Standard
Amps
16 Amps
Hertz
60 Hertz
Phase
1 Phase
Voltage
115 Volts
Application
Dishwashers
Dishwasher Style
Straight / Corner
Features
Chemical Pumps
High or Low Temp
Low Temp
Horsepower
1 HP
Interior Clearance
20 1/2 Inches
Minimum Water Inlet Temperature
120 Degrees F (140 Recommended)
Number of Cycles
1 Cycle
Racks Per Hour
40
Type
Single Rack
Wash Cycle Time
90 Seconds
Wash Tank Capacity
1.09 gal.
Water Inlet Size
1/2 Inches
Water Temperature
120 - 140 Degrees F
Water Usage
1.09 Gallons Per Rack

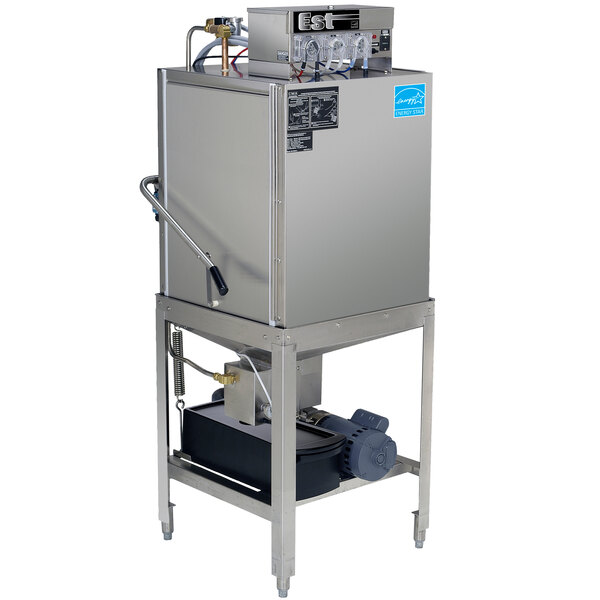

CMA Dishmachines MODEL EST-3-D-EXT Details

Use this CMA EST-3-D-EXT single rack low temperature straight / corner dishwasher to quickly and efficiently clean soiled dishware and glassware! This dish machine features 3 extended height doors to accommodate taller items and all doors open at the same time, allowing you to use it in either a straight or corner application. It can also wash up to 40 racks per hour with only 1.09 gallons of water per cycle, and an auto start / stop feature makes it easy to use! And since it boasts an all stainless steel construction, you can be sure this dish machine will provide years of reliable use.

- 1 hp wash pump motor

- Comes with (2) dish racks

- Integrated scrap tray prevents food soil from entering drain system

- Top mounted control box with built-in chemical pumps and deliming system

- Automatic start / stop for easy use

- Power drain saves space and reduces noise

- Upper and lower stainless steel wash arms

Overall Dimensions:
Width: 25 3/4"
Depth: 25 3/4"
Height: 56" - 57"
Inside Chamber Clearance: 20 1/2"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Attention CA Residents

WARNING:This product can expose you to chemicals including lead, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.p65warnings.ca.gov.

  • ETL Sanitation

    ETL Sanitation

    This product has been certified by ETL, a division of the Intertek Group, to meet applicable sanitation standards required for use in the United States and Canada.

  • Hardwired

    Hardwired

    This product must be hardwired by a professional; it does not plug into a standard wall outlet.

  • UL Listed, US & Canada

    UL Listed, US & Canada

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States and Canada.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • Energy Star Qualified

    Energy Star Qualified

    This item has been Energy Star Qualified by the US Environmental Protection Agency and the US Department of Energy, making it an energy-efficient product.

  • 1/2" Water Connection

    1/2" Water Connection

    This unit comes with a 1/2" water connection for water supply.
