Product Overview

  • 2 open top burners with lift off heads for easy cleaning
  • 24" wide thermostatic griddle with a 3/4" thick plate
  • Heavy-duty cast-iron grates for optimal temperature retention
  • Refrigerated base keeps cold food close by and ready to use
  • 100,000 BTU; R-404A refrigerant; 1/3 hp compressor; liquid propane connection required
UPC Code:400013249401

Vulcan 36R-2B24GTP Specs

Quantity
1/Each
Shipping Weight
570 lb.
Width
36 Inches
Depth
34 Inches
Height
58 Inches
Voltage
115 Volts
Burner BTU
30,000 BTU
Burner Style
Burner & Griddle Combo  Grates
Control Type
Thermostatic
Features
Made in America  NSF Listed
Gas Connection Size
3/4 Inches
Griddle Location
Right
Griddle Size
24 Inches
Installation Type
Freestanding
Number of Burners
2 Burners
Number of Ovens
None
Plug Type
NEMA 5-15P
Power Type
Liquid Propane
Range Base Style
Refrigerated Chef Base
Refrigerant Type
R-404A
Total BTU
100,000 BTU

Customer questions about this product

Can I modify this item?

Webstaurant Store offers certain optional modifications for this item. If you are interested in more information for modifying this unit, please fill out this form, Special Order Request Form, and a member of our Custom Quote team will be in touch in 1-2 business days!

My business is at a high elevation; does this change anything when I order gas cooking equipment?

Many gas equipment manufacturers need to make adjustments to the equipment so it operates correctly at elevations over 2,000 feet. Sometimes we can special order from the manufacturer and have your cooking equipment delivered ready-to-go, but in cases where your unit is in stock and waiting to ship, you’ll need to have a qualified service technician come to your location and alter your unit at the time of installation so that it is compatible with a higher elevation. Contact our Special Orders team prior to placing your order, and we will let you know what will work best for the equipment you are planning to purchase.

Ask your own question!

Vulcan 36R-2B24GTP Details

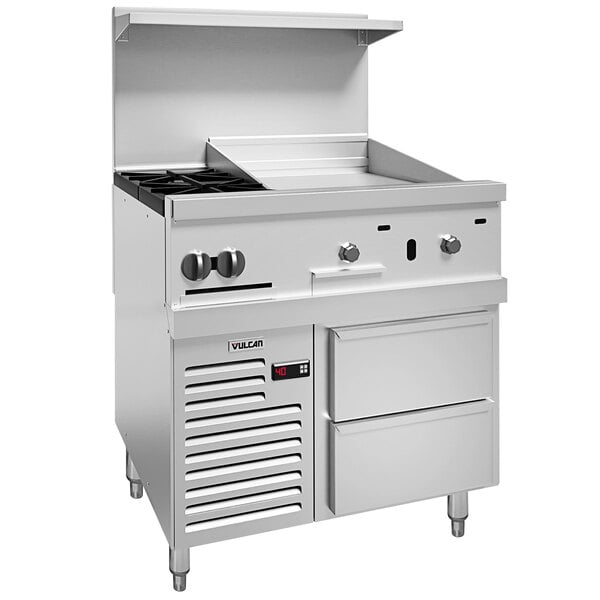

Add an invaluable piece of cooking equipment to your busy commercial kitchen with this Vulcan 36R-2B24GT Endurance 2 burner 36" liquid propane range with 24" thermostatic griddle and refrigerated base! A great way to produce consistently high-quality food while getting the most out of your operation's valuable floor space, this single versatile machine is equipped to handle a variety of tasks. Since this unit features 2 open top burners with a refrigerated base, you can fry and simmer on top while eliminating wasted space by storing proteins at arm's length below. The 3/4" thick, 24" wide griddle offers plenty of cooking space for pancakes, bacon, burgers, or cheesesteaks, and even features a 4" grease trough for easy cleanup. And for the chef who is looking for precise temperature control, the thermostatic controls allow you to set the temperature of the griddle top to suit the cooking requirements of different foods.

Each of the 2 burners delivers 30,000 BTU of heating power, and thanks to the lift-off heads, cleaning and maintenance is a simple process. Plus, the 12" x 14 1/2" rear and 12" x 12 1/2" front lift-off cast iron grates allow easy access to the burners while supporting your largest stock pots and frying pans. For quick ignition, a shrouded flash tube pilot system for every two burners is standard. And, an extra deep crumb tray further expedites the cleaning process, as it can be removed and emptied when it gets full.

For an additional charge, this item features a flame safety upgrade that protects against unexpected outages by monitoring each standing pilot. If one is extinguished, the gas flow halts to that independent burner section while unaffected burners remain lit. Easily restart the burner using a manual ignition process when the burner is secure.

The refrigerated base includes 2 heavy-duty drawers that can accommodate 12" x 20" x 6" pans. Since the drawers have a self-closing and stay-open feature, they make loading and unloading easy. The drawers remain at 34-38 degrees Fahrenheit even when frequently opened and closed in a warm kitchen environment. The refrigeration system uses R-404A refrigerant and runs an off-cycle defrost.

A fully welded frame combines with stainless steel front, sides, backriser, and lift-off high shelf to ensure long-lasting use in your commercial kitchen. 6" stainless steel adjustable legs come standard. A liquid propane connection and 115V electrical connection are required for operation.

Overall Dimensions:
Left to Right: 36"
Front to Back: 34"
Height: 58"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Attention CA Residents

WARNING:This product can expose you to chemicals including lead, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.p65warnings.ca.gov.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • NSF Listed

    NSF Listed

    This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.

  • 3/4" Gas Connection

    3/4" Gas Connection

    This unit comes with a 3/4" gas connection to be installed by a professional.

  • 5-15P

    5-15P

    This unit comes with a NEMA 5-15P plug.

  • UL Listed, US & Canada

    UL Listed, US & Canada

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States and Canada.

Need Parts & Accessories?

Show replacement parts and accessories for Vulcan 36R-2B24GTP today!

Resources and Downloads for
Vulcan 36R-2B24GTP

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Warranty Info

RESIDENTIAL USERS: Vulcan assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. Your warranty will be voided if installed in non-commercial or residential applications.
