Product Overview

  • Rugged stainless steel construction
  • 36" wide charbroiler with supercharger dividers
  • Heavy-duty cast-iron grates for optimal temperature retention
  • Convection oven base includes 3 racks and 4 rack positions
  • Liquid propane; 128,000 BTU
UPC Code:400014339910

Vulcan 36C-36CBP Specs

Quantity
1/Each
Shipping Weight
630 lb.
Width
36 Inches
Depth
41 Inches
Height
58 Inches
Interior Width
26 3/8 Inches
Oven Interior Width
26 3/8 Inches
Interior Depth
24 Inches
Oven Interior Depth
24 Inches
Interior Height
13 7/8 Inches
Oven Interior Height
13 7/8 Inches
Voltage
115 Volts
Burner BTU
16,000 BTU
Burner Style
Grates
Control Type
Electronic
Features
Charbroiler  Made in America  NSF Listed
Gas Connection Size
3/4 Inches
Installation Type
Freestanding
Number of Burners
6 Burners
Number of Ovens
1 Oven
Number of Racks
3 Racks
Oven BTU
32,000
Plug Type
NEMA 5-15P
Power Type
Liquid Propane
Range Base Style
Convection Oven
Style
Standard
Total BTU
128,000 BTU
Usage
Medium Duty

Customer questions about this product

Can I modify this item?

Webstaurant Store offers certain optional modifications for this item. If you are interested in more information for modifying this unit, please fill out this form, Special Order Request Form, and a member of our Custom Quote team will be in touch in 1-2 business days!

My business is at a high elevation; does this change anything when I order gas cooking equipment?

Many gas equipment manufacturers need to make adjustments to the equipment so it operates correctly at elevations over 2,000 feet. Sometimes we can special order from the manufacturer and have your cooking equipment delivered ready-to-go, but in cases where your unit is in stock and waiting to ship, you’ll need to have a qualified service technician come to your location and alter your unit at the time of installation so that it is compatible with a higher elevation. Contact our Special Orders team prior to placing your order, and we will let you know what will work best for the equipment you are planning to purchase.

Ask your own question!

Vulcan 36C-36CBP Details

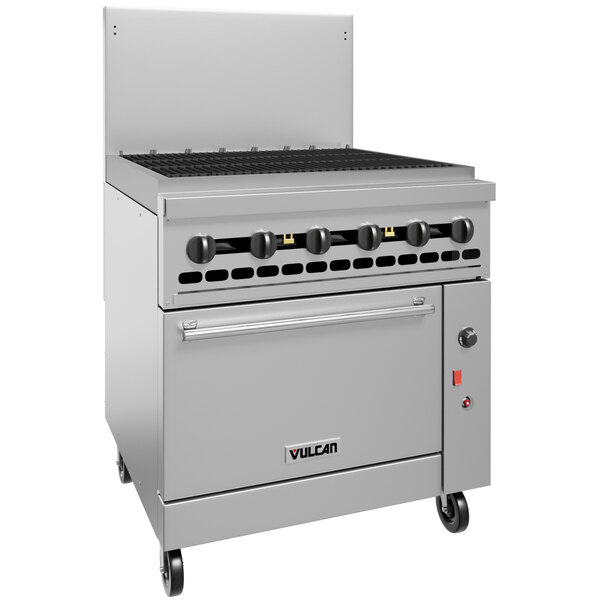

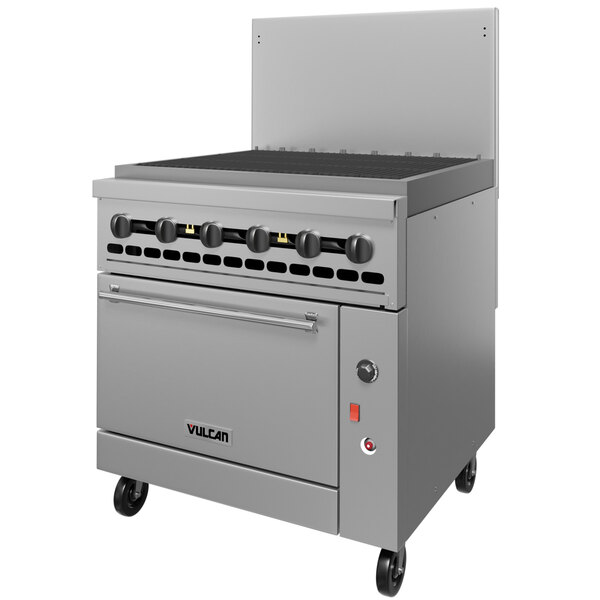

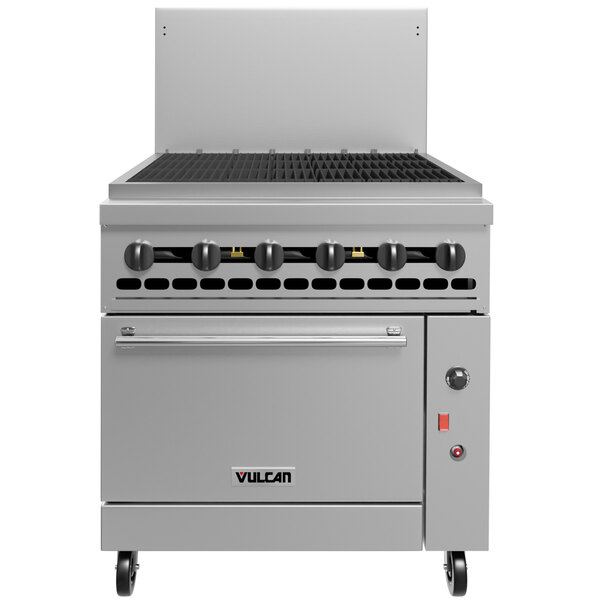

Add an invaluable piece of cooking equipment to your busy commercial kitchen with this Vulcan 36C-36CBP Endurance 36" liquid propane range with a 36" charbroiler top and convection oven base! A great way to produce consistently high-quality food while getting the most out of your operation's valuable floor space, this single versatile machine is equipped to handle a variety of tasks. Since this unit features a charbroiler top with one convection oven as the base, you can grill proteins or vegetables on top while eliminating wasted space by using the oven below for your baking and warming needs.

The top features a 36" wide charbroiler that makes quick work of your most popular meats, fish, and vegetables. Six 16,000 BTU burners feature supercharger dividers that equally distribute the surface heat to eliminate cold spots and inconsistent results.

For your medium-volume baking and warming needs, this range has a convection oven base. The convection fan ensures even baking temperatures throughout the oven compartment, which comes with three racks and has a heat output of 32,000 BTU. With separate controls located in a cool zone, the oven may be used by itself or in conjunction with the charbroiler top. The oven's bottom and door panel are porcelainized for easy clean up.

A fully welded frame combines with the stainless steel front, sides, and backriser to ensure long-lasting use in your commercial kitchen. 6" stainless steel adjustable legs come standard. A liquid propane connection and 115V electrical connection are required for operation.

Overall Dimensions:
Width: 36"
Depth (including convection oven motor): 41"
Height: 58"

Interior Dimensions:
Width: 26 3/8"
Depth: 24"
Height: 13 7/8"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Attention CA Residents

WARNING:This product can expose you to chemicals including lead, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.p65warnings.ca.gov.

  • NSF Listed

    NSF Listed

    This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • 5-15P

    5-15P

    This unit comes with a NEMA 5-15P plug.

  • CSA Design, US

    CSA Design, US

    This item has been certified by the Canadian Standards Association (CSA) to meet applicable certification requirements for gas-fired products used in the United States.

  • CSA Blue Flame, Canada

    CSA Blue Flame, Canada

    This product has been certified by the Canadian Standards Association (CSA) to meet requirements for gas-fired products in Canada.

  • 3/4" Gas Connection

    3/4" Gas Connection

    This unit comes with a 3/4" gas connection to be installed by a professional.
