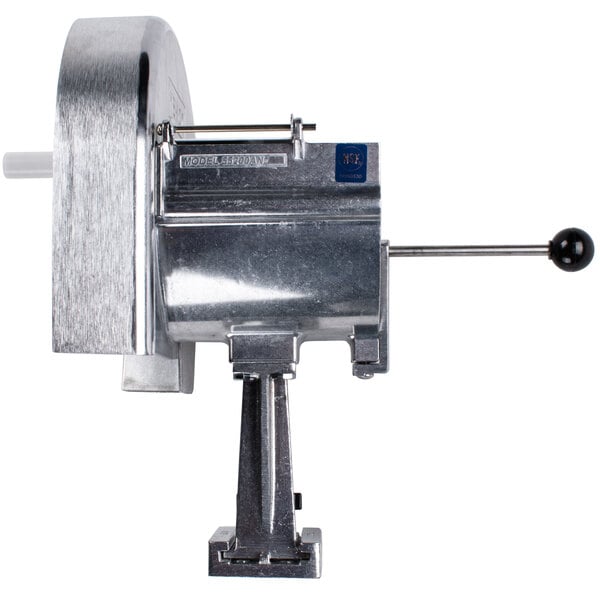

Nemco 55200AN-6 Easy Slicer Fixed Vegetable Cutter, 3/16"
- Free Shipping!
Add this item to your cart. (You can remove it at any time.)
- Slice fruit or vegetables in seconds
- Great for sandwiches and pizza toppings
- Trough measures 6" x 3.5"
You May Also Need
View All Items
"You May Also Need" items are guaranteed to work with the item you are viewing, such as lids that will fit a cup or casters that will fit a piece of equipment. If an item is not listed in this section, we do not guarantee that it will work with the product you are viewing and do not recommend that you purchase them for use together.
Petrol-Gel Food Grade Sanitary Lubricant - 4 oz. Tube
Nemco 55163 Clamp Assembly for Easy Slicer
Nemco 55157-1 Adjustable Slicing Assembly for Easy Slicers
Nemco 55257 Sharpening Stone for Easy Slicers
Nemco 55261-4N 1/8" Fixed Cut Slicing Assembly for Easy Slicers
Nemco 55261-6N 3/16" Fixed Cut Slicing Assembly for Easy Slicers
Nemco 55261-8N 1/4" Fixed Cut Slicing Assembly for Easy Slicers
Nemco 55263-1 3/16" Easy Slicer Shredder Assembly
The Easy Slicer from Nemco is the one slicer you need to make fast, easy work of most fruits and vegetables. In seconds you can produce mounds of uniformly sliced fresh vegetables for salad bars, sandwiches, pizza toppings, and more, all with minimal training and big savings in time and labor. Its adjustable stainless steel blade provides a full range of slicing options from 1/16" to 1/2" in thickness for maximum versatility and convenience.
This instructional video is not intended to take the place of the supplied written instructions. Please take the time to read through the instructions thoroughly and become familiar with the operating and maintenance procedures.
We will be using the standard mounting base that comes with each unit. It is attached to the work table with the screws provided in the mounting kit. Also available is the Nemco easy mounting board, a handy optional accessory. The NSF-approved mounting board is held firmly to any smooth surface with heavy duty suction cup feet. It is easily removed for cleaning or storage with a simple effort-free tug on each cup's pull tab.
Now, we will begin the demonstration by sliding the Easy Slicer into the mounting base and tightening the locking screw to secure the machine. Check the slice thickness setting. Remove the adjustable slicing unit by turning the shaft lock to the left and pulling on the handle. The slice thickness is easily adjusted by holding the handle stationary and by turning the adjusting screw at the end of the adjusting shaft assembly. The thickness of the slice is indicated by the alignment of the pin in the slot and the lines on the recessed portion of the main shaft. These lines are 1/16" apart, so two lines equals 2/16", or 1/8". Three lines equals 3/16", et cetera, up to 1/2". Simply turn the thumb screw to lock in your setting on the easy-to-read calibrated gauge.
Now pull out the pusher handle, raise the cover plate, and place your produce into the trough. Close the cover plate, and gently push on the pusher handle knob while turning the handle on the rotary cutting unit in a clockwise direction. You may want to turn your handle about a quarter turn counter-clockwise before turning in the cutting direction. This will permit a running start as the blade makes its first cut. Maintain uniform pressure on the pusher handle. Heavy pressure is unnecessary and will not improve the slicing or shredding action. As you can see, it is very fast and easy to achieve very uniform slices with clean-cut edges.
The Easy Slicer was designed for easy disassembly for cleaning as follows. Turn the shaft lock assembly to the left and pull the rotary slicing unit out of the trough and leg assembly. Lift the guard off the trough and leg assembly. Loosen the locking screw and remove the trough and leg assembly from the mounting base. After cleaning, return the trough and leg assembly to the mounting base and tighten the locking screw. Slide the guard onto the trough and leg assembly, and then slide the rotary slicing unit into the leg assembly. Turn the shaft lock assembly clockwise, to the right, to lock the rotary slicing assembly into the trough and leg assembly. You will want to periodically clean the shaft lock bore with the brass brush provided with the Easy Slicer to assure that the shaft lock assembly turns freely.
To remove the shaft lock for cleaning, rotate the shaft lock assembly to the left to release the rotary slicing assembly. Slide the rotary slicing assembly out of the trough and leg assembly. Remove the guard. Pull the shaft lock pin to release the shaft lock. Pull the shaft lock out of the trough and leg assembly. Use the supplied brush to clean the shaft lock channel. (For a written version of these instructions, please refer to the cleaning instructions available online or in the literature provided with each new machine.) Replace the shaft lock into the trough and leg assembly. Return the shaft lock pin through the trough and leg assembly and shaft lock. Be certain that the shaft lock is fully seated into the channel, and then rotate it to the right, or clockwise.
To prolong the sharpness of your blades, they can be honed as follows. Remove the rotary slicing unit from the trough and leg assembly. Adjust to the maximum slice width, 1/2". Use a fine honing stone on the beveled side of the blade. Move the stone parallel to the blade's grain, and work along the curve of the blade. Be sure to maintain the original sharpening angles on the beveled side of the blade. If needed, use the hone on the flat side of the blade to remove burns. A honing stone is available from Nemco for this purpose.
In order to replace the slicer blades, remove the rotary slicing unit from the machine, as for cleaning, and secure it in a vise. Using a screwdriver, remove the flathead screws, releasing the blades. We highly recommend using cut resistant gloves during this procedure - these blades are extremely sharp.
Some of you may only require a single size cut, and an adjustable unit may not be required. Nemco offers fixed cut machines available in widths of 1/8", 3/16", and 1/4". There are also two shredder blades available in widths of 3/16" and 5/16".
Control your portions, save time, reduce your labor costs, and maximize your menu capabilities with the versatility of the Easy Slicer from Nemco. For more information about this or our other fine Nemco products, contact us at Nemco Food Equipment, or visit us online at www.nemcofoodequip.com.
This Nemco Easy Slicer is ideal for slicing fruits and vegetables. It easily mounts to countertops or other flat surfaces, and can be removed in seconds for cleaning or storage.
|Depth||10 3/4 Inches|
|Made in America||Yes|
|Slice Size||3/16 Inches|
|Type||Cutters / Slicers|
Customer questions about this product
- Can this unit be modified to cut in different sizes?
- Yes! Below are the accessories you will need to convert this unit to the given size.
1/16"-1/2" Adjustable Cut: 55157-1 Blade Assembly
1/8" Fixed Cut: 55261-4N Blade Assembly
1/4" Fixed Cut: 55261-8N Blade Assembly
3/16" Shredder: 55263-1 Blade Assembly
5/16" Shredder: 55263-2 Blade Assembly
5/32” Fixed Cut: 55261-5N Blade Assembly
7/32” Fixed Cut: 55261-7N Blade Assembly
7/64” Fixed Cut: 55261-MN Blade Assembly
The Nemco 55200AN-6 Easy Slicer features a 9 1/4", fixed, stainless steel blade with 3/16" openings and a mounting base for a secure vegetable cutting workstation. The Nemco 55200AN-6 Easy Slicer is great for producing evenly cut fresh vegetables and fruits in seconds, for fruit and salad bars, sandwich and pizza toppings, and more. The Nemco 55200AN-6 Easy Slicer mounts to countertops and other flat surfaces, and can be removed in seconds for storage or cleaning.
Depth: 10 3/4"
Nemco 55200AN-6 is formerly known as Nemco N55200AN-6.
This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.
Made in America
This item was made in the United States of America.
This unit has been tested to consistently cut high volumes of lemons, lettuce, mushrooms, onions, cucumbers, green bell peppers, radishes, red bell peppers, red cabbage, strawberries, tomatoes, and zucchinis.
