Adding drawers to your stainless steel worktables will add storage and utility to your kitchen workstations. In this video we'll show you how to install these Regency drawers, it's quick and easy!
It's easiest to work with just the top of the table. So if you bought your table and drawers at the same time, install the drawers before you assemble the table.
If you are mounting drawers to an existing table, you can easily remove the tabletop by using an allan wrench to unscrew the legs from the tabletop's gussets and lifting it off--it's best to have a helper when doing this.
Set the tabletop upside down on a surface that won't scratch it, and then you can begin assembling the drawer.
Today we're using Regency stainless steel drawers, so if you have a different brand, just make sure you double check the manufacturer's instructions.
Among the pieces that come in your drawer kit, there are two z-brackets and a bag of nuts and bolts. You'll use these nuts and bolts to attach the z-brackets to the top of the frame, making sure that the top of the bracket goes outward and the bracket extends a bit further back than the rear of the frame.
Once you've done this, flip the drawer and align it where you would like to mount it.
It's a good idea to try this once with the drawer in the frame, so you can test to make sure the door will clear the lip of the table.
If it doesn't, you'll need to shim with some nuts between the hat channel and the z-brackets.
One of the things that you'll notice is that this part of the z-bracket has no holes. This is beacuse hat channels can be aligned all sorts of ways depending on the manufacturer of the table.
You'll need to drill holes in the brackets and then the hat channels. And then just use self-tapping sheet metal screws to attach the drawer to the table.
Now we're almost done. It's just a matter of reattaching the tabletop to the legs, and placing the pan inside the drawer. See that? Adding storage for your utensils isn't too hard!
Well, thank you for watching! And if you have any questions, please feel free to use the WEBstaurant Store's live chat button right on our home page.

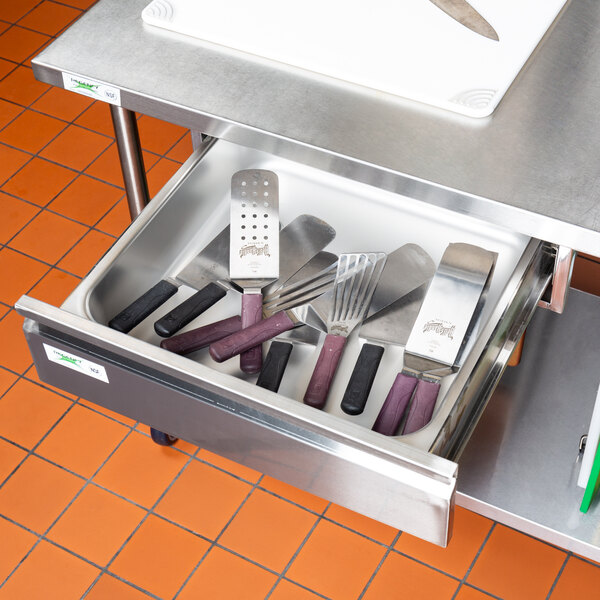

This galvanized steel drawer has a stainless steel front. It moves on ball-bearing sides. This drawer is compatible with all Regency work tables that are at least 30" wide and 36" long. It is NOT compatible with 24" or 30" long work tables, nor is it compatible with 24" wide tables.
This drawer mounts to the under structure of the work table.
Dimensions: Front Width (left to right): 25 1/8" Length (front to back): 23 3/4" Back Width (left to right): 23 3/8" Depth: 5" Inside: 20" x 20"
Customer Reviews for Regency 20 inch x 20 inch x 5 inch Drawer with Stainless Steel Front
Overall User Rating:
(5.0
stars from 1 reviews)
Rating
By Eric K.
Posted on September, 2012
This is a nice under the table stainless steel drawer! It is perfect for storing small hand tools like ring cutters, pens and pencils, etc!!!
Regency 20" x 20" x 5" Drawer with Stainless Steel Front
