Product Overview

  • Includes 1 UCF20HC freezer, 1 UCR20HC-23 refrigerator, and a stacking collar
  • Stainless steel front, sides, top, and doors with a corrosion-resistant aluminum interior
  • Full electric control and cartridge style hinges with 120 degree stay-open feature
  • Compact design is great for use in tight spaces
  • 115V, 1/3 hp freezer; 115V, 1/6 hp refrigerator; both use eco-friendly R-290 refrigerant
UPC Code:400013640352
View all Beverage-Air Dual Temperature Work Top and Undercounter Refrigerators / Freezers

Other Products from this Line

Beverage-Air UCR20HC-23+00C32-015A-01+UCF20HC Specs

Quantity
1/Each
Shipping Weight
254 lb.
Width
20 Inches
Height
53 1/4 Inches
Interior Width
16 Inches
Interior Height
12 1/2 Inches
Hertz
60 Hertz
Phase
1 Phase
Voltage
115 Volts
Access Type
Doors
Amps - Freezer
2.5
Amps - Refrigerator
2
Capacity
4.53 cu. ft.
Door Style
Swing
Features
Dual Temperature  Made in America
Horsepower - Freezer
1/3 HP
Horsepower - Refrigerator
1/6 HP
Number of Doors
2 Doors
Number of Shelves
4 Shelves
Plug Type
NEMA 5-15P
Refrigerant Type
R-290
Style
Stacked Kits
Temperature Range - Refrigerator
36 - 38 Degrees F

Customer questions about this product

Does Beverage-Air warrant this item for use in a food truck?

This item is covered under Beverage-Air's warranty contingent upon the unit being kept in a controlled climate. This means that the interior of the food truck may not be susceptible to extreme high or low temperatures. If warranty service is required, the truck must be able to sit stationary for 24-48 hours to allow for a technician to service the equipment.

How do I know if this unit will fit under or match the height of my ADA-height counter?

Many manufacturers offer their refrigeration equipment in several different height options to best meet your needs. Here's a breakdown of how we classify these different heights:

Counter Height: Work surface is more than 34" high; standard-height unit.

ADA Height: Work surface height is 34" or less; complies with ADA regulations.

Low Profile: Work surface height is less than 32"; designed to fit under most ADA-height counters.

If the unit you are purchasing does not have a flat top, such as a worktop or sandwich/salad prep table, it may affect whether or not it will align with certain countertops. To ensure that the product will meet your needs, please reference the product's literature and specifications.

I haven’t heard of R-290, R-600a, R-513a, or R-448A refrigerant before. What is it?

R-290 (also known as high purity propane or CARE 40) and R-600a (also known as refrigerant grade Isobutane or CARE 10) are hydrocarbon refrigerants. R513a (also known as Opteon XP10) and R-448A (also known as Solstice N40) are HFO (hydrofluoroolefin) refrigerants. They are being used by some manufacturers in response to the EPA’s Significant New Alternatives Policy (SNAP) Program.

Ask your own question!

Beverage-Air UCR20HC-23+00C32-015A-01+UCF20HC Details

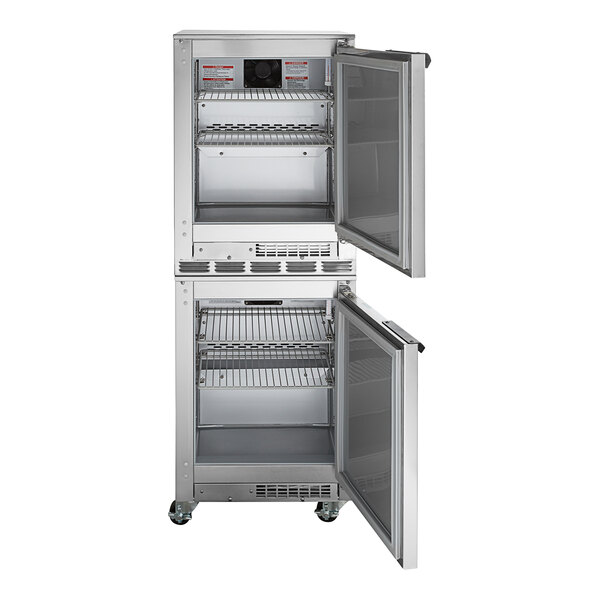

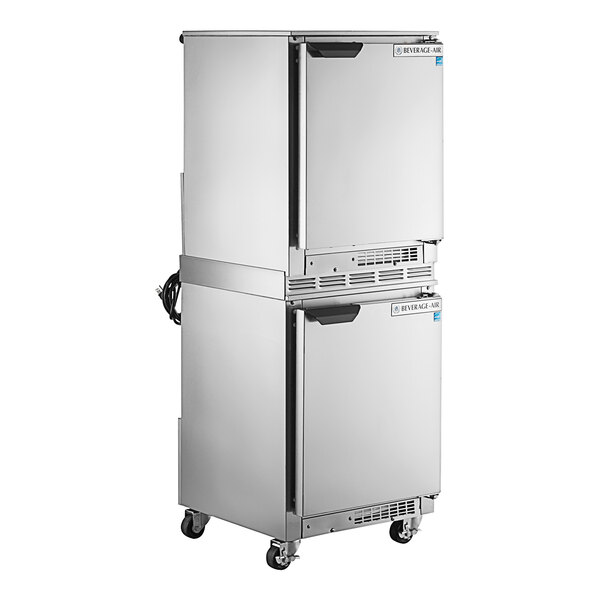

Dealing with limited space can make things hectic in a high-traffic commercial kitchen, so maximize your real estate with this shallow depth Beverage-Air UCF20HC/UCR20HC-23 double stacked 20" undercounter freezer and refrigerator combination! This set includes 1 undercounter freezer, 1 undercounter refrigerator, and a stacking collar for double stack installation.

Made with a durable stainless steel exterior with an aluminum interior, each unit in this set is built to withstand the demands of a busy commercial kitchen. Each cabinet has a self-closing door that reduces temperature loss, and a stay-open feature for high-volume loading and unloading. The cartridge-style hinges also ensure a great seal for years to come, and are highly resistant to sagging. Each door can be easily removed for cleaning or maintenance. Two shelves are also included with each unit so that your products can be well-organized to promote shorter open-door times.

The refrigerator's 1/6 hp compressor and the freezer's 1/3 hp compressor run on eco-friendly R290 refrigerant. This specialized refrigerant has an ozone depletion potential (ODP) of 0 and a global warming potential (GWP) of 3, making it an environmentally-responsible choice for your business.

The refrigerator will hold temperatures between 36-38 degrees Fahrenheit and the freezer will hold temperatures at 0 degrees Fahrenheit or below. Overall, each unit in this set is certified for a 100 degree Fahrenheit ambient class so you can be sure it will keep food cold even in hot kitchens. This unit also comes with a set of 3" casters for the refrigerator and a set of 6" casters for the freezer. Each unit requires a 115V electrical connection for operation and includes its own 8' cord and plug set.

Freezer Overall Dimensions
Width: 20"
Depth: 24 1/2"
Height: 31 1/8"
Capacity: 2.27 cu. ft.

Freezer Interior Dimensions:
Width: 16"
Depth: 16 3/8"
Depth (usable): 11" upper, 8 1/4" lower
Height: 19 1/2"
Height (usable): 12 1/2"

Refrigerator Overall Dimensions:
Width: 20"
Depth: 24 1/4"
Height: 28 1/8"
Capacity: 2.26 cu. ft.

Refrigerator Interior Dimensions:
Width: 16"
Depth: 16 3/8"
Depth (usable): 11" upper, 8 1/4" lower
Height: 19 1/2"
Height (usable): 12 1/2"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Attention CA Residents:

Attention CA Residents

WARNING:This product can expose you to chemicals including lead, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.p65warnings.ca.gov.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • UL Classified EPH

    UL Classified EPH

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable ANSI/NSF standards and / or other food equipment hygiene codes and requirements.

  • 5-15P

    5-15P

    This unit comes with a NEMA 5-15P plug.

  • UL Listed, US & Canada

    UL Listed, US & Canada

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States and Canada.

  • UL Sanitation

    UL Sanitation

    This item has been tested and meets the sanitation hazard standards imposed by the Underwriters Laboratories (UL).
