Product Overview
- 12" deep cavity with 140 lb. capacity
- 7-circuit cold plate sealed to bottom of bin
- Styrofoam insulation
- All stainless steel construction
- Galvanized legs with adjustable plastic bullet feet
- Integrated rear deck for extra storage
- Includes two removable 3-pack plastic bottle racks
Works With"Works With" items are guaranteed to work with the item you are viewing, such as lids that will fit a cup or casters that will fit a piece of equipment. If an item is not listed in this section, we do not guarantee that it will work with the product you are viewing and do not recommend that you purchase them for use together.
- Quantity
- 1/Each
- Shipping Weight
- 168 lb.
- Length
- 42 Inches
- Width
- 21 Inches
- Height
- 33 Inches
- Ice Bin Width
- 15 Inches
- Backsplash Height
- 4 Inches
- Capacity
- 140 lb.
- Features
- Bottle Storage Made in America NSF Listed With Backsplash
- Installation Type
- Freestanding
- Leg Construction
- Galvanized Steel
- Material
- Stainless Steel
- Number of Cold Plate Circuits
- 7
- Type
- Ice Bins With Cold Plate
Customer questions about this product
How do I connect two or more pieces of Advance Tabco underbar equipment together?
Please contact our Customer Solutions team when placing your order and specify option SU-24. Please be prepared to indicate the desired arrangement of the equipment so the vendor can prepare the connections properly. Additional costs and extended lead time will apply.
What is a cold plate?
A cold plate is a metal object that connects to soda fountains, bar guns, and other dispensing systems to chill beverages as they dispense. The plate is cooled by submerging it in ice, and the beverage is chilled as it passes through the plate. Each plate has a specific number of circuits, or "passes," that indicate how many separate connections it can support, and each connection includes an inlet and an outlet. Therefore, a cold plate with seven circuits can cool seven separate beverage lines, and it will feature seven inlets and seven outlets.

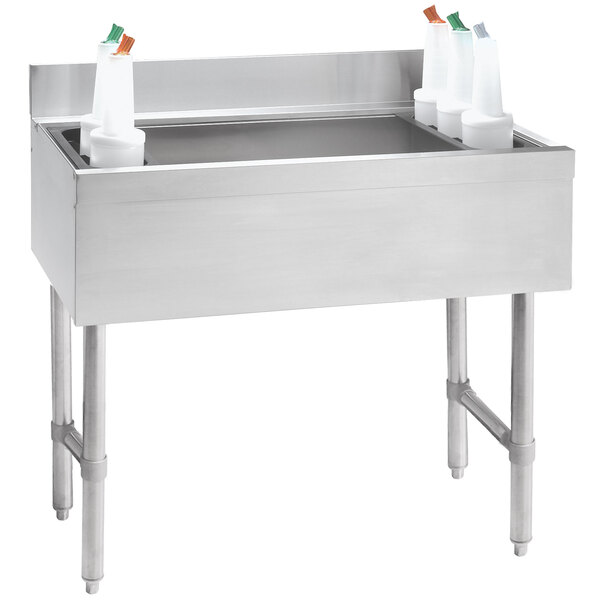

Advance Tabco CRI-12-42-7 Details
For exceptional ice storage, look no further than this Advance Tabco CRI-12-42-7 stainless steel underbar ice bin. Thanks to a 12" deep cavity with 2 lb. density Styrofoam insulation, this unit can accommodate food and drink service operations of nearly any size. A 7-circuit cold plate is sealed to the bottom of the bin, while a 4" backsplash serves to prevent ice and water from spilling onto the floor.
The unit features all stainless steel construction, including:
- 22 gauge, 300 series stainless steel ice bin, front apron, and backsplash
- 20 gauge, 430 series stainless steel sides
- 22 gauge, galvaneal front / back understructure
- 11 gauge electrogalvaneal leg channel
- 1 5/8" O.D. 18 gauge, galvanized steel legs with adjustable plastic bullet feet
- Cast aluminum 7-circuit cold plate with 5/16" diameter stainless steel bump and swedge ends
Adjustable side cross-bracing adds extra sturdiness, ensuring this versatile item is built to withstand high volume commercial use and years of operation. Additionally, a rear deck provides even more storage, and two removable injection molded 3-pack plastic bottle racks are included for ease-of-use. The Advance Tabco CRI-12-42-7 underbar ice bin boasts a 140 lb. capacity, making this unit perfect for your restaurant or bar.
Overall Dimensions:
Length: 42"
Width: 21"
Height: 33"
Work Surface Height: 29"
Backsplash Height: 4"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Attention CA Residents:
Made in America
This item was made in the United States of America.
NSF Listed
This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.
