Name: T&S EC-3104 Deck Mounted ChekPoint Faucet with 4 13/16" Spout and Mechanical Mixing Valve
Brand: T&S Brass and Bronze Works
SKU: 510EC3104
Price: 440 USD
Availability: LimitedAvailability

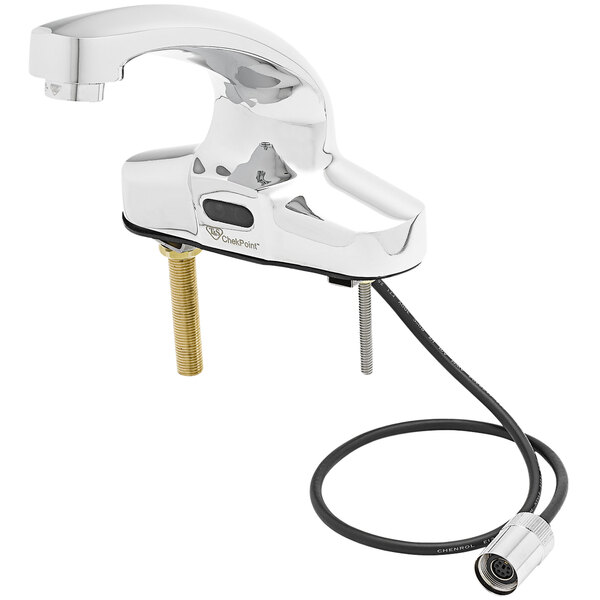

A silver T&S deck mounted faucet with a black hose.

$440.00/Each

Ships free with Plus

Why do we do this?

Start a Live Chat with a Customer Service rep to receive the price!
Mon - Thur: 5am - 12am EST
Fri: 5am - 8pm EST
Sat & Sun: 9am - 4pm EST.

Earn up to $13.20 back (1,320 points)with a Webstaurant Rewards Visa® Credit Card

Usually Ships in 2-3 Weeks from manufacturer

Lead times vary based on manufacturer stock

Product Overview

Hands-free design improves sanitation
Vandal-resistant 2.2 GPM aerator
Temperature mixing valve with integral check valves
Includes supply hoses from faucet to control module and from mixing valve to water lines
Water-resistant control module with internal flow setting switches - wall plug or battery operation
Chrome plated brass construction

UPC Code:400012249921

View all T&S Brass and Bronze Works Handicap Bathroom Accessories

plus
Rayovac 815-4TFUSK Fusion AA Advanced Alkaline Batteries - 4/Pack
$4.99/Pack
plus
Rayovac ALAA-8J Ultra Pro Industrial AA Alkaline Batteries - 8/Pack
$2.99/Pack

Quantity: 1/Each
Shipping Weight: 6.7 lb.
Spout Length: 4 13/16 Inches
Faucet Width: 6 1/8 Inches
Faucet Height: 5 1/16 Inches
Battery Type: AA
Faucet Centers: 4 Inches
Features: ADA Compliant Flex Inlets Included
Finish: Chrome
Flow Rate: 2.2 GPM
Material: Brass
Mounting Holes Required: 2 Mounting Holes
Mounting Style: Deck Mounted
Plug Type: NEMA 1-15P
Pressure Rating: 125 PSI
Spout Clearance: 4 1/16 Inches
Spout Type: Cast
Temperature Rating: 140 Degrees Fahrenheit
Type: Touchless Faucets
Water Inlet Size: 3/8 Inches

Customer questions about this product

Can I use this product to serve drinking water?

This product is not intended for use in applications where potable (drinking) water is dispensed for human consumption.

Does this item have any additional agency approvals and certifications?

There are a wide range of regulations that govern plumbing code! We attempt to list any current certification marks with an official logo on the product page for your convenience. However, additional approvals, codes, and standards this product adheres to may be listed on the product specsheet.

What measurements do I need to install a faucet?

When installing a faucet, these are some of the most common measurements you’ll need:

Faucet Centers: If your faucet has a base with 2 inlets, measure the distance from the center of one inlet to the center of the other. This number must match the spacing of your building’s water lines (adjustable centers will help with the spacing). If mounting through the backsplash on a sink, the center measurement must also fit within the pre-drilled mounting holes.

Flex Hoses: If your faucet has flex hoses make sure that they will reach your building’s water lines.

Spout length: Make sure that the faucet spout will fit comfortably over your sink bowl and not extend too far / not far enough. If you plan to use a swing spout over a multi-bowl sink, make sure it will reach all of the bowls.

Ask your own question!

T&S Brass and Bronze Works EC-3104 Details

A perfect addition to any restroom, this T&S EC-3104 ChekPoint electronic deck mounted faucet with 4 13/16" spout is a great way to reduce the spread of germs in your business! A hands-free faucet is a must-have for any safety-conscious operation, and it is particularly valuable in settings where disease can have a profound negative impact on your business, such as in restaurants or in healthcare facilities. The sensor in this unit detects when your hands are in position and dispenses water accordingly, eliminating the need to touch faucet handles and also reducing the chance of leaving a faucet running.

This faucet has a 4" solid cast brass spout with a chrome-plated finish for a sleek look and easy cleaning. A 2.2 GPM aerator provides a gentle flow with minimal splashing, and it is vandal-resistant to prevent tampering and damage.

The faucet mounts on 4" centers. One hole is used to run the 24" sensor cable from the control module to the faucet. The other is used to run a 1/2" NPSM x 1/4" NPSM, 18" stainless steel supply hose from the faucet to the control module. The control module itself comes in a water-resistant housing to provide protection against leaks, and contains the internal flow control setting switches. It can be operated using either the included 100-240VAC adapter, with (4) AA batteries, or it can be hardwired using the terminals on the back.

A mechanical mixing valve combines incoming cold and hot water and limits the temperature of water going to the faucet. Finally, two 18" long, 3/8" compression x 1/2" NPSM stainless steel supply hoses allow you to connect the unit to your facility's water lines.

Overall Dimensions:
Spout Length: 4 13/16"
Faucet Height: 5 1/16"
Faucet Width: 6 1/8"

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Hands-Free/Touchless
This item is designed for hands-free use, which reduces the risk of cross-contamination and prevents germs from spreading.
ADA Compliant
This item meets criteria established by the Americans with Disabilities Act (ADA).
NSF/ANSI/CAN 61 (Certified by CSA)
This item is certified by CSA to meet the drinking water system component standards for Canada and the United States outlined in NSF/ANSI/CAN 61.
NSF/ANSI/CAN 372 (Certified by CSA)
This item is certified by CSA to meet the drinking water system component lead content standards for Canada and the United States outlined in NSF/ANSI/CAN 372.
1-15P
This unit comes with a NEMA 1-15P plug.
3/8" Water Connection
This unit comes with a 3/8" water connection for water supply.
