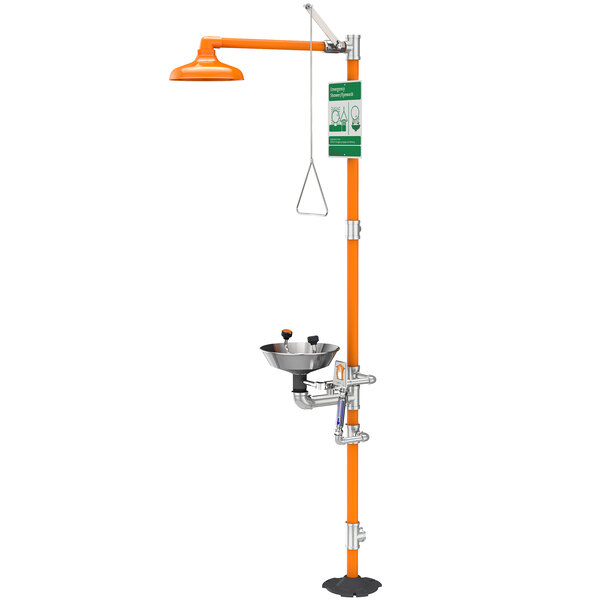

Guardian Equipment G1941 Safety Station with Eyewash and Freeze Protection Valve

Guardian Equipment G1941 Details

When working with chemicals or other hazardous materials it is vital that you have a solution for direct exposure. With the Guardian Equipment G1941 safety station with eyewash and freeze protection valve, you can greatly reduce potential workplace injury and protect workers from irreparable harm. Complete with both eyewash valves and a shower head, this safety station can handle full body rinses as well as eye flushes.

When water temperature drops below 40 degrees Fahrenheit, the freeze protection valve opens up automatically to circulate water until the temperature rises back up over 40 degrees. An ANSI-compliant identification sign mounts directly to the upright of the station for clear direction on operation. This unit is encased in a bright orange UV-resistant ABS plastic jacket that is durable and also easy to identify in an emergency. Galvanized steel schedule 40 pipes and fittings offer long lasting service life. The shower head is 10" in diameter and has a 20 GPM flow control. The shower is activated with a pull down rod that controls a stay-open ball valve that will keep the shower head on as long as it is in the downward position. A paddle right next to the eyewash valve turns on the eye flush for as long as it is pressed. Each spray head has a float-off dust cover and an internal flow control. The stainless steel wash bowl catches any excess water and funnels it to the drain line. This unit has a top mounted 1 1/4" NPT female supply inlet.

Overall Dimensions:
Height: 89"
Shower Head Diameter: 10"
Floor Flange Diameter: 9"
Pull Rod Length: 29"

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
