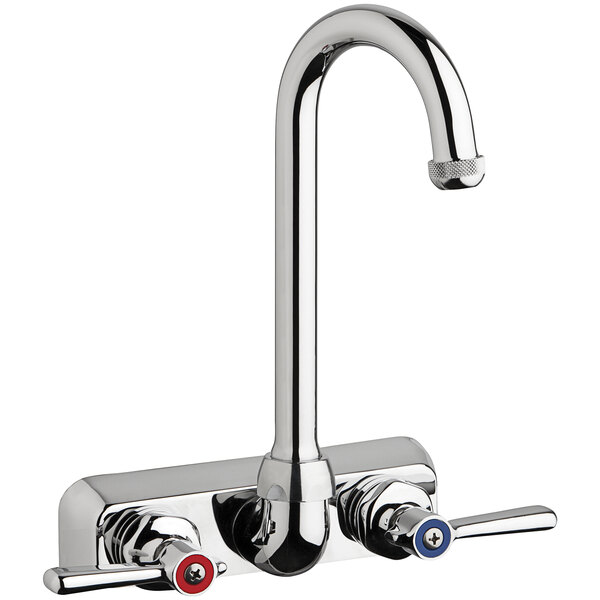

Name: Chicago Faucets W4W-GN1AE1-369ABCP Wall-Mounted Faucet with 4" Fixed Centers, 3 5/8" Gooseneck Spout, and Quixtop Outlet
Brand: Chicago Faucet Company
SKU: 8574WG1A1369AP
Price: 98.99 USD
Availability: InStock

Only

$98.99/Each

Ships free with Plus

Quick Shipping

Usually ships in 1 business day

Product Overview

Durable, cast brass construction and polished chrome finish
Stylish 3 5/8" gooseneck spout
Quixtop outlet with a single screen design that releases a full flow of water
Vandal-proof 2 3/8” lever handles are color-coded for easy identification
Control water flow and prevent leaks with the help of the ceramic 1/4-turn operating cartridges

UPC Code:611943545857

View all Chicago Faucet Company Wall Mount Faucets

Quantity: 1/Each
Shipping Weight: 3.06 lb.
Spout Length: 3 5/8 Inches
Faucet Width: 8 3/4 Inches
Faucet Height: 9 Inches
Cartridge Type: Ceramic
Faucet Centers: 4 Inches
Finish: Chrome
Handle Type: Lever
Material: Brass
Mounting Style: Wall Mounted
Mounting Type: Workboard
Pressure Rating: 125 PSI
Spout Clearance: 6 3/8 Inches
Spout Type: Gooseneck
Temperature Rating: 140 Degrees Fahrenheit
Type: Faucets
Water Inlet Size: 1/2 Inches

Customer questions about this product

What measurements do I need to install a faucet?

When installing a faucet, these are some of the most common measurements you’ll need:

Faucet Centers: If your faucet has a base with 2 inlets, measure the distance from the center of one inlet to the center of the other. This number must match the spacing of your building’s water lines (adjustable centers will help with the spacing). If mounting through the backsplash on a sink, the center measurement must also fit within the pre-drilled mounting holes.

Flex Hoses: If your faucet has flex hoses make sure that they will reach your building’s water lines.

Spout length: Make sure that the faucet spout will fit comfortably over your sink bowl and not extend too far / not far enough. If you plan to use a swing spout over a multi-bowl sink, make sure it will reach all of the bowls.

Why are the dimensions in the title different from the actual dimensions in the description?

The dimensions given in the title represent an “industry standard” – a basic size that most manufacturers produce and that people in the industry use to easily identify a type of item. However, not all manufacturers produce their products the same way. For example, a title might say 12", but the item may actually be slightly larger or smaller. We include both measurements to help you find the product you’re looking for, and so you also know how large the product actually is.

Ask your own question!

Chicago Faucet Company W4W-GN1AE1-369ABCP Details

Optimize water efficiency and regulate usage by outfitting your sink with this Chicago Faucets wall-mounted faucet with 4" fixed centers, 3 5/8" gooseneck spout, and Quixtop outlet. Designed with a 3 5/8" gooseneck spout, this faucet combines functionality with style. This unit is equipped with a Quixtop outlet with a single screen design that releases a full flow of water. With its durable, cast brass construction and polished chrome finish, this faucet has a total lead content of less than or equal to 0.25% for your safety. This unit has a rated operating pressure of 20 to 125 PSI and a rated operating temperature of 40 to 140 degrees Fahrenheit for optimal performance.

It boasts 4" fixed centers that allow it to match the centers on your sink or mounting surface with ease. Control water flow and prevent leaks with the help of the ceramic 1/4-turn operating cartridges. The hot and cold, vandal-proof 2 3/8" lever handles are color coded for easy identification. Prevent water pollution with the help of the 1/2" NPSM supply inlets. The wall-mounted design makes this model easy to install.

Overall Dimensions:
Spout Length: 3 5/8"
Faucet Height: 9"
Faucet Width: 8 3/4"

Attention CA Residents:

ADA Compliant
This item meets criteria established by the Americans with Disabilities Act (ADA).
ICC-ES ASME A112.18.1/CSA B125.1
This item has been tested by the ICC-ES to meet ASME A112.18.1/CSA B125.1 standards for plumbing fittings and fixtures.
ICC-ES Low Lead NSF/ANSI 372
This item has been tested by the ICC-ES to meet NSF/ANSI 372 standards for drinking water lead content.
U.S. Green Building Council (USGBC)
This company is a certified USGBC member. The USGBC is an organization that promotes sustainable building practices, including saving energy, using fewer resources, and reducing waste.
ICC-ES Drinking Water NSF/ANSI 61, Section 9
This item has been tested by the ICC-ES to meet NSF/ANSI 61, Section 9 standards for drinking water.
1/2" Water Connection
This unit comes with a 1/2" water connection for water supply.
