Name: Chicago Faucets 786-E72XKABCP 0.5 GPM Deck-Mounted Faucet with 5 1/4" Rigid / Swing Gooseneck Spout and Laminar Flow Outlet
Brand: Chicago Faucet Company
SKU: 857786E72XKP
Price: 386.49 USD
Availability: LimitedAvailability

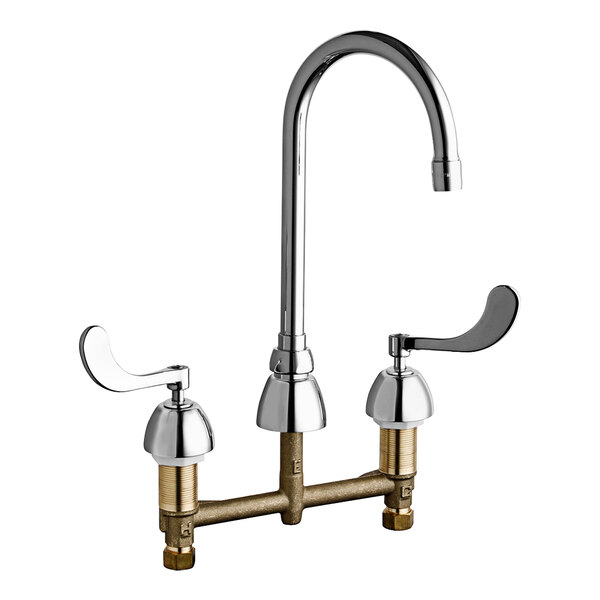

A Chicago Faucets chrome deck-mounted faucet with two handles and a gooseneck spout.

Only

$386.49/Each

Ships free with Plus

Earn up to $11.59 back (1,159 points)with a Webstaurant Rewards Visa® Credit Card

Special Order Shipping

An estimated delivery date will be provided after placing the order

Product Overview

Durable, cast brass construction and polished chrome finish
Stylish 5 1/4" rigid / swing gooseneck spout
Pressure compensating non-aerating laminar flow outlet releases water at 0.5 GPM
Ceramic 1/4-turn operating cartridges control water flow and prevent leaks
Vandal-proof 4" wristblade handles are color coded for easy identification

UPC Code:400016338829

View all Chicago Faucet Company Medical Faucets

Quantity: 1/Each
Shipping Weight: 5.01 lb.
Spout Length: 5 3/8 Inches
Faucet Width: 16 Inches
Faucet Height: 11 5/8 Inches
Cartridge Type: Ceramic
Faucet Centers: 8 Inches
Finish: Chrome
Flow Rate: 0.5 GPM
Handle Type: Wrist
Material: Brass
Mounting Style: Deck Mounted
Mounting Type: Concealed Base
Pressure Rating: 20 - 125 PSI
Spout Clearance: 7 1/2 Inches
Spout Type: Gooseneck
Temperature Rating: 40 - 140 Degrees Fahrenheit
Type: Faucets
Water Inlet Size: 1/2 Inches

Customer questions about this product

What measurements do I need to install a faucet?

When installing a faucet, these are some of the most common measurements you’ll need:

Faucet Centers: If your faucet has a base with 2 inlets, measure the distance from the center of one inlet to the center of the other. This number must match the spacing of your building’s water lines (adjustable centers will help with the spacing). If mounting through the backsplash on a sink, the center measurement must also fit within the pre-drilled mounting holes.

Flex Hoses: If your faucet has flex hoses make sure that they will reach your building’s water lines.

Spout length: Make sure that the faucet spout will fit comfortably over your sink bowl and not extend too far / not far enough. If you plan to use a swing spout over a multi-bowl sink, make sure it will reach all of the bowls.

Why are the dimensions in the title different from the actual dimensions in the description?

The dimensions given in the title represent an “industry standard” – a basic size that most manufacturers produce and that people in the industry use to easily identify a type of item. However, not all manufacturers produce their products the same way. For example, a title might say 12", but the item may actually be slightly larger or smaller. We include both measurements to help you find the product you’re looking for, and so you also know how large the product actually is.

Ask your own question!

Chicago Faucet Company 786-E72XKABCP Details

Optimize water efficiency and regulate usage by outfitting your sink with this Chicago Faucets 0.5 GPM deck-mounted faucet with 5 1/4" rigid / swing gooseneck spout and laminar flow outlet. Designed with a 5 1/4" rigid / swing gooseneck spout, this faucet combines functionality with style. This unit is equipped with a pressure compensating non-aerating laminar flow outlet that releases water at 0.5 GPM. This unit has a rated operating pressure of 20 to 125 PSI and a rated operating temperature of 40 to 140 degrees Fahrenheit for optimal performance. With its durable, cast brass construction and polished chrome finish, this faucet has a total lead content of less than or equal to 0.25% for your safety.

It boasts 8" fixed centers that allow it to match the centers on your sink or mounting surface with ease. The hot and cold, vandal-proof 4" wristblade handles are color coded for easy identification. Control water flow and prevent leaks with the help of the ceramic 1/4-turn operating cartridges. The deck-mounted design is easy to install, and it uses 1/2" NPSM supply inlets and a coupling nut suitable for 3/8" or 1/2" risers.

Overall Dimensions:
Spout Length: 5 3/8"
Faucet Height: 11 5/8"
Faucet Width: 16"

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

U.S. Green Building Council (USGBC)
This company is a certified USGBC member. The USGBC is an organization that promotes sustainable building practices, including saving energy, using fewer resources, and reducing waste.
Buy American Act Compliant
This product complies with the provisions of the Buy American Act.
ICC-ES ASME A112.18.1/CSA B125.1
This item has been tested by the ICC-ES to meet ASME A112.18.1/CSA B125.1 standards for plumbing fittings and fixtures.
ICC-ES Low Lead NSF/ANSI 372
This item has been tested by the ICC-ES to meet NSF/ANSI 372 standards for drinking water lead content.
ICC-ES Drinking Water NSF/ANSI 61, Section 9
This item has been tested by the ICC-ES to meet NSF/ANSI 61, Section 9 standards for drinking water.
ADA Compliant
This item meets criteria established by the Americans with Disabilities Act (ADA).
1/2" Water Connection
This unit comes with a 1/2" water connection for water supply.
