Name: Chicago Faucets 540-LDDJ24ABCP Wall-Mounted Faucet with Adjustable Centers, 24" Double-Jointed Swing Spout, and Quixtop Outlet
Brand: Chicago Faucet Company
SKU: 857540LDJ24AC
Price: 252.49 USD
Availability: LimitedAvailability

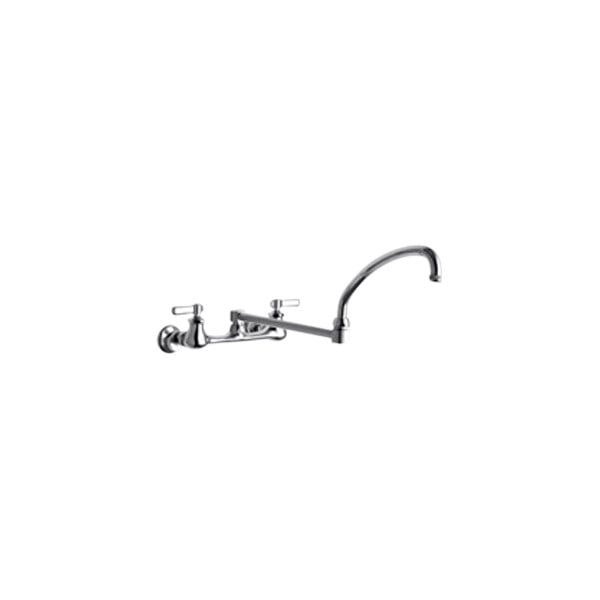

A close-up of a chrome Chicago Faucets wall-mounted faucet with a handle.

Only

$252.49/Each

Ships free with Plus

Earn up to $7.57 back (757 points)with a Webstaurant Rewards Visa® Credit Card

Special Order Shipping

An estimated delivery date will be provided after placing the order

Product Overview

Durable, cast brass construction and polished chrome finish
Stylish 24” double-jointed swing spout
Hot and cold, vandal-proof 2 3/8” lever-style handles are color coded for easy identification
Quixtop outlet with a single screen design that releases a full flow of water
Quaturn compression cartridges control water flow and prevent leaks

UPC Code:611943549381

View all Chicago Faucet Company Wall Mount Faucets

Quantity: 1/Each
Shipping Weight: 5.57 lb.
Spout Length: 23 3/4 Inches
Faucet Width: 12 3/4 Inches
Faucet Height: 7 1/8 Inches
Cartridge Type: Compression
Faucet Centers: 8 Inches
Finish: Chrome
Handle Type: Lever
Material: Brass
Mounting Style: Wall Mounted
Mounting Type: Adjustable
Pressure Rating: 125 PSI
Spout Clearance: 5 1/4 Inches
Spout Type: Double Jointed
Temperature Rating: 140 Degrees Fahrenheit
Type: Faucets
Water Inlet Size: 1/2 Inches

Customer questions about this product

What measurements do I need to install a faucet?

When installing a faucet, these are some of the most common measurements you’ll need:

Faucet Centers: If your faucet has a base with 2 inlets, measure the distance from the center of one inlet to the center of the other. This number must match the spacing of your building’s water lines (adjustable centers will help with the spacing). If mounting through the backsplash on a sink, the center measurement must also fit within the pre-drilled mounting holes.

Flex Hoses: If your faucet has flex hoses make sure that they will reach your building’s water lines.

Spout length: Make sure that the faucet spout will fit comfortably over your sink bowl and not extend too far / not far enough. If you plan to use a swing spout over a multi-bowl sink, make sure it will reach all of the bowls.

Why are the dimensions in the title different from the actual dimensions in the description?

The dimensions given in the title represent an “industry standard” – a basic size that most manufacturers produce and that people in the industry use to easily identify a type of item. However, not all manufacturers produce their products the same way. For example, a title might say 12", but the item may actually be slightly larger or smaller. We include both measurements to help you find the product you’re looking for, and so you also know how large the product actually is.

Ask your own question!

Chicago Faucet Company 540-LDDJ24ABCP Details

Optimize water efficiency and regulate usage by outfitting your sink with this Chicago Faucets wall-mounted faucet with adjustable centers, 24" double-jointed swing spout, and quixtop outlet. Designed with a 24" double-jointed swing spout, this faucet combines functionality with style. This unit is equipped with a Quixtop outlet with a single screen design that releases a full flow of water. This unit has a rated operating pressure of 20 to 125 PSI and a rated operating temperature of 40 to 140 degrees Fahrenheit for optimal performance. With its durable, cast brass construction and polished chrome finish, this faucet has a total lead content of less than or equal to 0.25% for your safety.

It boasts an 8" body, adjustable arms, and 7 1/4" to 8 3/4" adjustable centers that allow it to match the centers on your sink or mounting surface with ease. The hot and cold, vandal-proof 2 3/8" lever-style handles are color coded for easy identification. Control water flow and avoid leaks with the help of the Quaturn compression operating cartridges. Prevent water pollution with the help of the 1/2" NPT female thread inlet. The wall-mounted design is easy to install, and it uses a 3/8" offset inlet supply arm.

Overall Dimensions:
Spout Length: 23 3/4"
Faucet Height: 7 1/8"
Faucet Width: 12 3/4"

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

U.S. Green Building Council (USGBC)
This company is a certified USGBC member. The USGBC is an organization that promotes sustainable building practices, including saving energy, using fewer resources, and reducing waste.
ICC-ES ASME A112.18.1/CSA B125.1
This item has been tested by the ICC-ES to meet ASME A112.18.1/CSA B125.1 standards for plumbing fittings and fixtures.
Buy American Act Compliant
This product complies with the provisions of the Buy American Act.
ICC-ES Low Lead NSF/ANSI 372
This item has been tested by the ICC-ES to meet NSF/ANSI 372 standards for drinking water lead content.
ICC-ES Drinking Water NSF/ANSI 61, Section 9
This item has been tested by the ICC-ES to meet NSF/ANSI 61, Section 9 standards for drinking water.
ADA Compliant
This item meets criteria established by the Americans with Disabilities Act (ADA).
1/2" Water Connection
This unit comes with a 1/2" water connection for water supply.
